Renault Clio: B-pillar trim: Removal - Refitting
Renault Clio III (2005-2013) Service Manual / Trim And Upholstery / Body Internal Trim / B-pillar trim: Removal - Refitting
B85
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Move the seats fully forward.

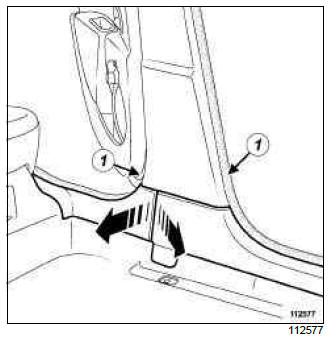

- Partially remove the frame seals (1).
- Partially unclip the front and rear door sill trims.
II - REMOVAL OF PART CONCERNED

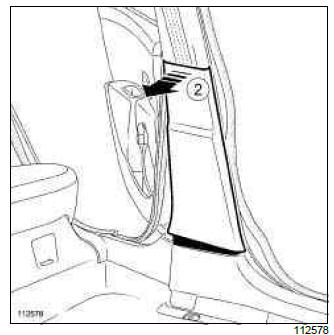

- Unclip the B-pillar lower trim at (2).

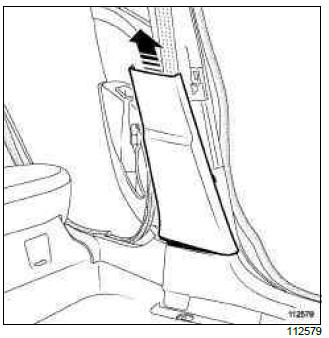

- Remove the B-pillar lower trim.
- Unclip bolt cover.

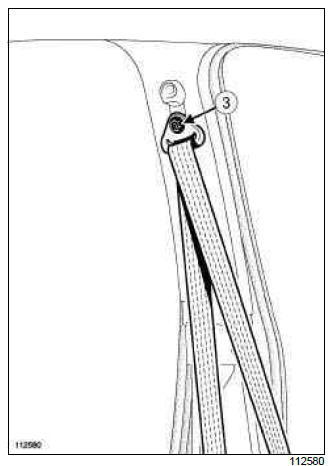

- Remove the bolt (3).

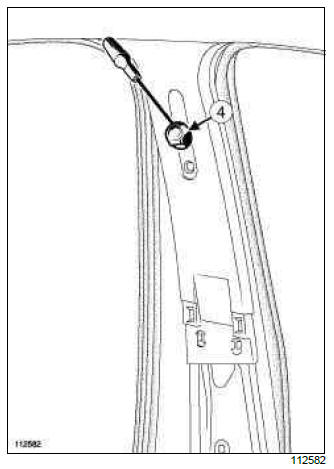

- Use a flat-blade screwdriver to unclip the height adjustment control (4).

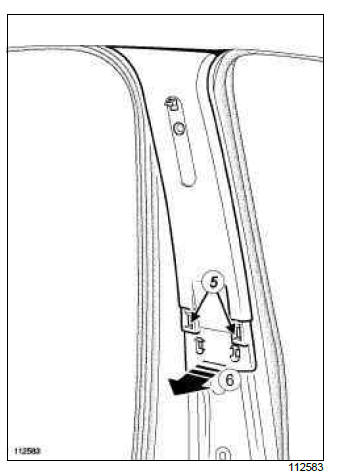

- Unclip (5) the B-pillar upper trim (6).

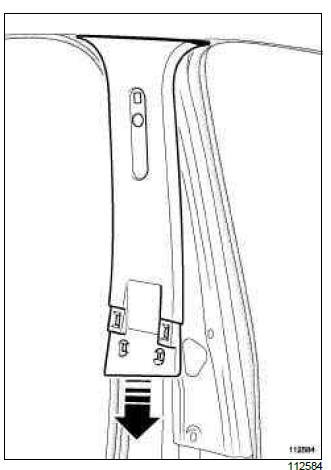

- Remove the upper trim.
REFITTING
I - REFITTING OPERATION FOR PART CONCERNED
- Reclip:
- the B-pillar upper trim,
- the height adjustment device.
- Torque tighten the seat belt bolt (21 Nm).
- Reattach the B-pillar lower trim.
II - FINAL OPERATION.
- Refit the front and rear door sill trims.
- Refit the frame seals.
