Renault Clio: Emergency spare wheel
Renault Clio IV (2014-2019) Owners Manual / Practical advice / Puncture, emergency spare wheel / Emergency spare wheel
- Open the tailgate;
- lift the carpet;

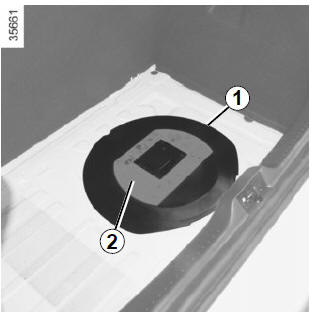

- lift the cover 1 and remove it;
- remove the tool kit by lifting it by its handles;
| The label 2 reminds you of how to operate the emergency spare wheel winch. |

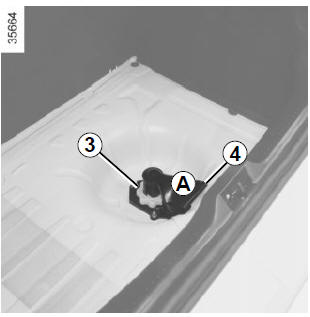

- unscrew nut 3 in an anti-clockwise
direction until it comes off completely,
then place the palm of your
hand on section A of handle 4 and
push towards the front of the vehicle.
The wheel will be lowered;
| When you push handle 4,
the wheel will drop under
the vehicle; risk of injury. Ensure that everybody is kept away from the underside of the vehicle. |
- pull the wheel towards you;

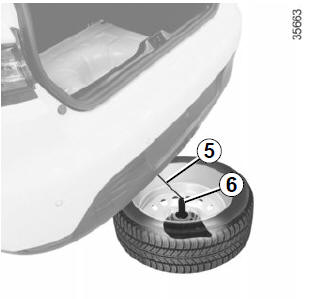

- lay the wheel down flat and unfasten cable 5 from its housing 6.
You may remove the wheel from its support.
| Do not touch the exhaust as it could burn. |
