Renault Clio: Exhaust: List and location of components

Renault Clio III (2005-2013) Service Manual / Engine And Peripherals / Exhaust / Exhaust: List and location of components

PIPE ASSEMBLY

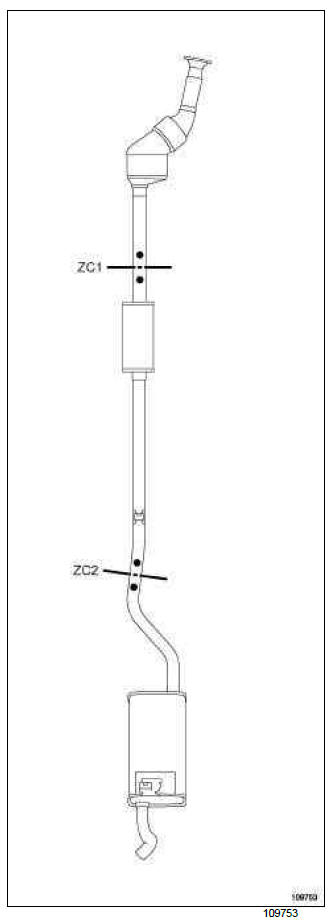

D4F, and 740 or 742 or 764

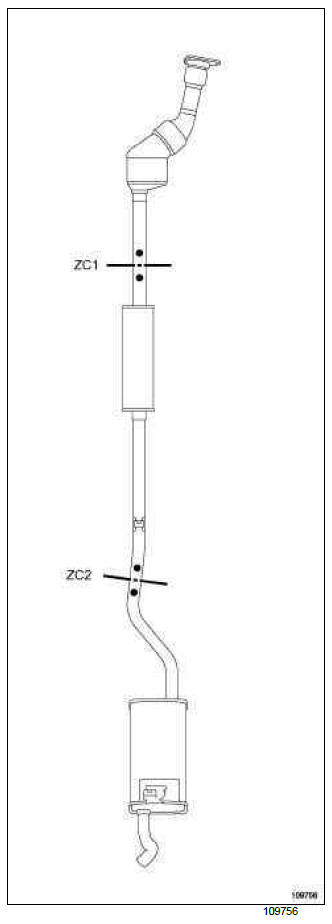

Renault Clio. Exhaust: List and location of components

(ZC1) cutting area between the catalytic converter and the expansion chamber
(ZC2) cutting area between the expansion chamber and the silencer

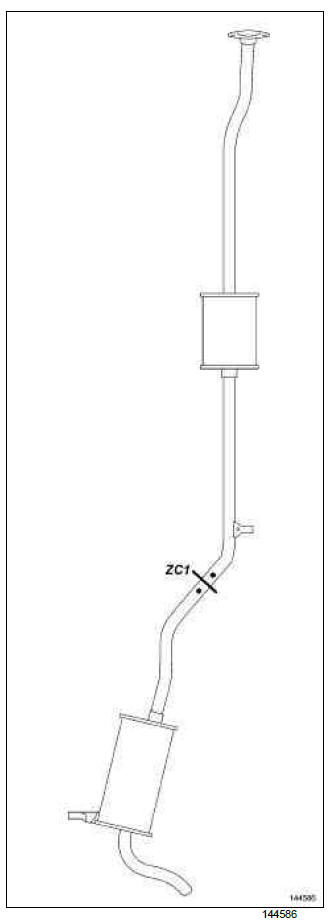

D4F, and 784 or 786

Renault Clio. Exhaust: List and location of components

(ZC1) cutting area between the expansion chamber and the silencer

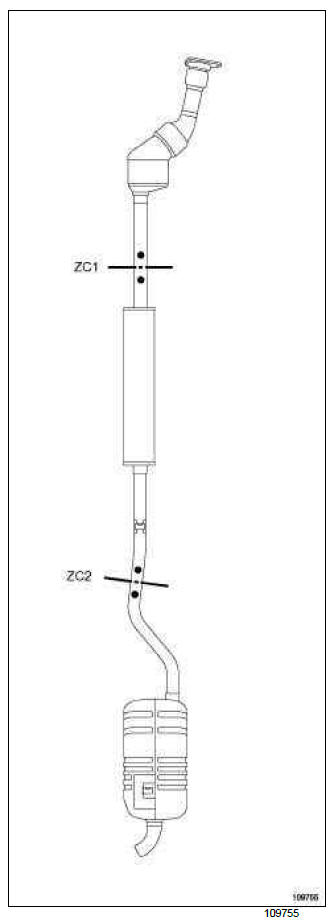

K4J

Renault Clio. Exhaust: List and location of components

(ZC1) cutting area between the catalytic converter and the expansion chamber
(ZC2) cutting area between the expansion chamber and the silencer

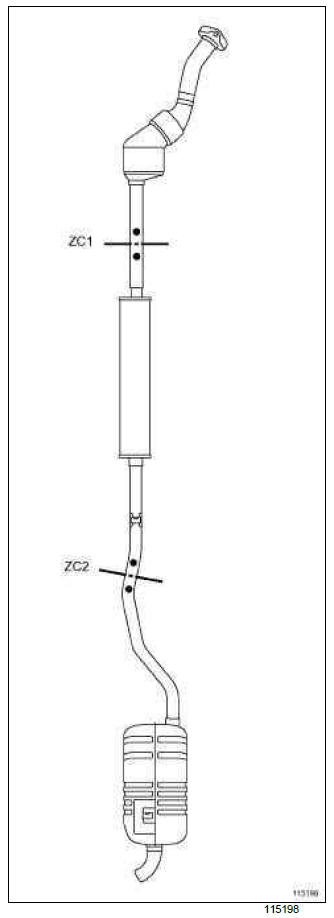

K4M

Renault Clio. Exhaust: List and location of components

(ZC1) cutting area between the catalytic converter and the expansion chamber
(ZC2) cutting area between the expansion chamber and the silencer

M4R

Renault Clio. Exhaust: List and location of components

(ZC1) cutting area between the catalytic converter and the expansion chamber
(ZC2) cutting area between the expansion chamber and the silencer

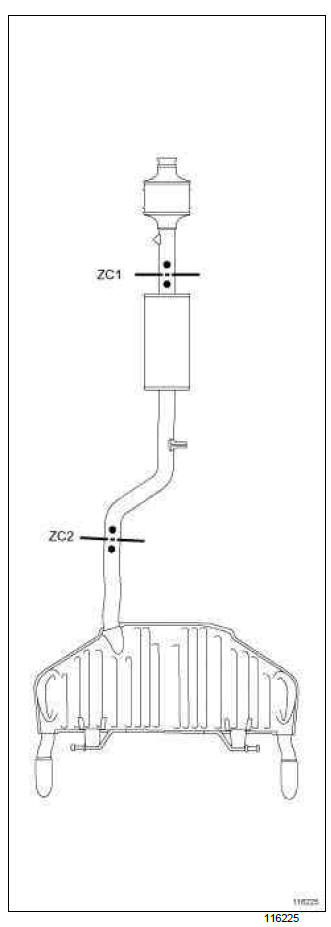

F4R

Renault Clio. Exhaust: List and location of components

(ZC1) cutting area between the catalytic converter integrated into the exhaust pipe and the expansion chamber
(ZC2) cutting area between the expansion chamber and the silencer

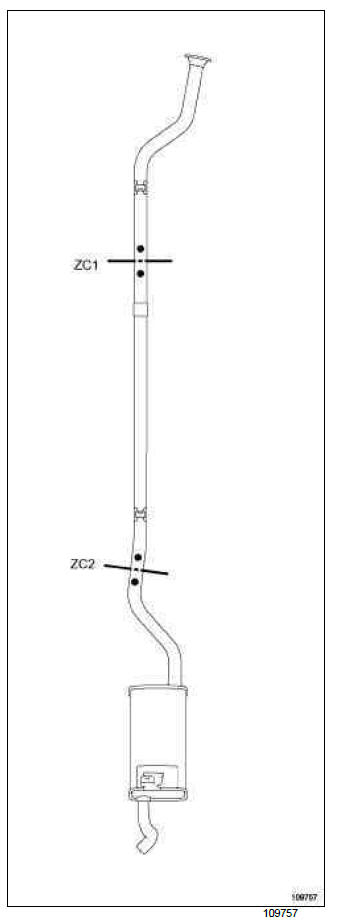

K9K, and 764

Renault Clio. Exhaust: List and location of components

(ZC1) cutting area between the expansion chamber inlet pipe and the expansion chamber
(ZC2) cutting area between the expansion chamber and the silencer

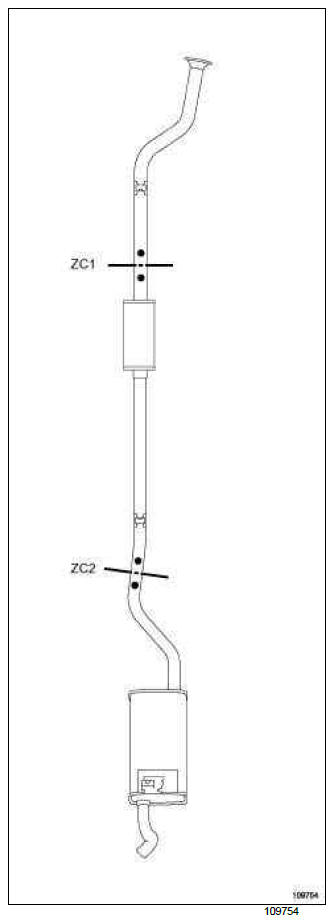

K9K, and 750 or 752 or 760 or 762 or 766 or 768

Renault Clio. Exhaust: List and location of components

(ZC1) cutting area between the intermediate pipe inlet pipe and the intermediate pipe
(ZC2) cutting area between the intermediate pipe and the silencer

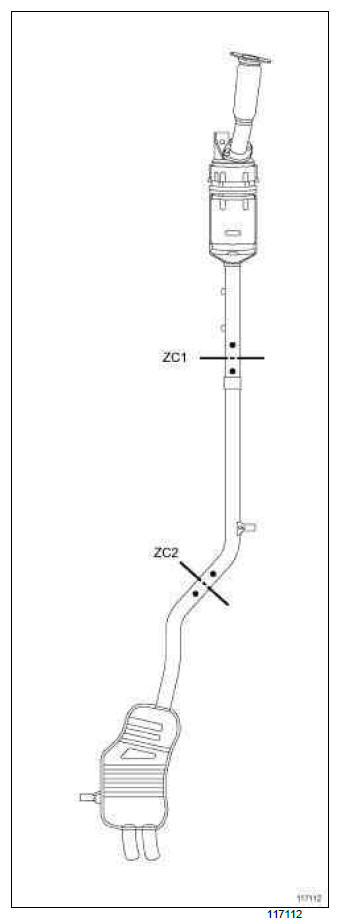

K9K, and 772

Renault Clio. Exhaust: List and location of components

(ZC1) cutting area between the particle filter and the intermediate pipe
(ZC2) cutting area between the intermediate pipe and the silencer
