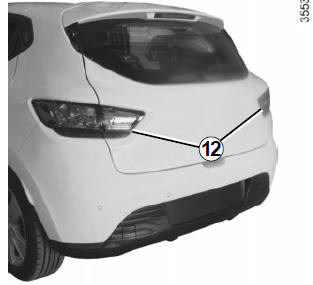

Reversing lights and rear fog lights 12
Open the boot lid.

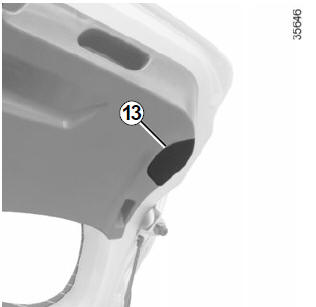

Unclip cover 13 and remove it.

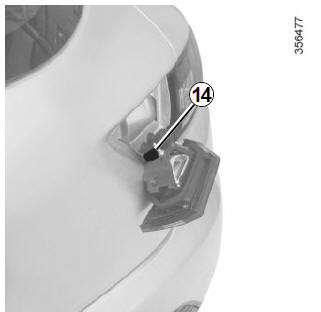

Turn bulb holder 14 fully anticlockwise and change the bulb.
To reassemble, proceed in the reverse order to removal.
When the bulb has been changed, make sure you refit the cover 13 correctly.
Reversing lights Bulb type: H21.
Rear fog lights Bulb type: H21.

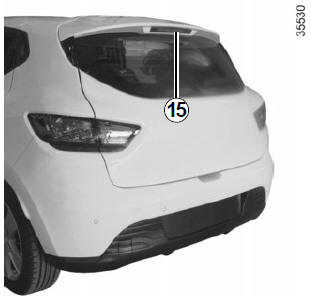

High-level brake light 15
Consult an approved dealer.
| The bulbs are under pressure
and can break when
replaced. Risk of injury. |

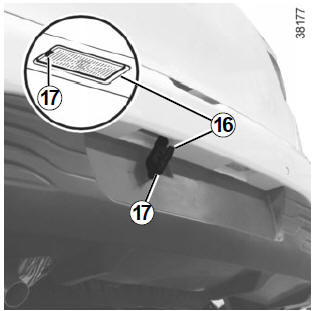

Number plate lights 16
- Unclip light 16 by pressing tab 17;
- remove the light cover to gain access to the bulb.
Bulb type: W5W.

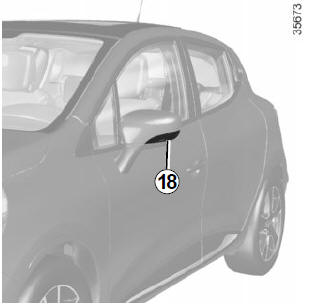

Side indicator lights 18
Consult an approved dealer.
