Renault Clio: Front wheel arch liner: Removal - Refitting
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 392, 02A, Lifting equipment).
- Remove the front wheel (see Wheel: Removal - Refitting)
(MR 392, 35A, Wheels and tyres).
II - OPERATION FOR REMOVAL OF PART
CONCERNED

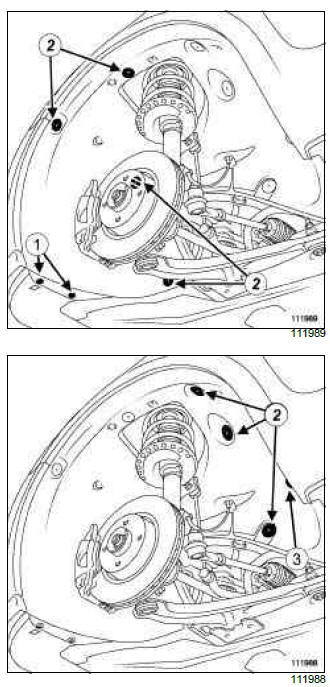

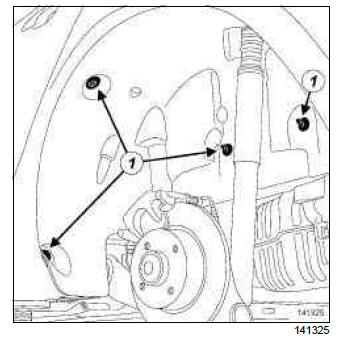

- Remove the bolts (1).
- Remove the clips (2).
- Remove:

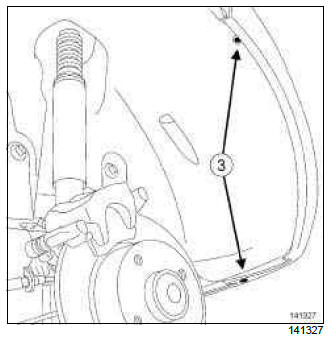

- the bolt (3),
- the front wheel arch liner starting at the front section.
REFITTING
I - REFITTING PREPARATION OPERATION
- Check the condition of the clips and replace them if
necessary.
II - REFITTING OPERATION FOR PART
CONCERNED
- Refit:
- the front wheel arch liner starting at the rear section,
- the clips,
- the bolts.
III - FINAL OPERATION.
- Refit the front wheel (see Wheel: Removal - Refitting)
(MR 392, 35A, Wheels and tyres).
Rear wheel arch liner: Removal - Refitting
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
- Remove the rear wheel (see Wheel: Removal - Refitting)
(35A, Wheels and tyres).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
B85 or C85 or S85, and EQUIPMENT LEVEL E3
LEISURE or EQUIPMENT LEVEL EA1 or EQUIPMENT
LEVEL EA2 or EQUIPMENT LEVEL EA3 or
EQUIPMENT LEVEL EA4 or EQUIPMENT LEVEL
EA5 or EQUIPMENT LEVEL EAC or EQUIPMENT
LEVEL SPORT
- Remove:

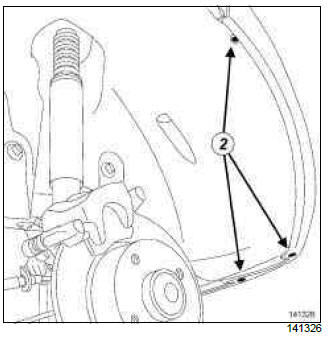

- the bolts (2),
- the rear wheel arch liner.
K85, and EQUIPMENT LEVEL EAC or EQUIPMENT
LEVEL SPORT
- Remove:
- the bolts (3),
- the rear wheel arch liner.
EQUIPMENT LEVEL EAG
- Remove:

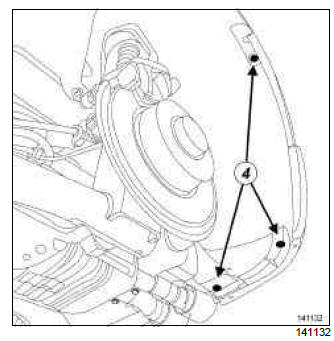

- the bolts (4),
- the rear wheel arch liner.
REFITTING
I - REFITTING PREPARATION OPERATION
- Check the condition of the clipsand replace them if
necessary.
II - REFITTING OPERATION FOR PART
CONCERNED
- Refit:
- the rear wheel arch liner,
- the bolts,
- the clips.
III - FINAL OPERATION
- Refit the rear wheel (see Wheel: Removal - Refitting)
(35A, Wheels and tyres).
