Renault Clio: General Vehicle Information

Renault Clio III (2005-2013) Service Manual / General Vehicle Information

Vehicle Mechanical Specifications

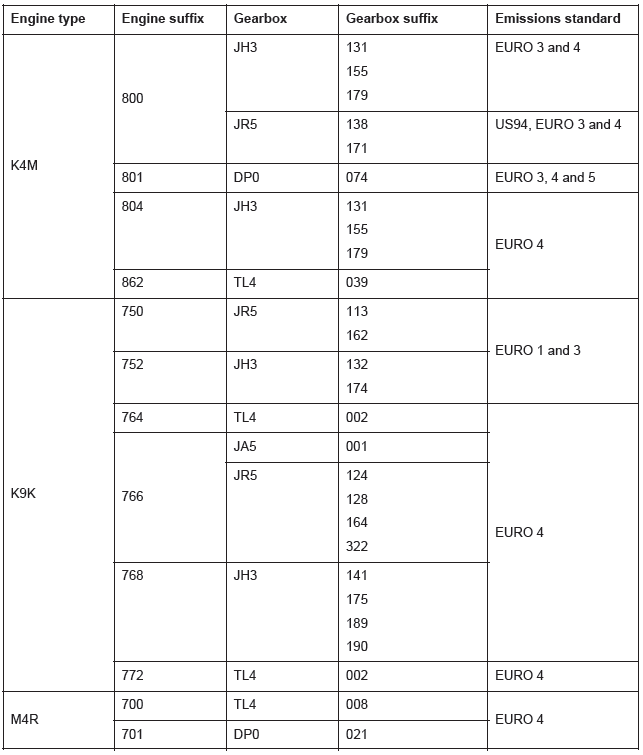

Vehicle: Specifications

B85 or C85 or S85

Renault Clio. Vehicle Bodywork Specifications

K85

Renault Clio. Vehicle Bodywork Specifications

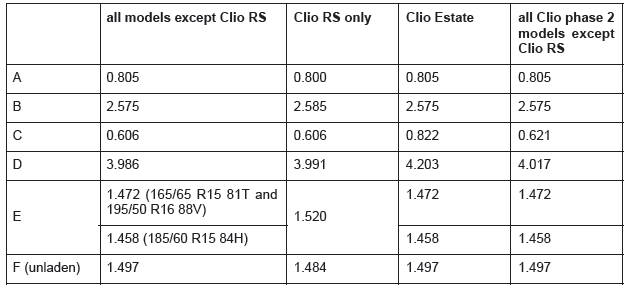

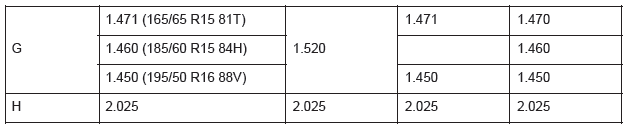

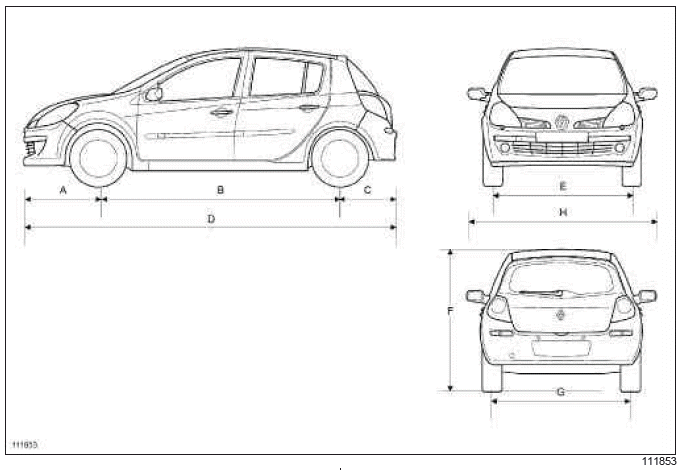

Dimensions in metres :

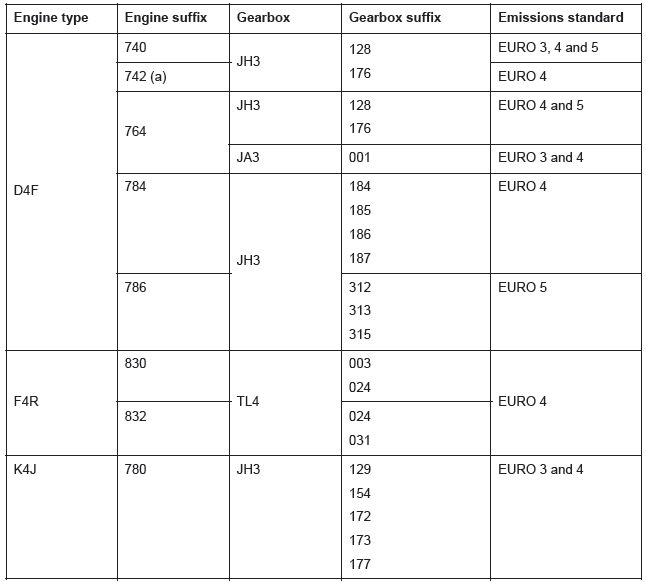

Renault Clio. Vehicle Mechanical Specifications

Renault Clio. Vehicle Mechanical Specifications

Renault Clio. Vehicle Mechanical Specifications

Renault Clio. Vehicle Mechanical Specifications

a: Engine running on an ethanol/petrol mixture.

Vehicle Bodywork Specifications

Vehicle: Identification

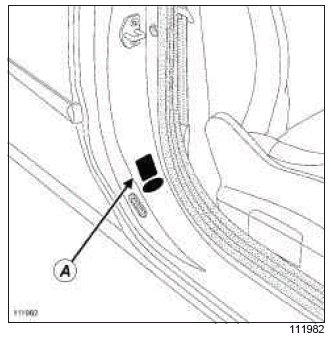

I - LOCATIONS OF THE VEHICLE IDENTIFICATION PLATE

C85 or S85

Renault Clio. Vehicle Bodywork Specifications

B85 or K85

Renault Clio. Vehicle Bodywork Specifications

Renault Clio. Vehicle Bodywork Specifications

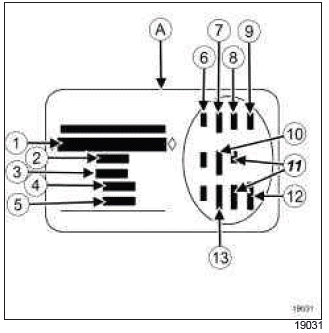

Plate (A):

Renault Clio. Vehicle Bodywork Specifications

  1. Vehicle type mine and type number; this information also appears on marking (B)
  2. MGVW (Maximum Gross Vehicle Weight)
  3. GTW (Gross train weight, vehicle under load with trailer)
  4. Maximum permissible front axle load
  5. Maximum permissible rear axle load
  6. Vehicle technical specifications
  7. Paintwork reference number
  8. Equipment level
  9. Vehicle type
  10. Upholstery code
  11. Additional equipment details
  12. Fabrication number
  13. Interior trim code

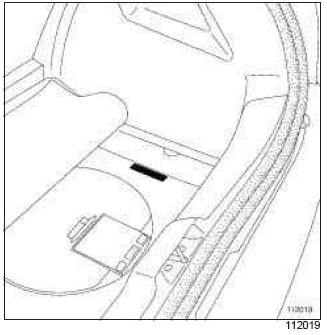

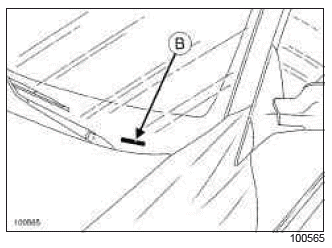

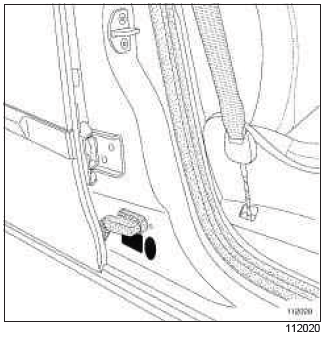

II - COLD-MARKING OF THE BODY

Renault Clio. Vehicle Bodywork Specifications

Note: If the complete body is being replaced, it must be marked in compliance with the current regulations.

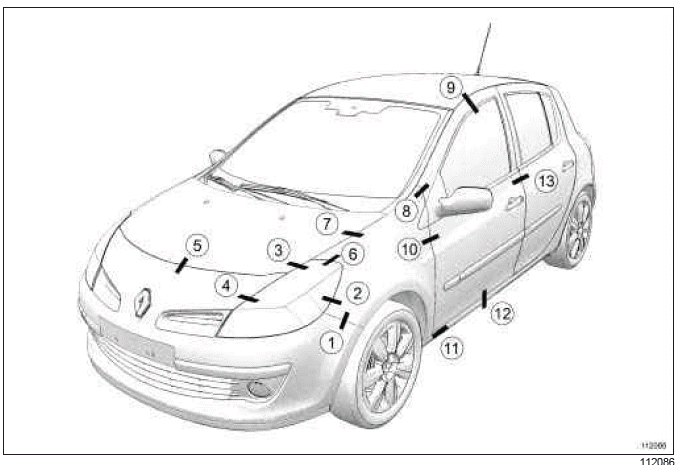

Vehicle panel gaps: Adjustment value

Renault Clio. Vehicle Bodywork Specifications

WARNING

The clearance values are given for information purposes.

Certain rules have to be followed when clearances are adjusted:

All values are given in millimetres.

Section 1

Renault Clio. Vehicle Bodywork Specifications

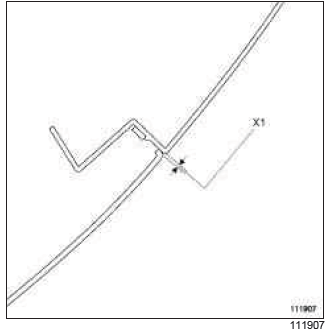

(X1) = 0.75 mm +- 0.75

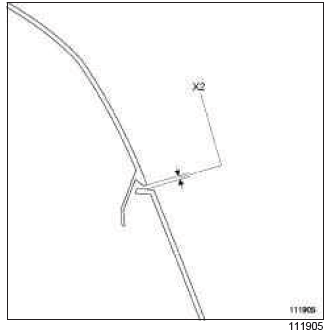

Section 2

Renault Clio. Vehicle Bodywork Specifications

(X2) = 2 mm +- 1

Section 3

Renault Clio. Vehicle Bodywork Specifications

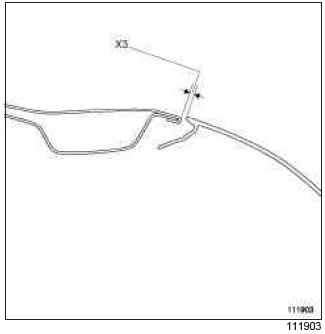

(X3) = 3.5 mm +- 1.5

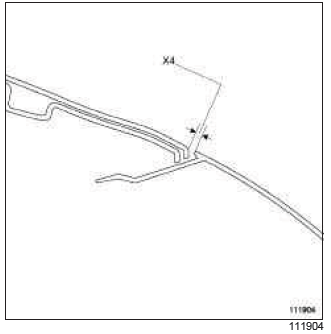

Section 4

Renault Clio. Vehicle Bodywork Specifications

(X4) = 3.4 mm +- 1.5

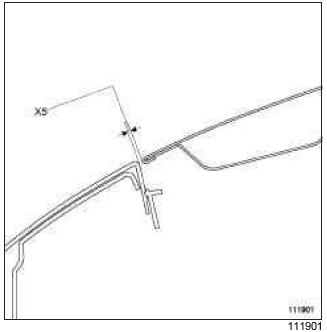

Section 5

Renault Clio. Vehicle Bodywork Specifications

(X5) = 3.5 mm +- 1.5

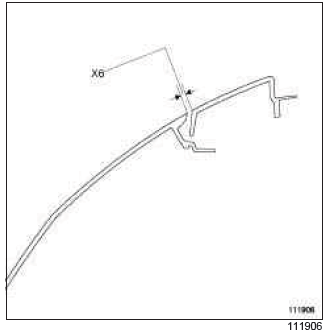

Section 6

Renault Clio. Vehicle Bodywork Specifications

(X6) = 2 mm +- 1

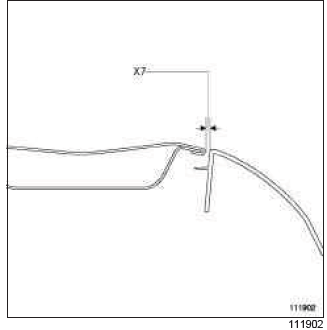

Section 7

Renault Clio. Vehicle Bodywork Specifications

(X7) = 3.5 mm +- 1.2

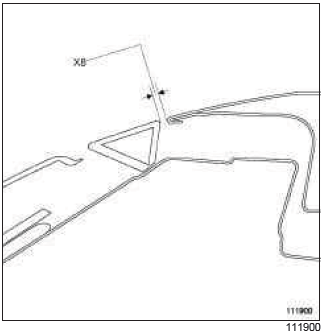

Section 8

Renault Clio. Vehicle Bodywork Specifications

(X8) = 4 mm +- 1

Section 9

Renault Clio. Vehicle Bodywork Specifications

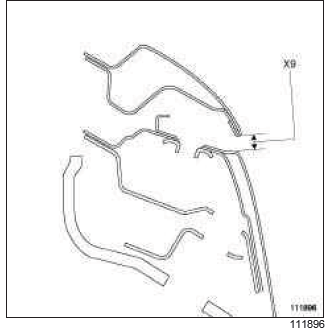

(X9) = 6mm +- 1

Section 10

Renault Clio. Vehicle Bodywork Specifications

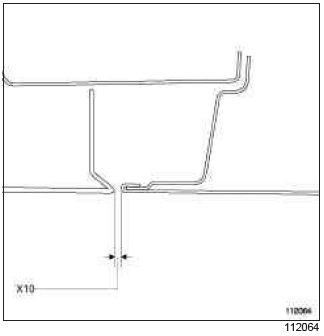

(X10) = 4 mm +- 1

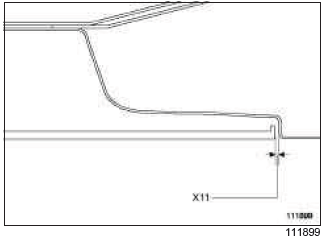

Section 11

Renault Clio. Vehicle Bodywork Specifications

(X11) = 4.2 mm +- 1.5

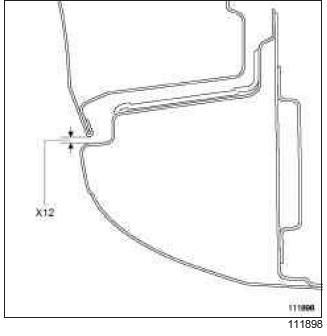

Section 12

Renault Clio. Vehicle Bodywork Specifications

(X12) = 3mm +- 1

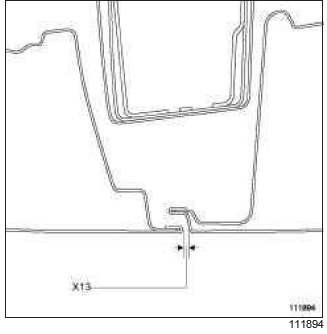

Section 13

Renault Clio. Vehicle Bodywork Specifications

(X13) = 4.5 mm +- 1.5

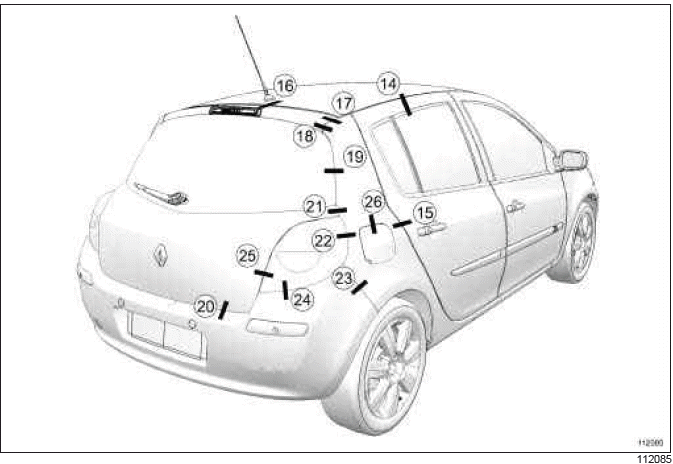

B85 or C85 or S85

Renault Clio. Vehicle Bodywork Specifications

B85

Section 14

Renault Clio. Vehicle Bodywork Specifications

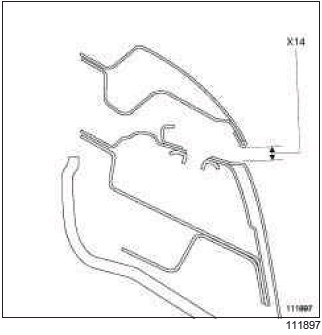

(X14) = 6 mm +- 2

Section 15

Renault Clio. Vehicle Bodywork Specifications

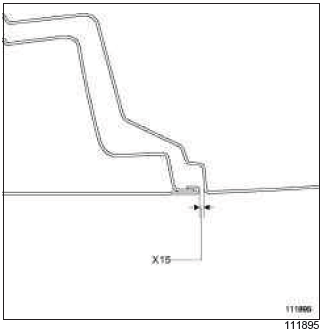

(X15) = 4 mm +- 1

B85 or C85 or S85

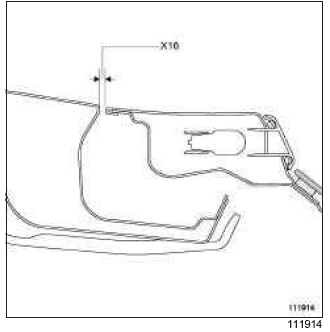

Section 16

Renault Clio. Vehicle Bodywork Specifications

(X16) = 5 mm +- 1

Section 17

Renault Clio. Vehicle Bodywork Specifications

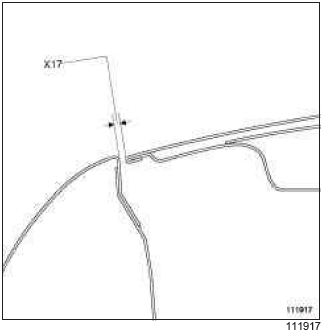

(X17) = 4.3 mm +- 1.5

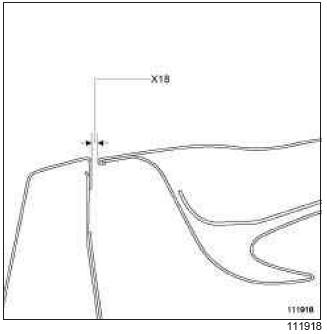

Section 18

Renault Clio. Vehicle Bodywork Specifications

(X18) = 4 mm +- 1.5

Section 19

Renault Clio. Vehicle Bodywork Specifications

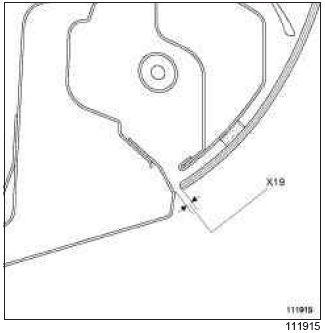

(X19) = 4 mm +- 2

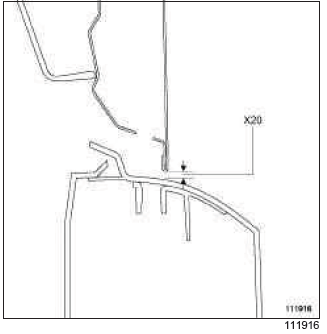

Section 20

Renault Clio. Vehicle Bodywork Specifications

(X20) = 5 mm +- 2

Section 21

Renault Clio. Vehicle Bodywork Specifications

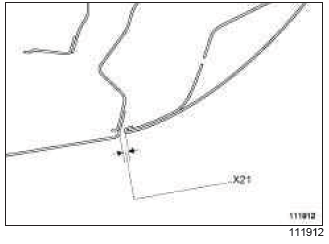

(X21) = 4 mm +- 2

Section 22

Renault Clio. Vehicle Bodywork Specifications

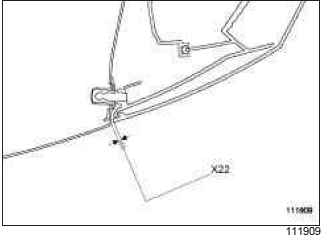

(X22) = 1.5 mm +- 1

Section 23

Renault Clio. Vehicle Bodywork Specifications

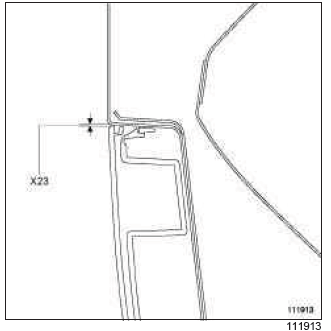

(X23) = 0.75 mm +- 0.75

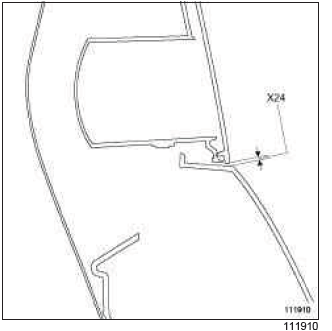

Section 24

Renault Clio. Vehicle Bodywork Specifications

(X24) = 1.5 mm +- 1

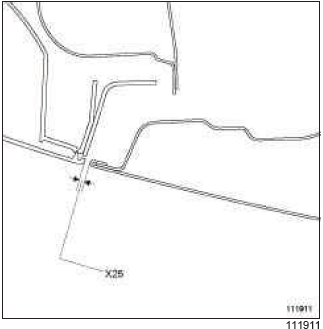

Section 25

Renault Clio. Vehicle Bodywork Specifications

(X25) = 4 mm +- 2

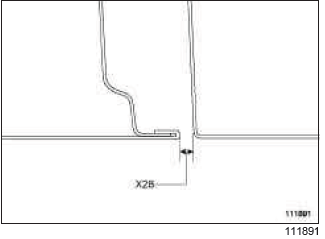

Section 26

Renault Clio. Vehicle Bodywork Specifications

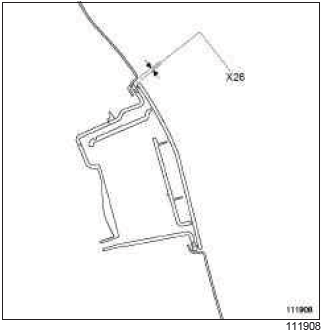

(X26) = 2.5 mm +- 1

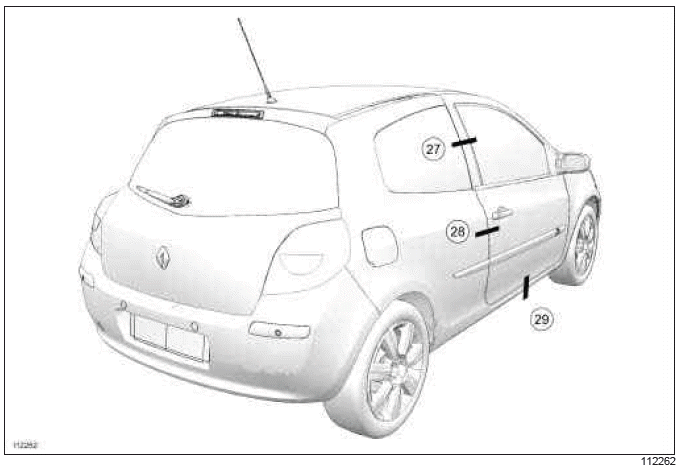

C85 or S85

Renault Clio. Vehicle Bodywork Specifications

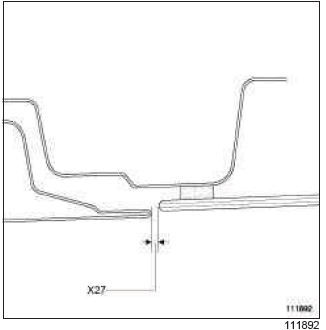

Section 27

Renault Clio. Vehicle Bodywork Specifications

(X27) = 4 mm +- 1.5

Section 28

Renault Clio. Vehicle Bodywork Specifications

(X28) = 4 mm +- 1.3

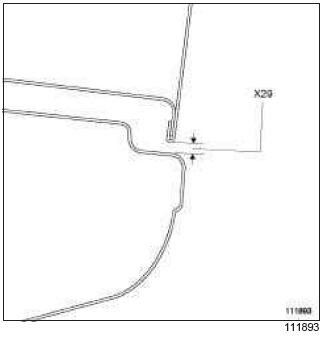

Section 29

Renault Clio. Vehicle Bodywork Specifications

(X29) = 4.5 mm

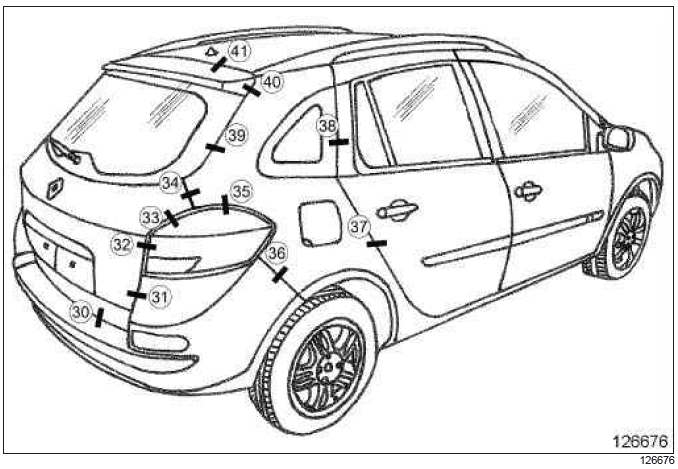

K85

Renault Clio. Vehicle Bodywork Specifications

Section 30

Renault Clio. Vehicle Bodywork Specifications

(30) = 6 mm +- 2.5

Section 31

Renault Clio. Vehicle Bodywork Specifications

(31) = 4 mm +- 2

Section 32

Renault Clio. Vehicle Bodywork Specifications

(32) = 4 mm +- 2

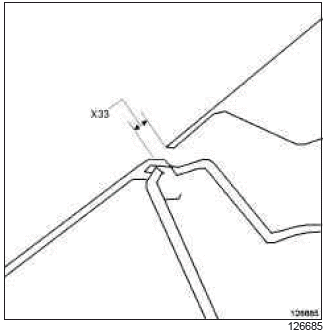

Section 33

Renault Clio. Vehicle Bodywork Specifications

(33) = 4 mm +- 2

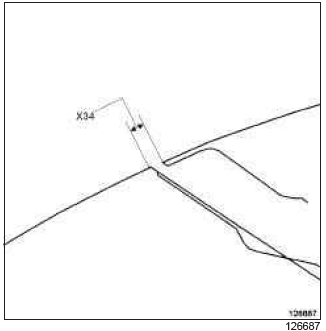

Section 34

Renault Clio. Vehicle Bodywork Specifications

(34) = 4.3 mm +- 2

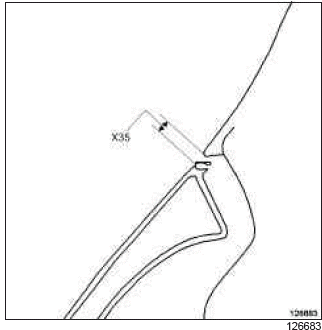

Section 35

Renault Clio. Vehicle Bodywork Specifications

(35) = 1.5 mm +- 1

Section 36

Renault Clio. Vehicle Bodywork Specifications

(36) = 0.5 mm +- 1

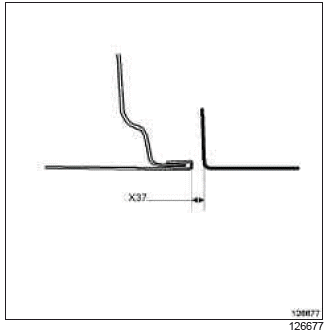

Section 37

Renault Clio. Vehicle Bodywork Specifications

(37) = 4 mm +- 1.5

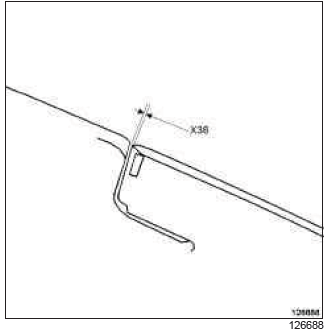

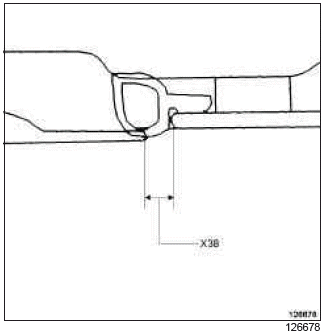

Section 38

Renault Clio. Vehicle Bodywork Specifications

(38) = 4 mm +- 2.3

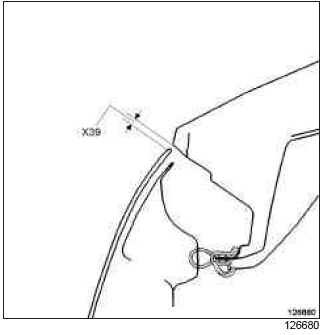

Section 39

Renault Clio. Vehicle Bodywork Specifications

(39) = 4 mm +- 2

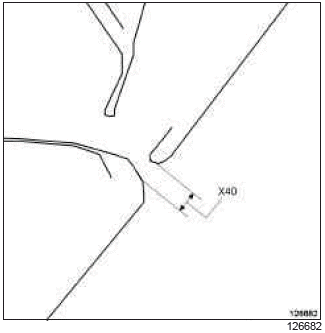

Section 40

Renault Clio. Vehicle Bodywork Specifications

(40) = 4.3 mm +- 1.5

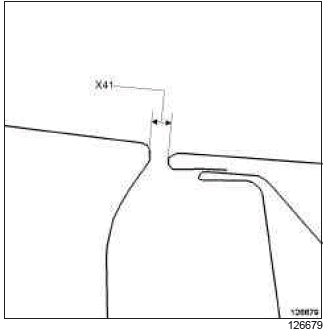

Section 41

Renault Clio. Vehicle Bodywork Specifications

(41) = 5.5 mm +- 1

Mechanical Introduction

Vehicle: Precautions for the repair

GENERAL INFORMATION

All information contained in these manuals is intended exclusively for automotive industry professionals.

The documentation is intended to cover all vehicles in the RENAULT range throughout the world, but may not cover equipment designed for use in specific countries.

The procedures and fault finding procedures recommended and described in this manual have been designed by automotive industry repair professionals.

1 - General recommendations

Observe basic principles of vehicle repair.

The quality of repair depends first and foremost on the care exercised by the person in carrying it out.

To ensure good repair:

The design quality of our vehicles demands that nothing is left to chance in making a good repair, and it is essential to refit parts or components exactly as they were originally (for instance: heat shields, wiring routing, pipe routing, particularly in the area of the exhaust pipe).

Do not blow away asbestos particles or dust (brakes, clutch, etc.), vacuum them up or clean the component with a cleaning agent (such as a brake cleaning product).

Use professional products and apply them with care, for example do not apply too much sealing paste to the sealing surface.

Exhaust gases (petrol and diesel) are pollutants. Operate engines with care and always use exhaust gas extractors.

Ensure that there is no risk of a short circuit occurring when the electrical connections are reconnected (e.g. starter, alternator, etc.). Some points need greasing, others do not, therefore particular attention should be paid during refitting operations to ensure that they work properly under all conditions.

2 - Special tooling - ease of use

The repair procedures have been designed using special tools; they must therefore be carried out using these tools to ensure a high degree of working safety and quality of repair.

The equipment we have approved has undergone careful research and testing, and must be used and maintained with care.

3 - Reliability - updating

New repair procedures are constantly being developed in the interests of repair quality, either with new products (emission control, injection, electronics, etc.), or in fault finding. Be sure to consult the Workshop Repair Manuals or Technical Notes or fault finding summaries before any servicing operation.

Since vehicle specifications are subject to change during their commercial life, it is essential to check whether there are any updated Technical Notes when seeking information.

4 - Safety

Operations on certain equipment and certain parts (for instance: spring-shock absorber assembly, automatic transmission, brake system, ABS, airbag, common rail diesel injection, LPG, etc.) require particular attention to be paid to safety, cleanliness and care.

The safety symbol used in this manual indicates that special attention must be paid to the procedure or the tightening torque values.

Working safely:

Respecting the environment:

5 - Conclusion

The procedures contained in this document merit your attention. Please read them carefully in order to reduce the risk of injury, and avoid using incorrect procedures that could damage the vehicle or make it dangerous in use.

Following the recommended procedures will help you to provide a quality of service which will ensure the vehicles achieve the highest levels of performance and reliability.

Maintenance and repair operations must be carried out under the proper conditions to ensure that our vehicles run safely and reliably.

Tightening torques: General information

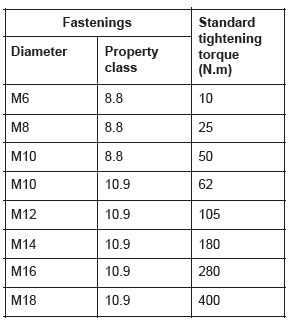

I - TABLE OF STANDARD TORQUES

Renault Clio. Mechanical Introduction

Special notes on electrical earths

Renault Clio. Mechanical Introduction

Renault Clio. Mechanical Introduction

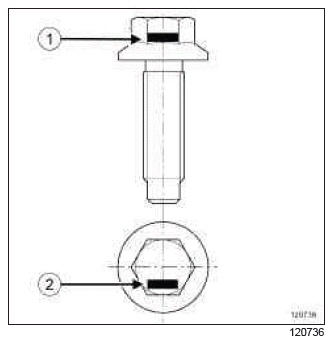

The property class is indicated on the bolt (1) or (2).

II - FUNCTION OF A BOLTED ASSEMBLY

The bolting system connects parts of an assembly to prevent their separation or sliding when submitted to exterior forces.

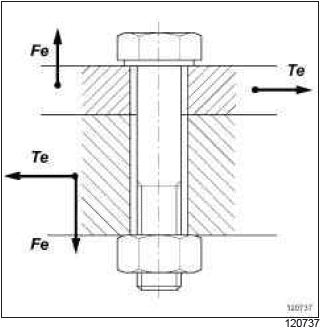

Exterior forces

Renault Clio. Mechanical Introduction

The assembly is submitted to forces that are:

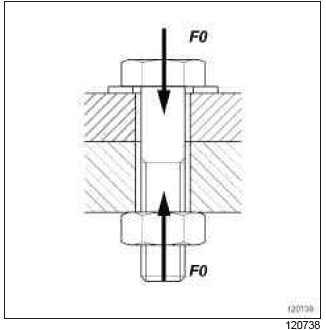

Creating tension (or preload) F0

Renault Clio. Mechanical Introduction

The assembly is held together by the tension created in the bolt when it is tightened.

A reliable assembly is only possible if the correct tension is used:

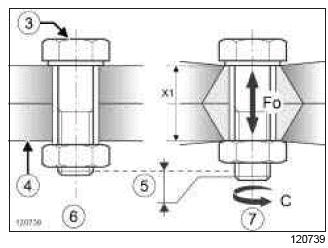

Renault Clio. Mechanical Introduction

  1. Bolt
  2. Assembled components
  3. Extension of the bolt
  4. Non-tightened assembly
  5. Tightened assembly

    (X1) compression of the assembly
    (Fo) tension
    (C) tightening torque

Customer complaints resulting from incorrect tightening may be, following assembly, a safety issue (fire, loss of control of the vehicle etc.), an immobilising fault or a noise.

III - TIGHTENING PROCEDURES

The two controlled tightening procedures adapted to automotive repairs because of their low cost and simple operation are torque tightening and angle tightening (also called torque and angle).

1 - Torque tightening

This is the most commonly used procedure. Is consists of tightening until a given resisting torque is reached, known as tightening torque.

The tightening torque is distributed in a large part as friction torque (under the head and in the thread) and in a small part as useful torque (to create the tension).

This practise spreads the tension significantly due to the variation in the friction coefficients from one assembly to another and the uncertainty of the tightening procedures and methods.

2 - Angle tightening

The principle consists of putting the parts of the assembly in contact using a mating torque (approximately 25 to 30% of the final torque) then to tighten to a determined angle.

This method, which is not dependent on the friction of the tightened assembly, gives more precise results than torque tightening.

IV - OBSERVING THE TIGHTENING TORQUES AND ANGLES

Bolted assemblies whose tightening torques and angles are explicitly specified in the removal / refitting procedures must be observed using the appropriate tools (torque wrench, angle measuring disc). Failure to observe this can lead to safety risks, immobilising faults or unwanted noises.

For other bolted assemblies, non-measured tightening (using standard spanners) is acceptable. Nevertheless, the corresponding tightening torque is indicated in the table of standard tightening torques.

V - RECOMMENDED TIGHTENING TOOLS

For measured tightening, the repairer must have available torque wrenches to tighten from 4 to 400 N.m as well as an angle measuring disc.

The torque wrenches used may be click type or electronic.

For example:

The torque wrenches used must comply with the ISO 6789 standard. They must be calibrated regularly following the supplier's recommendations using the appropriate procedures.

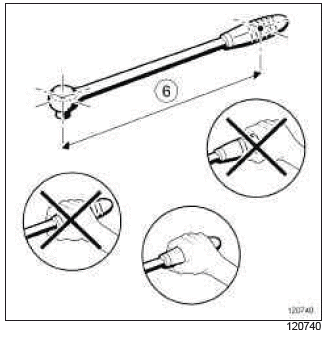

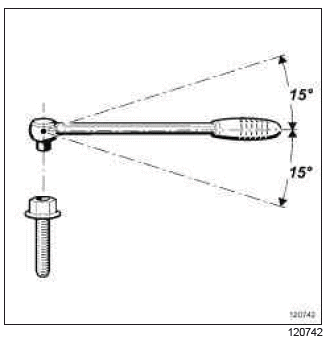

VI - PRECAUTIONS WHEN USING A CLICK TYPE TORQUE WRENCH

A click type torque wrench is a manual tightening tool.

The trigger mechanism causes a break or disengagement of the wrench past a force threshold.

This threshold depends on the setting of the wrench but also depends on the way the wrench is handled.

When used following best practises, the accuracy of the tightness when using a click type torque wrench is +- 15%.

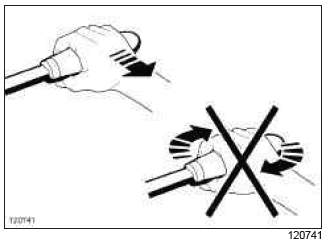

The instructions to be observed are:

Renault Clio. Mechanical Introduction

  1. lever arm

Renault Clio. Mechanical Introduction

Renault Clio. Mechanical Introduction
