Renault Clio: Evaporator: Removal - Refitting
Renault Clio III (2005-2013) Service Manual / Air Conditioning / Air Conditioning / Evaporator: Removal - Refitting
AIR CONDITIONING or CLIMATE CONTROL

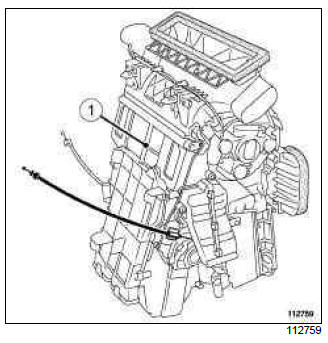

Note: The evaporator is supplied already assembled in the distribution unit. (1)
REMOVAL
OPERATION FOR REMOVAL OF PART CONCERNED
- Remove the distribution unit (see 61A, Heating, Distribution unit: Removal - Refitting, 61A- 50).
REFITTING
REFITTING OPERATION FOR PART CONCERNED
- Refit the distribution unit (see 61A, Heating, Distribution unit: Removal - Refitting, 61A-50).
Evaporator: Cleaning
AIR CONDITIONING or CLIMATE CONTROL
WARNING
Do not spray the cleaner via the air inlet, as this could damage the fan assembly.
REMOVAL

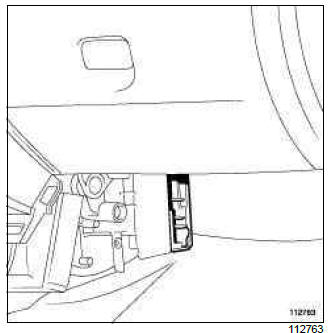

LEFT-HAND DRIVE
- Remove the cabin filter (see 61A, Heating, Cabin filter: Removal - Refitting, 61A-17).
- Apply the air conditioning cleaner using an extension piece.
- Spray the entire aerosol.
- Leave the product to work for 15 minutes.
- Run the fan assembly very slowly for 5 minutes.

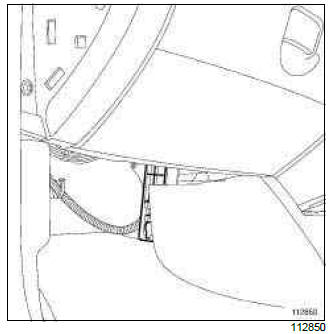

RIGHT-HAND DRIVE
- Remove the cabin filter (see 61A, Heating, Cabin filter: Removal - Refitting, 61A-17).
- Apply the air conditioning cleaner.
- Spray the entire aerosol.
- Leave the product to work for 15 minutes.
- Run the fan assembly slowly for 5 minutes.
REFITTING
- Refit the cabin filter.
- Clip on the cabin filter.
