Renault Clio. Air vents conditioning and heating system

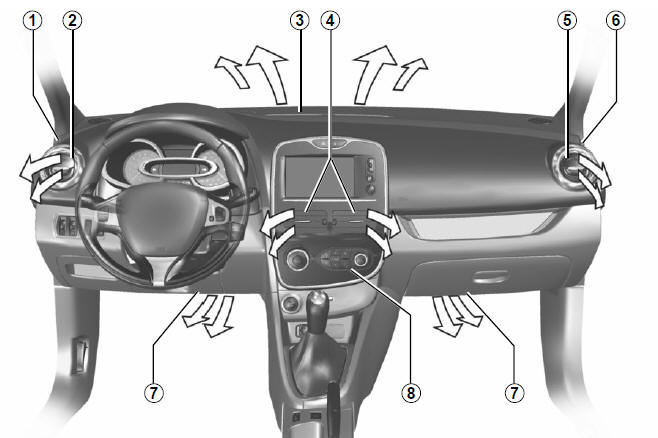

  1. left-hand side window demister vent.
  2. left-hand side air vent.
  3. windscreen demisting vents.
  4. centre air vents.
  5. right-hand side air vent.
  6. right-hand side window demister outlet.
  7. passenger footwell heater outlets.
  8. control panel.

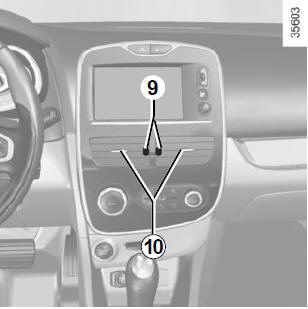

Centre air vents.

Renault Clio. Centre air vents


Air flow

Move the control knob 9 (beyond the resistance point).

Upwards: opened to maximum.

Down: closed.

Direction

Move cursors 10 to the required position.

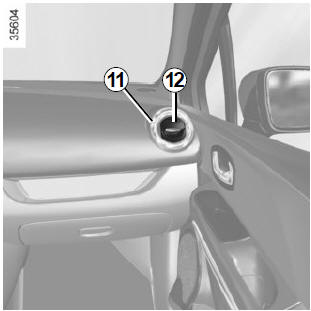

Side air vents

Renault Clio. Side air vents


Air flow

To open air vent 11, press on the air vent (point 12) until it is open as far as required.

Direction

To direct the air flow, swivel side air vent 11.

To remove bad odours from your vehicles, only use the systems designed for this purpose. Consult an approved Dealer.

Do not add anything to the vehicle’s ventilation circuit (for example, to remove bad odours).

There is a risk of damage or of fire.
