Renault Clio: Fitting a radio

Renault Clio IV (2014-2019) Owners Manual / Practical advice / Fitting a radio

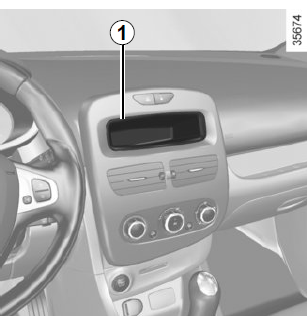

Radio location 1

Renault Clio. Radio location


Unclip the blanking cover. The aerial, + and – supply and speaker wire connections are located behind it.

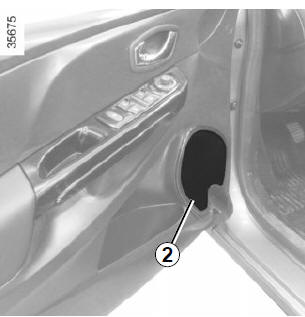

Door speakers 2

Renault Clio. Door speakers


To install any equipment, please consult an authorised dealer.

  • In all cases, it is very important to follow the manufacturer’s instructions carefully.
  • The specifications of the brackets and wires (available from our network) vary depending on the equipment level of your vehicle and the type of radio.

    Consult an approved Dealer to find out the correct part number.

  • No work may be carried out on the vehicle’s electrical or radio circuits, except by approved dealers: an incorrectly connected system may result in damage being caused to the electrical equipment and/or the components connected to it.
