Renault Clio: Hydraulic unit - master cylinder brake pipe: Removal - Refitting
LEFT-HAND DRIVE
![Renault Clio. Hydraulic unit - master cylinder brake pipe: Removal - Refitting](images/books/2116/renault_clio_hydraulic_unit_master_cylinder_brake_pipe_removal_refitting_2931.png)
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Put the vehicle on a two-post lift (see Vehicle: Towing and lifting).
- Disconnect the battery (see Battery: Removal - Refitting).
- Fit a pedal press on the brake pedal.
K4J or K4M or K9K
- Remove the battery (see Battery: Removal - Refitting).
- Remove:
- the front engine cover (if fitted to the vehicle),
- the air filter unit (see Air filter unit: Removal - Refitting).
![Renault Clio. Hydraulic unit - master cylinder brake pipe: Removal - Refitting](images/books/2116/renault_clio_hydraulic_unit_master_cylinder_brake_pipe_removal_refitting_2932.png)

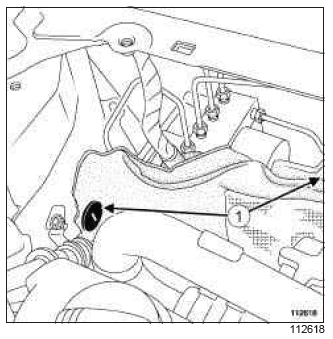

- Remove the soundproofing clips (1).
- Move the soundproofing to one side in order to see
the pipes.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Hydraulic unit - master cylinder brake pipe: Removal - Refitting](images/books/2116/renault_clio_hydraulic_unit_master_cylinder_brake_pipe_removal_refitting_2933.png)

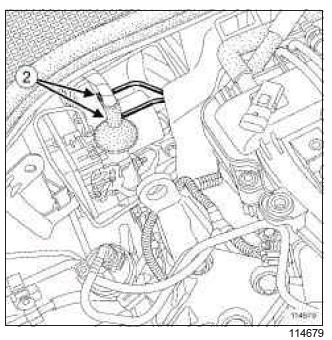

- Loosen the hydraulic unit brake pipe unions (2).
![Renault Clio. Hydraulic unit - master cylinder brake pipe: Removal - Refitting](images/books/2116/renault_clio_hydraulic_unit_master_cylinder_brake_pipe_removal_refitting_2934.jpg)

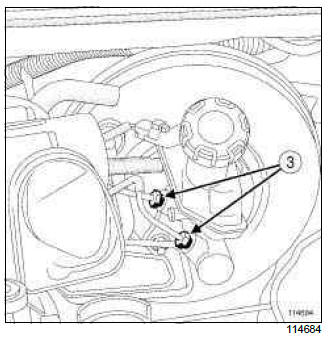

- Loosen the master cylinder brake pipe unions (3).
- Remove the brake pipes between the hydraulic unit
and master cylinder.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
- Refit the brake pipes between the hydraulic unit and
master cylinder.

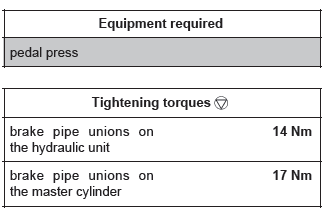

- Tighten to torque:
- the brake pipe unions on the hydraulic unit (14
Nm),
- the brake pipe unions on the master cylinder
(17 Nm).
II - FINAL OPERATION
- Refit:
- the bulkhead soundproofing material,
- the soundproofing clips,
- the air filter unit (see Air filter unit: Removal - Refitting),
- the engine cover (if fitted to the vehicle).
K4J or K4M or K9K
- Refit the battery (see Battery: Removal - Refitting).
- Remove the brake pedal pedal press.
- Bleed the brake circuit (see 30A, General information,
Braking circuit: Bleed, 30A-4).
- Connect the battery (see Battery: Removal - Refitting).
