REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

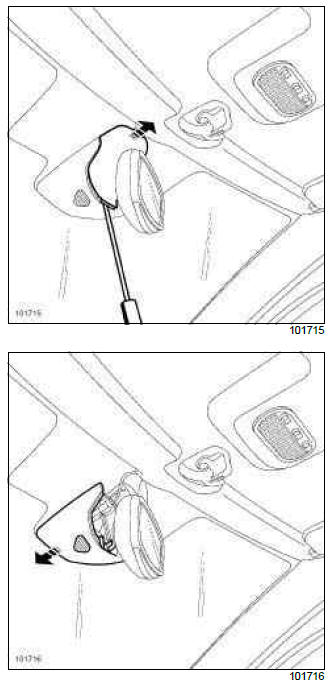

• Unclip:
  • the upper cover,
  • the lower cover.

Note: When removing the rear view mirror, be careful not to damage the rain sensor nearby.

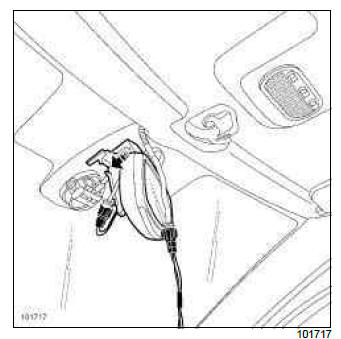

• Disconnect the connectors.
• Remove the rear view mirror.

REFITTING

REFITTING OPERATION FOR PART CONCERNED

• Refit the rear view mirror.
• Connect the connectors.
• Clip:
  • the lower cover,
  • the upper cover.

Sun visor: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

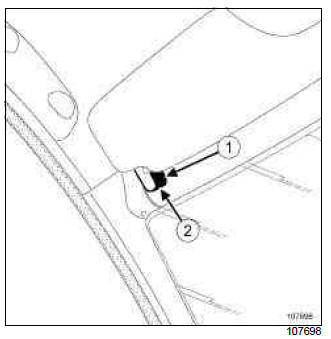

• Unclip the cover (1) in the slit at (2).

II - OPERATION FOR REMOVAL OF PART CONCERNED

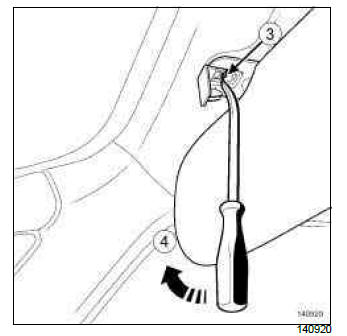

• Press on the clip (3) using the tool (Car. 1597) at (4) to unlock the sun visor.

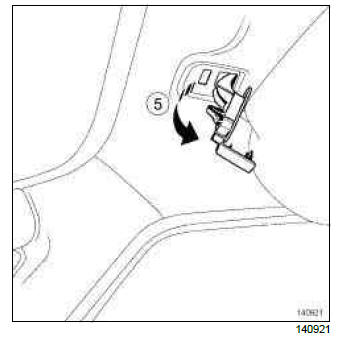

• Tilt the sun visor at (5).
• Remove the sun visor.

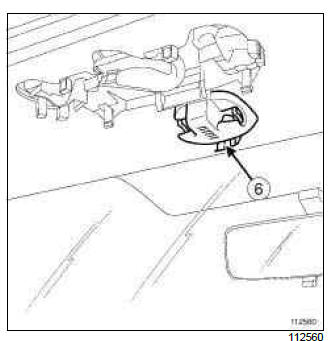

• Unclip the cover of the sun visor central support by pressing the tab (6).
• Remove the sun visor central support using the (Car. 1597).

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

• Clip:
  • the central sun visor support.
  • the cover of the sun visor central support,
  • the sun visor.

II - FINAL OPERATION

• Clip the cover on.

Grab handle: Removal - Refitting

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

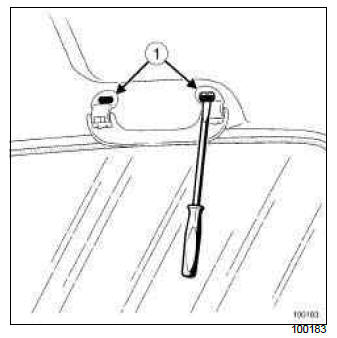

• Unclip the pins (1) without removing them, using the (Car. 1597).
• Remove the grab handle or the glasses holder.

REFITTING

REFITTING OPERATION FOR PART CONCERNED

• Refit the grab handle.
• Clip on the pins (1).

Rear parcel shelf sun visor: Removal - Refitting

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

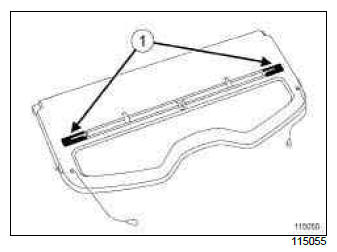

• Unclip the side trims (1).

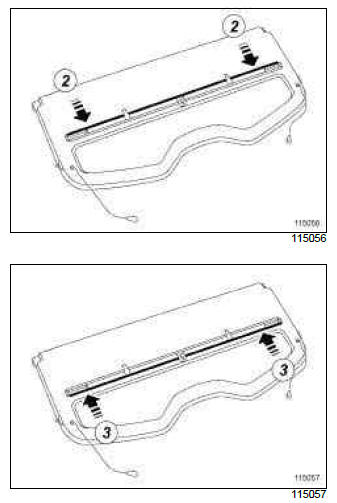

• Unclip the rear parcel shelf sun blind (2) and (3).
• Remove the rear parcel shelf sun blind.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

• Position the rear parcel shelf sun blind.
• Clip the rear parcel shelf blind into place.
• Refit the side trim pieces (1).

II - FINAL OPERATION

• Carry out a function test.
