Renault Clio: Air inlet: Description

D4F

D4F, and 740 or 742 or 764

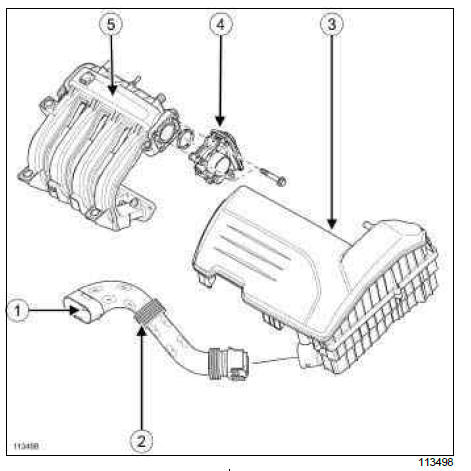

Renault Clio. Air inlet: Description

  1. Air inlet
  2. Air inlet trunking
  3. Air filter unit
  4. Motorised throttle valve
  5. Inlet manifold

D4F, and 784

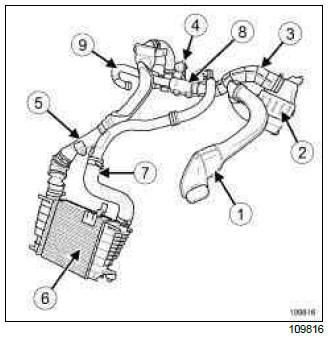

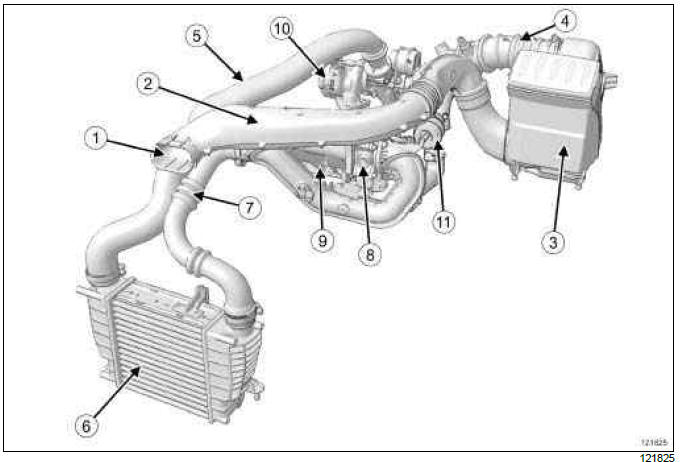

Renault Clio. Air inlet: Description

  1. air inlet
  2. Air filter box air inlet pipe
  3. Air filter unit
  4. Air filter box outlet air pipe
  5. Turbocharger air outlet pipe
  6. Intercooler
  7. Intercooler air outlet pipe
  8. Motorised throttle valve
  9. Inlet manifold
  10. Turbocharger
  11. Compressor discharge valve

K4J or K4M

Diagram of the air inlet circuit

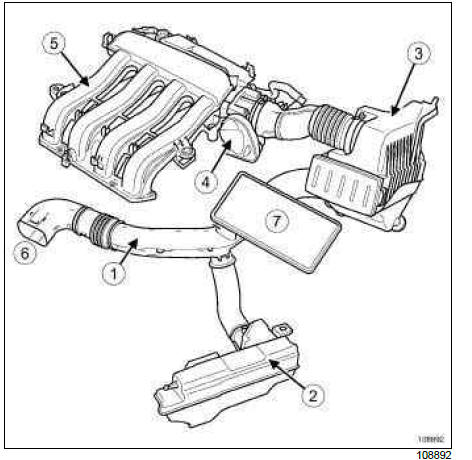

Renault Clio. Air inlet: Description

  1. Air inlet sleeve
  2. Air resonator
  3. Air filter unit
  4. Throttle valve
  5. Plenum chamber
  6. Air inlet
  7. Air resonator

K9K

K9K, and 764 or 772

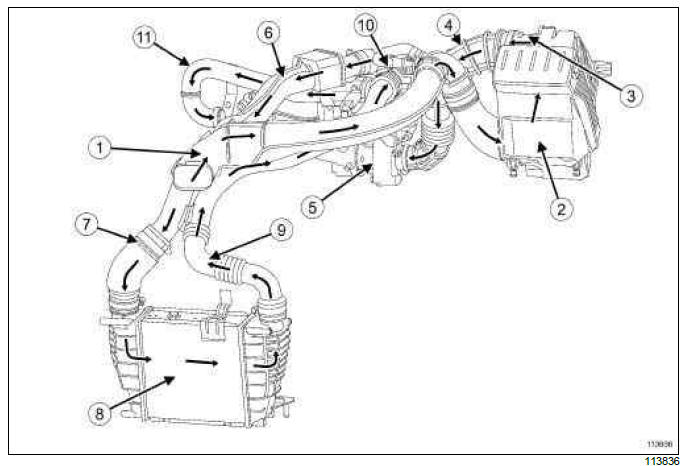

Renault Clio. Air inlet: Description

  1. Air filter unit air inlet pipe
  2. Air filter unit
  3. Air flowmeter
  4. Air filter unit air outlet pipe
  5. Turbocharger
  6. Turbocharger air outlet pipe
  7. Intercooler air inlet pipe
  8. Intercooler
  9. Intercooler air outlet pipe
  10. Damper valve
  11. Metal air inlet tube

K9K, and 766

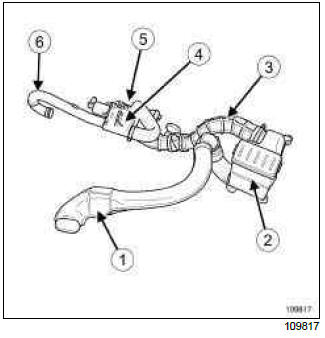

Renault Clio. Air inlet: Description

  1. Air filter unit air inlet pipe
  2. Air filter unit
  3. Air flowmeter
  4. Air filter unit air outlet pipe
  5. Turbocharger
  6. Turbocharger air outlet pipe
  7. Intercooler air inlet pipe
  8. Intercooler
  9. Intercooler air outlet pipe
  10. Oil vapour recirculation valve
  11. Metal air inlet tube

K9K, and 768

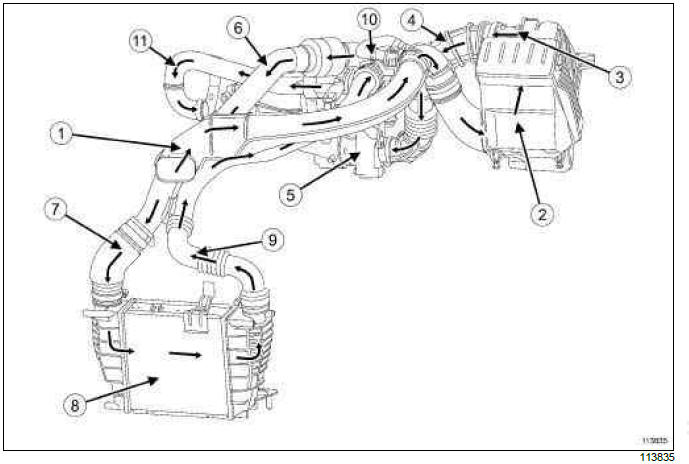

Renault Clio. Air inlet: Description

  1. Air filter unit air inlet pipe
  2. Air filter unit
  3. Air flowmeter
  4. Air filter unit air outlet pipe
  5. Turbocharger
  6. Turbocharger air outlet pipe
  7. Intercooler air inlet pipe
  8. Intercooler (if equipped)
  9. Intercooler air outlet pipe
  10. Oil vapour recirculation valve
  11. Metal air inlet tube

K9K, and 750

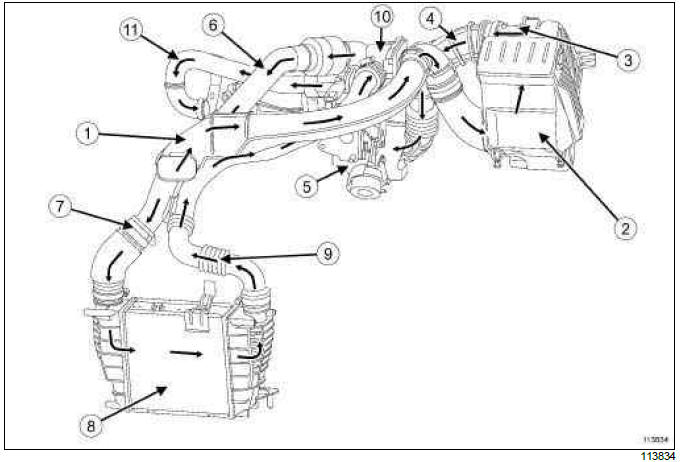

Renault Clio. Air inlet: Description

  1. Air filter unit air inlet pipe
  2. Air filter unit
  3. Air filter unit air outlet pipe
  4. Turbocharger
  5. Intercooler air inlet pipe
  6. Intercooler
  7. Intercooler air outlet pipe
  8. Exhaust gas recirculation unit
  9. Metal air inlet tube

K9K, and 752

Renault Clio. Air inlet: Description

  1. Air filter unit air inlet pipe
  2. Air filter unit
  3. Air filter unit air outlet pipe
  4. Exhaust gas recirculation unit
  5. Turbocharger
  6. Metal air inlet tube

M4R

Air inlet circuit

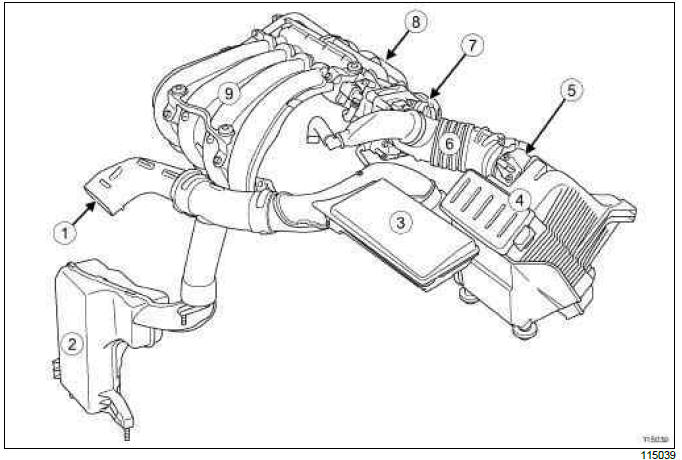

Renault Clio. Air inlet: Description

  1. Air inlet sleeve
  2. Air resonator on front end panel
  3. Air resonator on battery
  4. Air filter unit
  5. Air flowmeter
  6. Air inlet duct
  7. Motorised throttle valve
  8. Air resonator on inlet manifold
  9. Inlet manifold

F4R

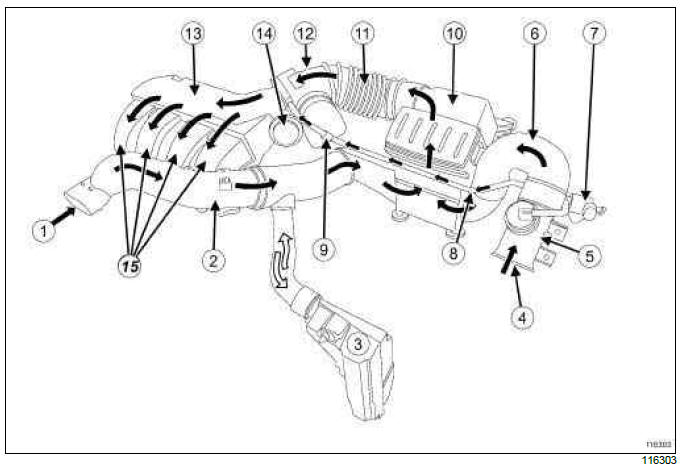

Renault Clio. Air inlet: Description

  1. main air inlet
  2. main inlet trunking
  3. air resonator
  4. soundproofing unit air inlet
  5. soundproofing unit
  6. soundproofing unit duct
  7. soundproofing unit control solenoid valve
  8. soundproofing unit control vacuum hose
  9. anti-return valve
  10. air filter box
  11. air inlet duct
  12. throttle valve
  13. inlet manifold
  14. oil vapour rebreathing unit
  15. outlets to injector holder plate then to cylinder head

I - AT LOW SPEED

The soundproofing unit control solenoid valve (6) controls the soundproofing unit valve, which is in the closed position. Air enters only via the main air inlet (1).

II - AT HIGH SPEED

The soundproofing unit control solenoid valve (6) no longer controls the soundproofing unit valve, which is in the open position. Air enters via the main air inlet (1) and the soundproofing unit air inlet (4) at a ratio of 60% for the main air inlet and 40% for the soundproofing unit air inlet.

Note: In rest position the soundproofing unit valve is open; if the control circuit is not correctly sealed, the valve will be in the rest position.
