Renault Clio: Rear Seat Trim
1/3 and 2/3 rear bench seat base trim: Removal - Refitting
REMOVAL
I - REMOVAL PREPARATION OPERATION
![Renault Clio. 1/3 and 2/3 rear bench seat base trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6062.jpg)

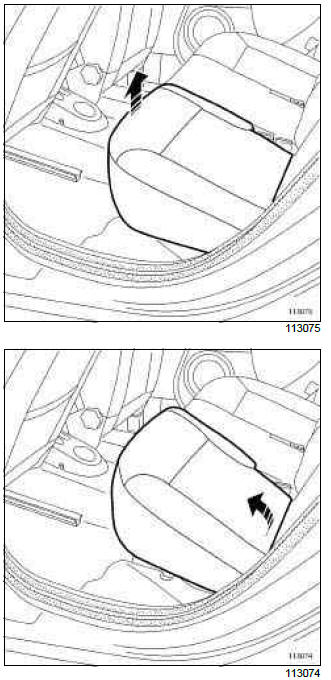

- Lift up the rear bench seat base.
![Renault Clio. 1/3 and 2/3 rear bench seat base trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6063.jpg)

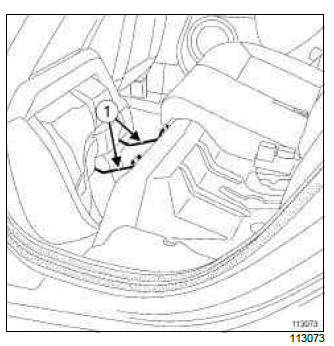

- Remove the rear bench seat base at (1).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. 1/3 and 2/3 rear bench seat base trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6064.jpg)

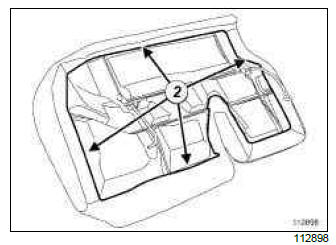

- Unclip the retaining strips (2).
- Remove the seat trim and foam.
![Renault Clio. 1/3 and 2/3 rear bench seat base trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6065.jpg)

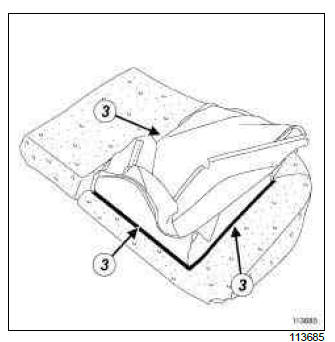

- Cut the retaining clips (3).
- Extract the seat base trim.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
- Clip the seat base trim to the foam.
![Renault Clio. 1/3 and 2/3 rear bench seat base trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6066.jpg)

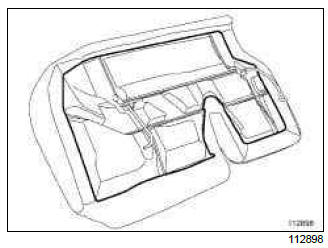

- Clip the retaining strips back onto the seat base
frame.
II - FINAL OPERATION
- Refit the rear bench seat base.
1/3 and 2/3 rear bench seatback trim: Removal - Refitting
![Renault Clio. 1/3 and 2/3 rear bench seatback trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6067.jpg)
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Remove the complete rear bench seat.
![Renault Clio. 1/3 and 2/3 rear bench seatback trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6068.jpg)

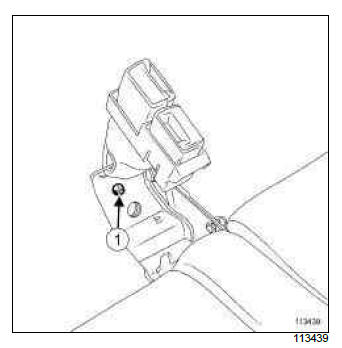

- Remove:
- the nut (1),
- the flexible stalk support.
![Renault Clio. 1/3 and 2/3 rear bench seatback trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6069.jpg)

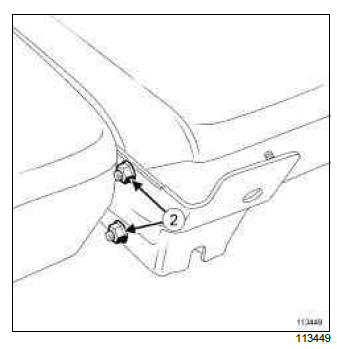

- Remove nuts (2).
- Separate the bench seat seatbacks.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. 1/3 and 2/3 rear bench seatback trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6070.jpg)

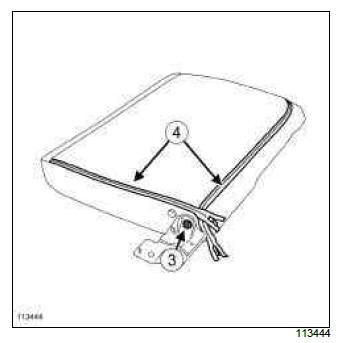

- Remove the nut (3) and take out the central retaining
bracket (according the side removed).
- Open the zip fasteners (4).
- Move the seatback frame aside.
![Renault Clio. 1/3 and 2/3 rear bench seatback trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6071.jpg)

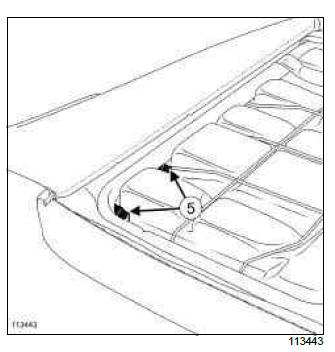

- Unclip the head rest (5) guides.
![Renault Clio. 1/3 and 2/3 rear bench seatback trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6072.jpg)

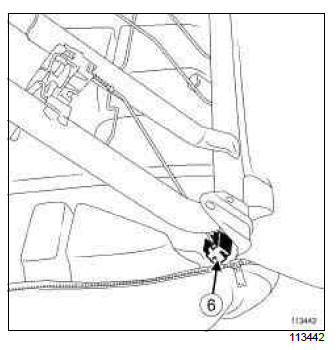

- Unclip the unlocking mechanism (6),
- Remove the seatback trim and foam.
![Renault Clio. 1/3 and 2/3 rear bench seatback trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6073.jpg)

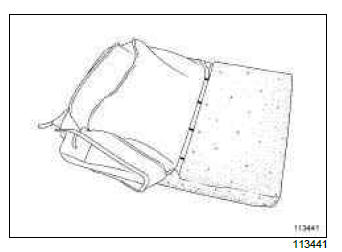

- Cut the seatback trim retaining clips.
REFITTING
I - REFITTING STAGE OF PART IN QUESTION
![Renault Clio. 1/3 and 2/3 rear bench seatback trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6074.jpg)

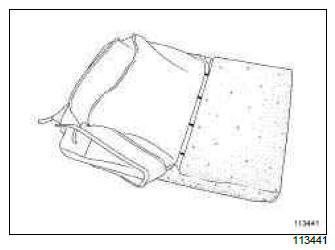

- Clip the seatback trim onto the foam.
![Renault Clio. 1/3 and 2/3 rear bench seatback trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6075.jpg)

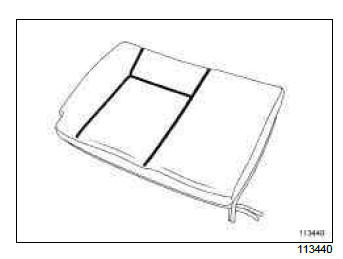

- Check that the trim is correctly positioned on the
foam.
- Fit the " foam-trim " assembly to the seatback
frame.
- Clip on:
- the unlocking system,
- the unlocking mechanism.
- Carry out a function test.
- Refit the head rest guides.
![Renault Clio. 1/3 and 2/3 rear bench seatback trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6076.jpg)

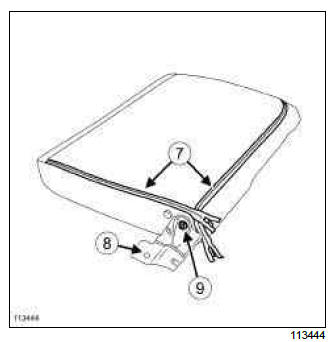

- Close the zip fasteners (7).
- Refit the central retaining bracket (8) (according to
the side removed).

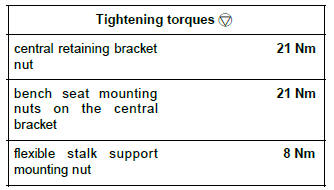

- Tighten to torque the central retaining bracket nut (21 Nm) (9).
II - FINAL OPERATION
![Renault Clio. 1/3 and 2/3 rear bench seatback trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6077.jpg)

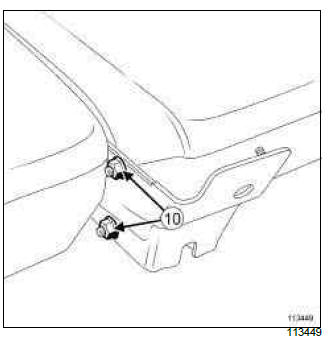

- Assemble the bench seat seatbacks.
- Tighten to torque the bench seat mounting nuts on the central bracket
(21 Nm) (10).
![Renault Clio. 1/3 and 2/3 rear bench seatback trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6078.jpg)

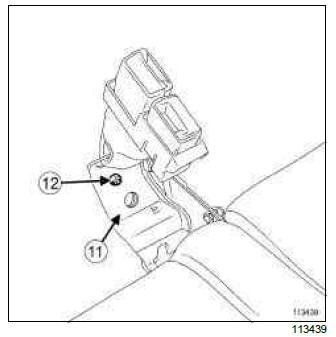

- Refit the flexible stalk support.
- Tighten to torque the flexible stalk support mounting
nut (8 Nm).
- Refit the complete rear bench seat.
Single unit rear bench seatback trim: Removal - Refitting
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Remove:
- the single unit rear bench seat base (see 76A,
Rear seat frames and mechanisms, Single unit
rear bench seat base: Removal - Refitting, 76A-6),
- the single unit rear bench seatback (see 76A, Rear
seat frames and mechanisms, Single unit rear
bench seatback: Removal - Refitting, 76A- 1).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Single unit rear bench seatback trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6079.jpg)

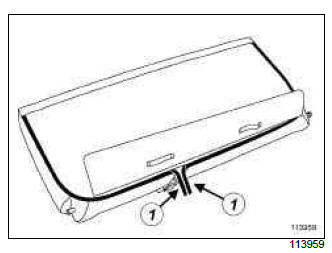

- Open the zip fasteners (1).
- Fold down the rear section of the seatback.
![Renault Clio. Single unit rear bench seatback trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6080.jpg)

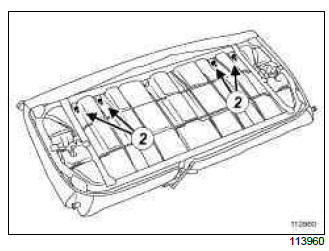

- Unclip the head rest guides (2).
![Renault Clio. Single unit rear bench seatback trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6081.jpg)

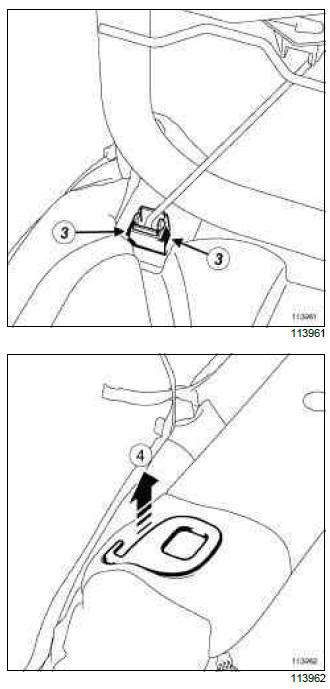

- Move the foam away from the seatback frame.
- Unclip the clips (3).
- Remove the seatback unlocking control (4).
- Separate the seatback trim from the seatback frame.
![Renault Clio. Single unit rear bench seatback trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6082.jpg)

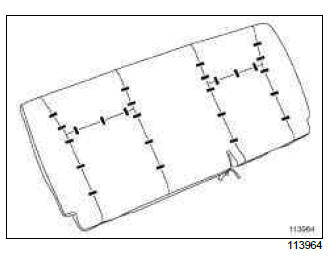

- Cut the foam cover clips.
- Separate the cover from the seatback foam.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
![Renault Clio. Single unit rear bench seatback trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6083.jpg)

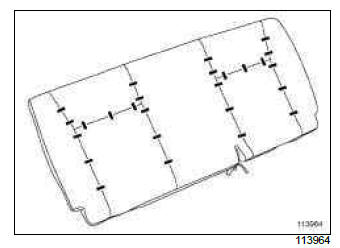

- Clip the seatback cover onto the foam.
- Fit the cover and foam cushion pad assembly back
onto the seatback frame.
- Clip:
- the unlocking mechanism,
- the head rest guides.
![Renault Clio. Single unit rear bench seatback trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6084.jpg)

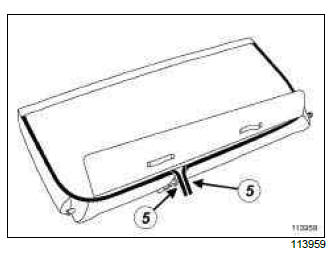

- Close the zip fasteners (5).
II - FINAL OPERATION
- Refit:
- the single unit rear bench seatback (see 76A, Rear
seat frames and mechanisms, Single unit rear
bench seatback: Removal - Refitting, 76A- 1).
- the single unit rear bench seat base (see 76A,
Rear seat frames and mechanisms, Single unit
rear bench seat base: Removal - Refitting, 76A-6),
Single unit rear bench seat base trim: Removal - Refitting
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Remove the rear bench seat base (see 76A, Rear
seat frames and mechanisms, Single unit rear
bench seat base: Removal - Refitting, 76A- 6).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Single unit rear bench seat base trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6085.jpg)

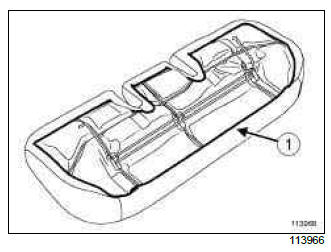

- Unclip the cover retaining strips (1).
![Renault Clio. Single unit rear bench seat base trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6086.jpg)

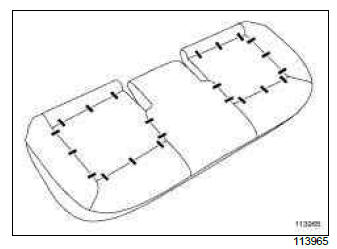

- Cut the foam cover clips.
- Separate the cover from the seat base foam.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
![Renault Clio. Single unit rear bench seat base trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6087.jpg)
- Clip the seat base cover to the foam.
- Fit the cover and foam cushion pad back onto the
seat base frame.
![Renault Clio. Single unit rear bench seat base trim: Removal - Refitting](images/books/2116/renault_clio_rear_seat_trim_6088.jpg)

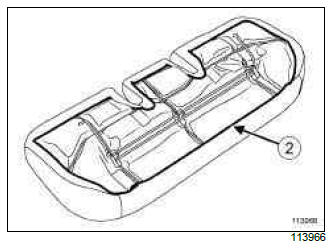

- Clip the retaining strips (2).
II - FINAL OPERATION
- Refit the rear bench seat base (see 76A, Rear seat
frames and mechanisms, Single unit rear bench
seat base: Removal - Refitting, 76A-6).
