Renault Clio: Rear side door trim: Removal - Refitting
B85 or K85
REMOVAL
I - REMOVAL PREPARATION OPERATION
Special features of vehicles fitted with manual
window winders
![Renault Clio. Rear side door trim: Removal - Refitting](images/books/2116/renault_clio_rear_side_door_trim_removal_refitting_5854.jpg)

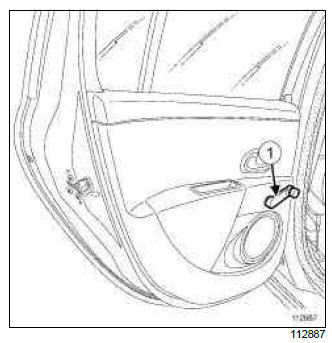

- Unclip the winder handle (1) using a pair of unclipping
pliers (protect the door trim).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Rear side door trim: Removal - Refitting](images/books/2116/renault_clio_rear_side_door_trim_removal_refitting_5855.jpg)

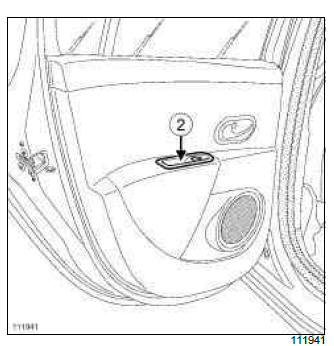

- Remove the trim piece and bolt (2).
- Take out interior handle.
- Disconnect the supply connectors (depending on
equipment level).
![Renault Clio. Rear side door trim: Removal - Refitting](images/books/2116/renault_clio_rear_side_door_trim_removal_refitting_5856.jpg)

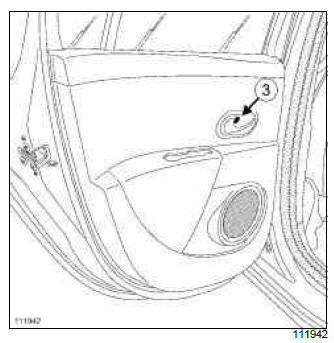

- Remove the trim piece and bolt (3).
![Renault Clio. Rear side door trim: Removal - Refitting](images/books/2116/renault_clio_rear_side_door_trim_removal_refitting_5857.jpg)

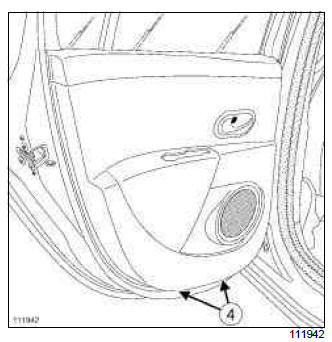

- Remove the bolts (4).
- Remove trim using a pair of unclipping pliers (protect
the door box section).
- Unclip the interior door handle cable using a flat-blade
screwdriver.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
- Reclip:
- the interior door handle cable,
- the door trim.
![Renault Clio. Rear side door trim: Removal - Refitting](images/books/2116/renault_clio_rear_side_door_trim_removal_refitting_5858.jpg)

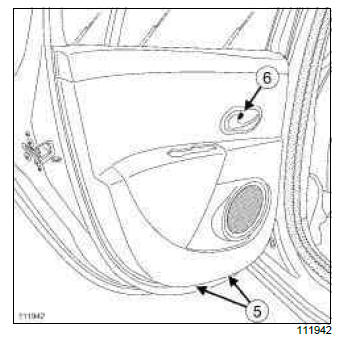

- Refit:
- the bolts (5),
- the trim piece and bolt (6).
![Renault Clio. Rear side door trim: Removal - Refitting](images/books/2116/renault_clio_rear_side_door_trim_removal_refitting_5859.jpg)

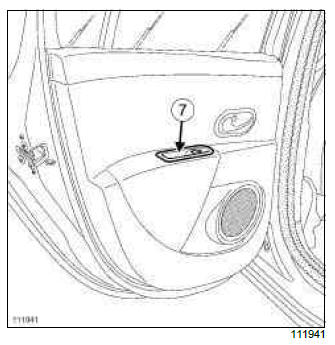

- Reconnect the supply connectors on the window
switch (depending on equipment level).
- Refit:
- the interior handle,
- the trim piece and bolt (7).
II - FINAL OPERATION.
Special features of vehicles fitted with manual
window winders
- Reclip the winder handle.
- Carry out a function test.
Non-side Opening Elements Trim
Tailgate trim: Removal - Refitting
REMOVAL
OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Tailgate trim: Removal - Refitting](images/books/2116/renault_clio_rear_side_door_trim_removal_refitting_5860.jpg)

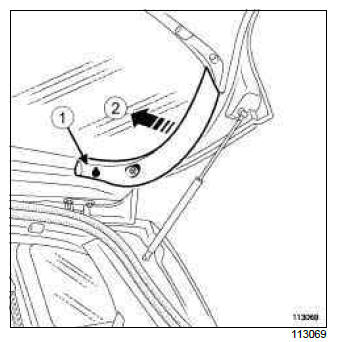

- Remove the bolts (1).
- Unclip the tailgate side trim panels (2).
![Renault Clio. Tailgate trim: Removal - Refitting](images/books/2116/renault_clio_rear_side_door_trim_removal_refitting_5861.jpg)

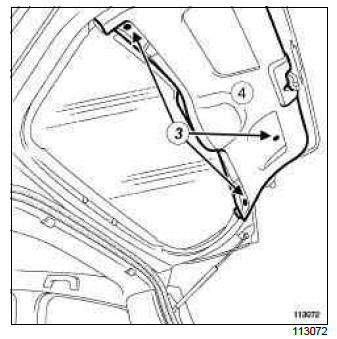

- Remove the bolts (3).
- Unclip the tailgate trim (4).
REFITTING
REFITTING OPERATION FOR PART CONCERNED
- Clip the tailgate trim in place.
- Refit the bolts (3).
- Clip on the tailgate side trim panels.
- Refit the bolts (1).
