Renault Clio: Start button: Removal - Refitting
VEHICLE WITH CARD

REMOVAL
I - REMOVAL PREPARATION OPERATION
- Remove the centre console (see Centre console:
Removal - Refitting) (MR 393, 57A, Interior equipment).

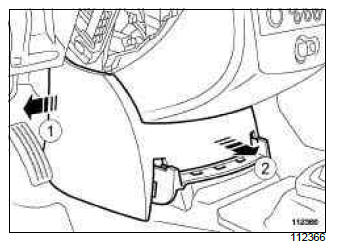

- Unclip the trim at (1) and (2).
RADIO NO. 01 or RADIO NO. 02 or RADIO NO.03
or RADIO NO. 04 or RADIO NO. 05 or RADIO NO.06
- Remove the radio (see 86A, Radio, Radio: Removal
- Refitting, 86A-8).
NAVIGATION AID 1
- Remove the radio navigation system (see 83C, On-board
telematics system, Radio navigation: Removal
- Refitting, 83C-3).
WITHOUT NAVIGATION AID, and VEHICLE WITHOUT
RADIO
- Unclip the glovebox using the (Car. 1363).

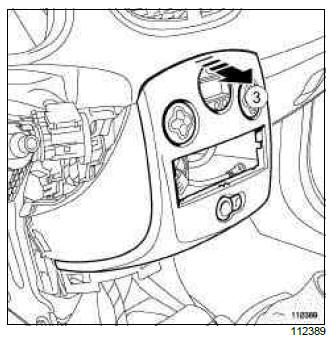

- Unclip the centre front panel at (3).

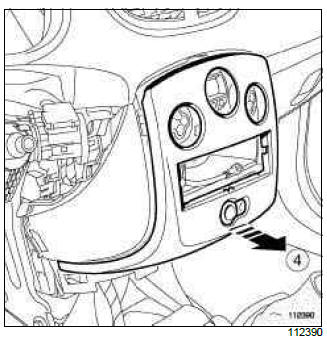

- Unclip the centre front panel at (4).
- Disconnect the connectors.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

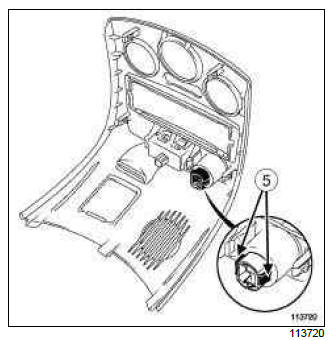

- Unclip the start button (5).
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
- Clip the start button onto the centre front cover.
II - FINAL OPERATION.
- Connect the centre front panel connectors.
- Clip in the centre front panel beginning with the lower
section.
RADIO NO. 01 or RADIO NO. 02 or RADIO NO.03
or RADIO NO. 04 or RADIO NO. 05 or RADIO NO.06
- Refit the radio (see 86A, Radio, Radio: Removal -
Refitting, 86A-8).
NAVIGATION AID 1
- Refit the radio navigation system (see 83C, On-board
telematics system, Radio navigation: Removal
- Refitting, 83C-3).
WITHOUT NAVIGATION AID, and VEHICLE WITHOUT
RADIO
- Clip the glovebox in position.
- Clip the trim under the centre front panel.
- Refit the centre console (see Centre console: Removal
- Refitting) (MR 393, 57A, Interior equipment).
