Renault Clio: Window Sealing

Front side door glass run channel: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Remove:
  • the door trim( (see Front side door trim: Removal - Refitting) (MR 393, 72A, Side opening elements trim),
  • the interior weatherstrip,
  • the door mirror( (see Door mirror: Removal - Refitting) (MR 393, 56A, Exterior equipment),
  • the sliding window( (see Sliding window in front side door: Removal - Refitting) (MR 393, 54A, Windows),
  • the exterior weatherstrip (see 66A, Window sealing, Front door side exterior weather strip: Removal - Refitting, 66A-3).

II - OPERATION FOR REMOVAL OF PART CONCERNED

• Remove the run channel from the door window.

REFITTING

I - REFITTING PREPARATIONS OPERATION

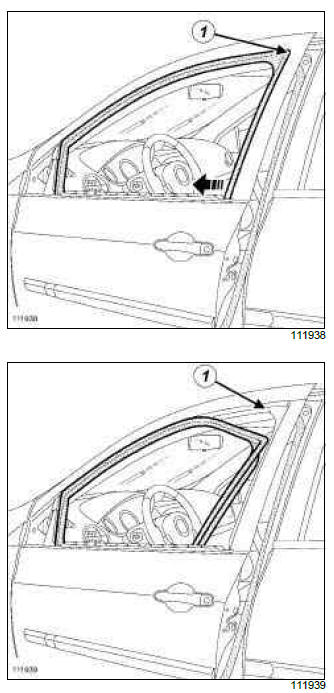

• Position the run channel using the guide located on corner on the inner section of the run channel (1).
• Refit the slide.

II - FINAL OPERATION.

• Refit:
  • the exterior weatherstrip (see 66A, Window sealing, Front door side exterior weather strip: Removal - Refitting, 66A-3),
  • the sliding window( (see Sliding window in front side door: Removal - Refitting) (MR 393, 54A, Windows),
  • the door mirror( (see Door mirror: Removal - Refitting) (MR 393, 56A, Exterior equipment),
  • the interior weatherstrip,
  • the door trim( (see Front side door trim: Removal - Refitting) (MR 393, 72A, Side opening elements trim).

Front door side exterior weather strip: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Remove:
  • the front door trim( (see Front side door trim: Removal - Refitting).
  • the door mirror( (see Door mirror: Removal - Refitting),
  • the sliding window( (see Sliding window in front side door: Removal - Refitting),
  • the front door window run channel, as necessary.

II - OPERATION FOR REMOVAL OF PART CONCERNED

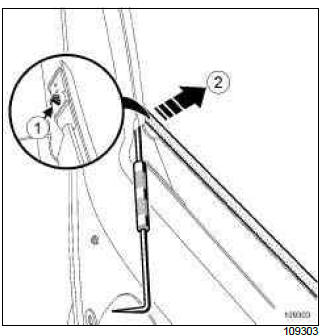

• Remove the clip (1) with a scratch awl, applying gentle pressure (2).

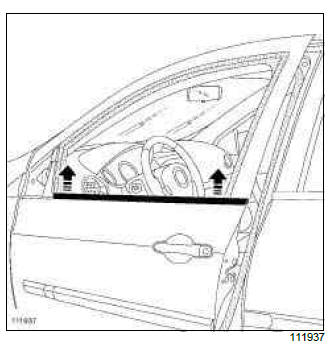

• Remove the exterior weatherstrip from the front side door.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

• Reposition the weatherstrip.
• Reattach the weatherstrip.

II - FINAL OPERATION.

• Refit:
  • the front door window run channel, as necessary,
  • the sliding window( (see Sliding window in front side door: Removal - Refitting),
  • the door mirror( (see Door mirror: Removal - Refitting),
  • the front door trim( (see Front side door trim: Removal - Refitting).

Glass run channel in rear side door: Removal - Refitting

B85 or K85

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Remove the door trim( (see Rear side door trim: Removal - Refitting) (MR 393, 72A, Side opening elements trim).

• Remove:

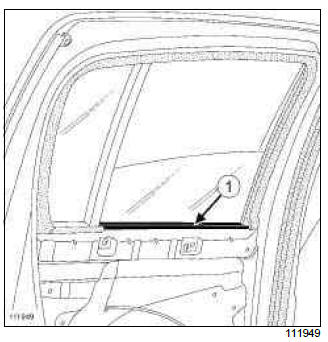

  • the interior weatherstrip (1),
  • the sliding window at the bottom of the box without removing it( (see Sliding window in rear side door: Removal - Refitting) (MR 393, 54A, Windows).

II - REMOVAL OPERATION FOR PART CONCERNED

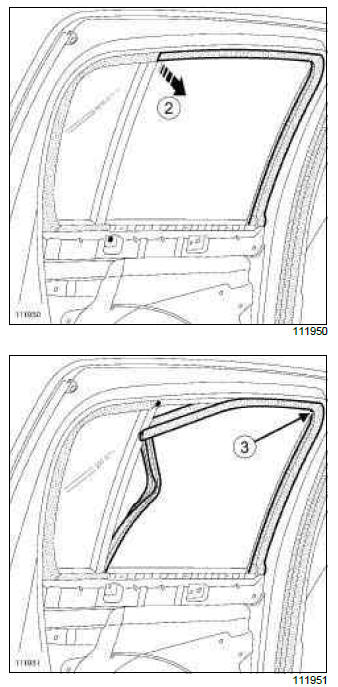

• Take out the run channel (2).

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

• Position the run channel using the guide located on the corner on the inner section of the run channel (3)
• Refit the slide.

II - FINAL OPERATION.

• Refit:
  • the sliding window( (see Sliding window in rear side door: Removal - Refitting) (MR 393, 54A, Windows),
  • the interior weatherstrip,
  • the door trim( (see Rear side door trim: Removal - Refitting) (MR 393, 72A, Side opening elements trim).

Rear side door exterior weather strip: Removal - Refitting

B85 or K85

Note: The method for removing and refitting the exterior weatherstrip is identical to the method for removing and refitting the rear door fixed window.

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

• Remove the rear side door fixed window( (see Rear side door fixed window: Removal - Refitting).

REFITTING

REFITTING OPERATION FOR PART CONCERNED

• Refit the rear side door fixed window( (see Rear side door fixed window: Removal - Refitting).
