Renault Clio: Air mixing cable: Removal - Refitting
LEFT-HAND DRIVE, and AIR CONDITIONING or STANDARD HEATING
REMOVAL
I - REMOVAL PREPARATION OPERATION

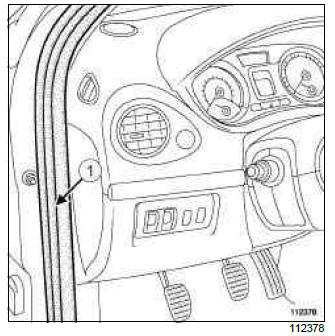

- Partially remove seal (1).

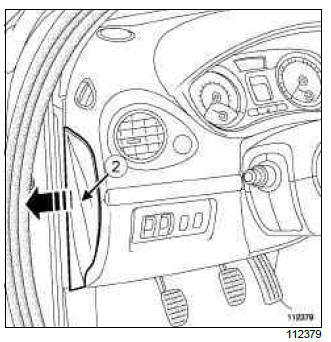

- Remove the side panel (2).

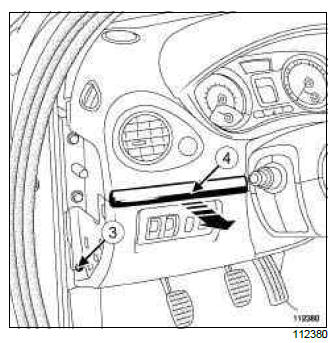

- Remove the bolt (3) from the base of the dashboard.
- Unclip the trim piece (4) from the driver's side dashboard
lower cover.

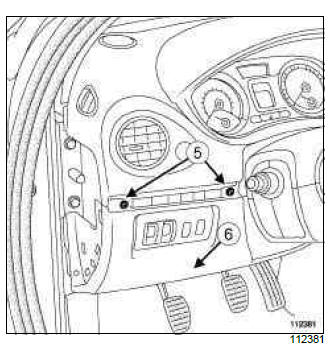

- Remove the bolts (5) from the driver's side dashboard
lower cover.
- Take out the driver's side dashboard lower cover (6).
- Disconnect the connectors from the driver's side
dashboard lower cover (depending on the equipment
level).
- Remove the centre console (see Centre console:
Removal - Refitting) (MR 393, 57A, Interior equipment).

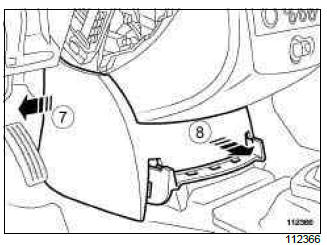

- unclip the trim at (7) and (8) at the base of the dashboard.
RADIO NO. 01 or RADIO NO. 02 or RADIO NO.03
or RADIO NO. 04 or RADIO NO. 05 or RADIO NO.
06
- Remove the radio (see Radio: Removal - Refitting)
(MR 392, 86A, Radio).
NAVIGATION AID 1
- Remove the radio navigation system (see Radio
navigation: Removal - Refitting) (MR 392, 83C,
On-board telematics system).
WITHOUT NAVIGATION AID, and VEHICLE WITHOUT
RADIO
- Unclip the glovebox using the (Car. 1363).

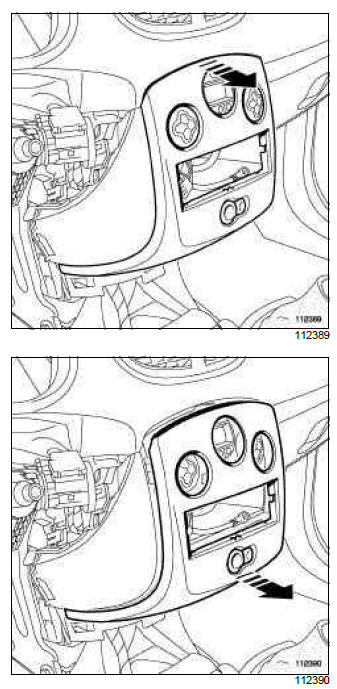

- Unclip the centre trim piece beginning with the upper
section.
- Disconnect the connectors.

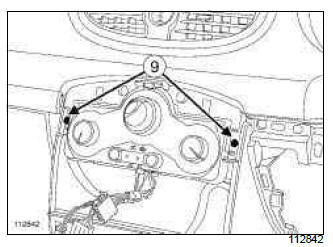

- Remove the air conditioning control panel bolts (9).
- Move the air conditioning control panel away from
the dashboard.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
- Remove the air conditioning control panel bolts (9).
- Move the air conditioning control panel away from
the dashboard.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

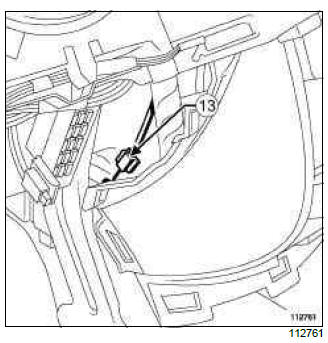

- Unclip the cable sleeve stop (13) from the distribution
unit.
- Remove:

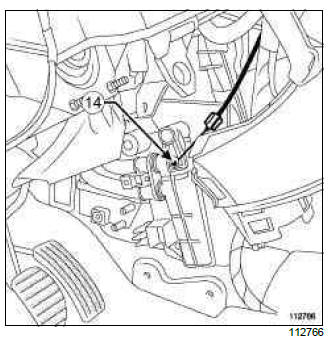

- the ball joint (14) on the air mixing flap,
- the air mixing control cable.
Note:
Note the route of the air mixing control cable.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
- Refit:
- the air mixing control cable.

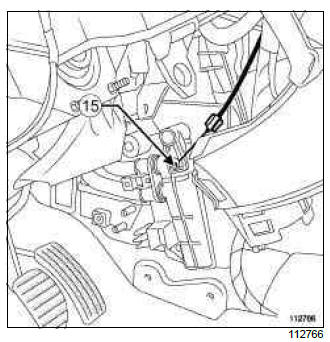

- the ball joint (15) on the air mixing flap.

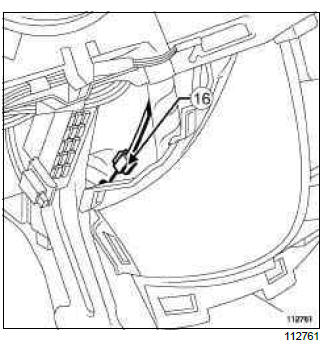

- Clip the cable sleeve stop (16) onto the distribution
unit.
- Refit the air conditioning control panel air mixing
control cable.

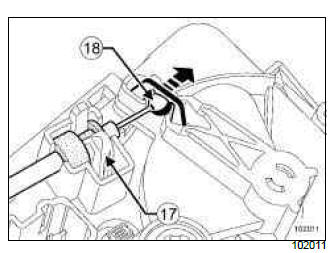

- Refit the ball joint (18).
- Clip the sleeve stop at (17).
II - FINAL OPERATION.
- Position the air conditioning control panel on the
dashboard.

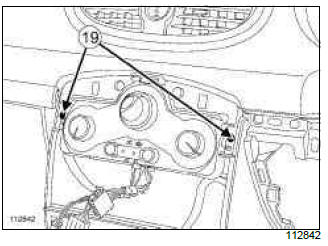

- Refit the air conditioning control panel bolts (19).
- Connect the central trim connectors.
- Clip on the centre trim starting at the top.
RADIO NO. 01 or RADIO NO. 02 or RADIO NO. 03
or RADIO NO. 04 or RADIO NO. 05 or RADIO NO.
06
- Refit the radio (see Radio: Removal - Refitting)
(MR 392, 86A, Radio).
NAVIGATION AID 1
- Refit the radio navigation system (see Radio navigation: Removal -
Refitting) (MR 392, 83C, On-board
telematics system).
WITHOUT NAVIGATION AID, and VEHICLE WITHOUT
RADIO
- Clip the glovebox in position.
- Clip on the dashboard lower trim.
- Refit the centre console (see Centre console: Removal
- Refitting) (MR 393, 57A, Interior equipment).
- connect the connectors to the driver's side dashboard
lower cover (depending on the equipment level).
- Refit:
- the driver's side dashboard lower cover,
- the bolts from the driver's side dashboard lower
cover.
- Clip on the driver's side dashboard lower cover trim
piece.
- Refit:
- the bolts to the base of the dashboard,
- the side panel,
- the seal.
RIGHT-HAND DRIVE, and AIR CONDITIONING or STANDARD HEATING
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Remove:
- the glovebox (see Glovebox: Removal - Refitting)
(MR 393, 57A, Interior equipment),
- the centre console (see Centre console: Removal
- Refitting) (MR 393, 57A, Interior equipment).

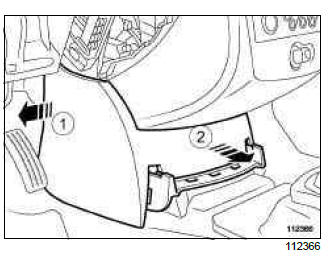

- Unclip the trim at (1) and (2) at the base of the dashboard.
WITHOUT NAVIGATION AID, and RADIO NO. 01
or RADIO NO. 02 or RADIO NO. 03 or RADIO NO.
04 or RADIO NO. 05 or RADIO NO. 06
- Remove the radio (see Radio: Removal - Refitting)
(MR 392, 86A, Radio).
NAVIGATION AID 1
- Remove the radio navigation system (see Radio
navigation: Removal - Refitting) (MR 392, 83C,
On-board telematics system).
WITHOUT NAVIGATION AID, and VEHICLE WITHOUT
RADIO
- Unclip the glovebox using the (Car. 1363).

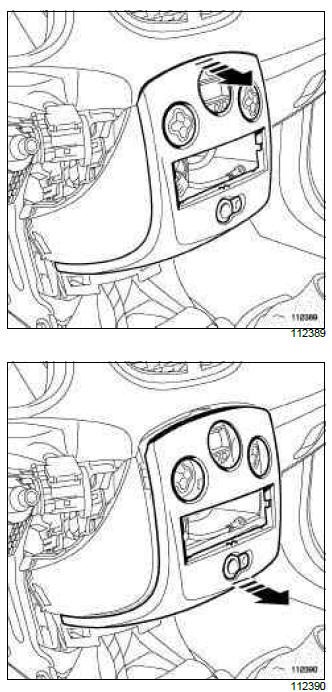

- Unclip the centre trim piece beginning with the upper
section.
- Disconnect the connectors.

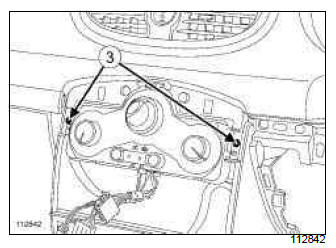

- Remove the air conditioning control panel bolts (3).
- Move the air conditioning control panel away from
the dashboard.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
- Remove the air conditioning control panel air mixing
control cable.

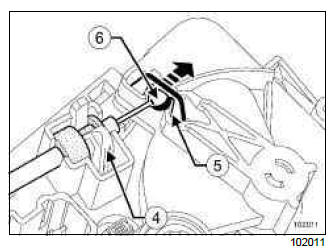

- Disconnect at (4).
- Remove the bracket (5).
- Extract the ball joint (6).

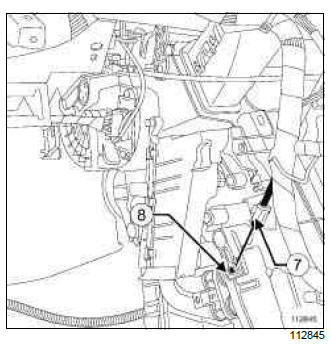

- Unclip the cable sleeve stop (7) from the distribution
unit.
- Remove:
- the ball joint (8) on the air mixing flap,
- the air mixing control cable.
Note:
Note the route of the air mixing control cable.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
- Refit:
- the air mixing control cable.

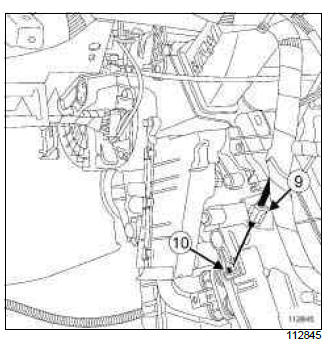

- the ball joint (10) on the air mixing flap.
- Clip the sleeve stop (9) onto the distribution unit.
- Refit the air conditioning control panel air mixing
control cable.

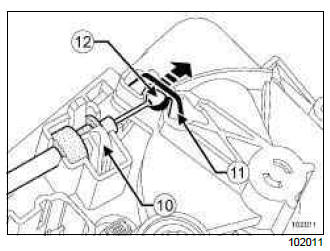

- Refit the ball joint (12).

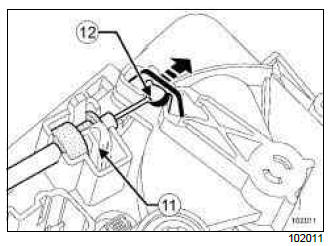

- Clip the sleeve stop at (11).
II - FINAL OPERATION.
- Position the air conditioning control panel on the
dashboard.
- Refit the air conditioning control panel bolts (13).
- Connect the central trim connectors.
- Clip on the centre trim starting at the top.
WITHOUT NAVIGATION AID, and RADIO NO. 01
or RADIO NO. 02 or RADIO NO. 03 or RADIO NO.
04 or RADIO NO. 05 or RADIO NO. 06
- Refit the radio (see Radio: Removal - Refitting)
(MR 392, 86A, Radio).
NAVIGATION AID 1
- Refit the radio navigation system (see Radio navigation: Removal -
Refitting) (MR 392, 83C, On-board
telematics system).
WITHOUT NAVIGATION AID, and VEHICLE WITHOUT
RADIO
- Clip the glovebox in position.
- Clip on the dashboard lower trim.
- Refit:
- the centre console (see Centre console: Removal
- Refitting) (MR 393, 57A, Interior equipment),
- the glovebox (see Glovebox: Removal - Refitting)
(MR 393, 57A, Interior equipment).
