Renault Clio: Attachment using the ISOFIX system

Visual installation of five door and estate versions

Renault Clio. Visual installation of five door and estate versions


Using a child safety system which is not approved for this vehicle will not correctly protect the baby or child.

They risk serious or even fatal injury.

Seat which does not allow a
child seat to be fitted.

Child seat fitted using the ISOFIX mounting

Seat which allows a ISOFIX child
seat to be attached.

The rear seats are fitted with
an anchorage point which allows a forward- facing ISOFIX child seat with universal approval to be attached. The anchorage points are located in the boot for the rear seats, and on the seat back for the front seat.

The size of the ISOFIX child seat is indicated by a letter:

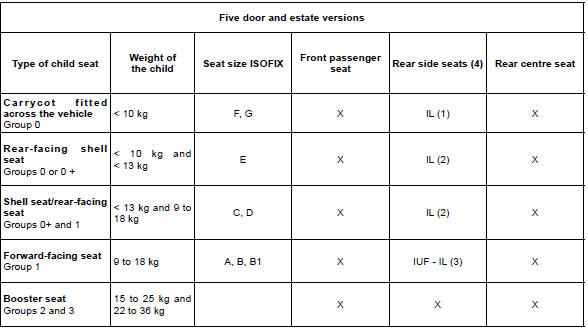

The table below summarises the information already shown in the diagram on the following pages, to ensure the applicable regulations are respected.

Renault Clio. Child seat fitted using the ISOFIX


X = Seat not suitable for fitting child seats ISOFIX.

IUF/IL = On equipped vehicles, seat which allows an approved “Universal/semi-universal” or “vehicle specific” child seat to be attached using the ISOFIX system; check that it can be fitted.

(1) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest the door.

(2) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will go, although without allowing it to come into contact with the child seat.

(3) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the headrest, or remove it if necessary. Do not push the seat in front of the child more than halfway back on its runners and do not recline the seatback more than 25°.

(4) Make sure that the child seat or the child’s feet do not prevent the front seat from locking correctly. Refer to the information on the “Front seat” in Section 1.

View of the utility version installation

Renault Clio. View of the utility version installation


Using a child safety system which is not approved for this vehicle will not correctly protect the baby or child.

They risk serious or even fatal injury.

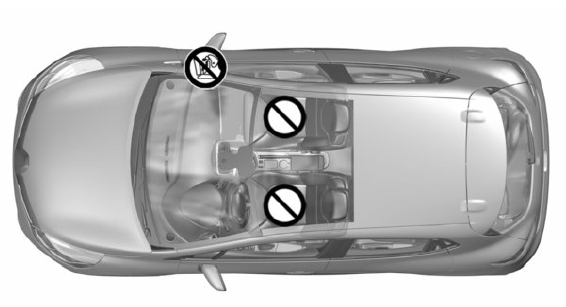

Seat which does not allow a
child seat to be fitted.

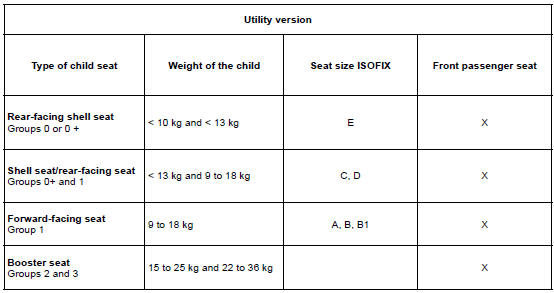

The table below summarises the information already shown on the diagram on the previous page, to ensure the regulations in force are respected.

Renault Clio. View of the utility version installation


X = Seat not suitable for fitting child seats ISOFIX.
