Adjusting the steering wheel height and depth

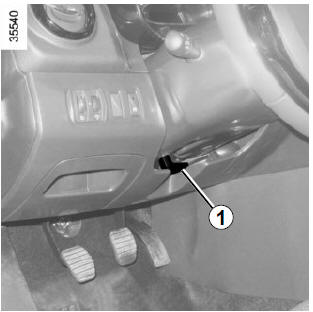

Pull lever 1 and place the steering wheel in the required position; push the lever beyond the point of resistance to lock the steering wheel in place.
Make sure that the steering wheel is correctly locked.
| For safety reasons, only adjust the steering wheel when the vehicle is stationary. |
Power Assisted Steering
Never drive with an inadequately charged battery.
Variable power assisted steering
The variable power assisted steering system is equipped with an electronic control system which alters the level of assistance to suit the vehicle speed.
Steering is made easier during parking manoeuvres (for added comfort) whilst the force needed to steer increases progressively as the speed rises (for enhanced safety at high speeds).
| Never leave the steering wheel at full lock while stationary. |
| With the engine switched off, or if there is a system fault, it is still possible to turn the steering wheel. The force required will be greater. |
| Never switch off the ignition when travelling downhill, and avoid doing so in normal driving (assistance is not provided). |
