Renault Clio: Tyres: Removal - Refitting
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
- Remove:
- the wheel in question (see 35A, Wheels and tyres,
Wheel: Removal - Refitting, 35A-1),
- the balance weights,
- the valve mechanism.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
TYRE PRESSURE SENSOR
WARNING
To avoid any damage to the sensor, make sure
the tyre bead never presses on the sensor.

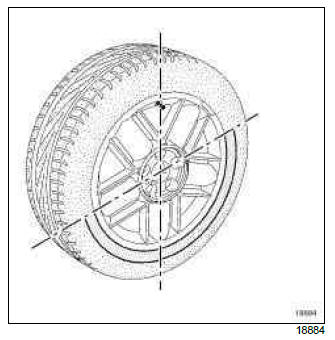

- Detach:
- the bead from the outside of the tyre, starting with
the side opposite the valve,
- the bead from the inside of the tyre.
- Position the tyre lever approximately 15 cm from the
valve on the outside of the wheel rim in order to remove
the exterior bead from the tyre.
- Remove the exterior bead of the tyre, finishing at the
valve.
- Position the tyre lever approximately 15 cm from the
valve on the outside of the wheel rim in order to remove
the bead from inside the tyre.
- Remove the interior bead of the tyre, finishing at the
valve.
REFITTING
I - REFITTING PREPARATION OPERATION
WITHOUT TYRE PRESSURE SENSOR
- parts always to be replaced: Tyre valve (13,05,
02,02)
- Lubricate the two tyre beads correctly using the
TYRE PASTE (see Vehicle: Parts and consumables
for the repair) (04B, Consumables - Products).
II - REFITTING OPERATION FOR PART
CONCERNED
- Engage the lower tyre bead approximately 15 cm after
the valve.
- Finish fitting the tyre at the valve.
- Fit the exterior bead approximately 15 cm after the
valve using the tyre lever.
- Inflate the tyre to 3.5 bar to press the tyre beads
against the wheel rim.
III - FINAL OPERATION
- Refit the valve mechanism.
- Inflate the tyre to the recommended pressure (see
35A, Wheels and tyres, Tyre pressure: Identification, 35A-15).
Note:
It is not necessary to drive the vehicle before and
after a new wheel is balanced.
- Balance the wheel (see 35A, Wheels and tyres,
Wheel: Balancing, 35A-7).
- Refit the wheel in question (see 35A, Wheels and
tyres, Wheel: Removal - Refitting, 35A-1).
Tyre: Repair
Perforation
There are two types of perforation:
- single perforation: perforation caused by nail etc. not
requiring a reinforced tyre boot and which can be repaired
when the tyres are cold,
- damage: rubber detachment etc. requiring repair and
reinforcement of damaged plies.
This repair method only covers single perforations.

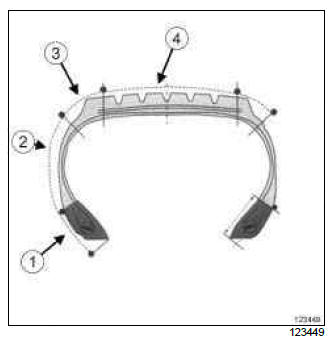

Tyre areas
Areas which cannot be repaired:
- tyre bead (1),
- shoulder (3).
Areas which can be repaired:

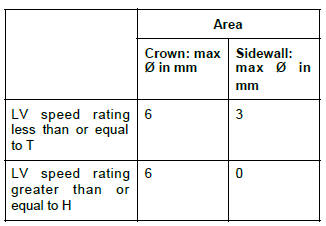

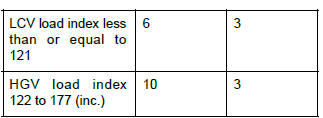

Perforation table *
LV: Light Vehicle
LCV: Light Commercial Vehicle
HGV: Heavy Goods Vehicle
* If the diameter of the puncture is greater than these
figures, replace the tyre.
The tyre cannot be repaired if:
- a compulsory marking has been worn away (see 35A,
Wheels and tyres, Tyres: Identification, 35A- 17),
- the interior of the tyre shows signs of under-inflation
or overloading,
- the rubber shows signs of chemical damage (hydrocarbons
and other corrosive substances),
- incorrect and irreversible repairs have previously
been made to the tyre,
- the carcass has been damaged,
- cuts or circumferential wear (cracks) are visible on the
interior or exterior of the tyre,
- the tyre bead has been damaged (ply visible),
- the tyre's bead wires are visible, damaged or deformed,
- the tyre shows an irregular wear pattern which may
impair vehicle handling,
- the repair requires two tyre boots to be overlapped,
- the manufacturer has expressly prohibited any repairs,
in writing,
- there is damage to the shoulder area (junction between
the sidewall and the crown),
- the angle of the perforation channel (hole) is greater
than 15
