Renault Clio: Centre console: Removal - Refitting
REMOVAL
I - REMOVAL PREPARATION OPERATION

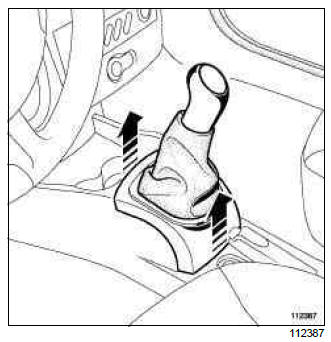

- Unclip the gear lever trim.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

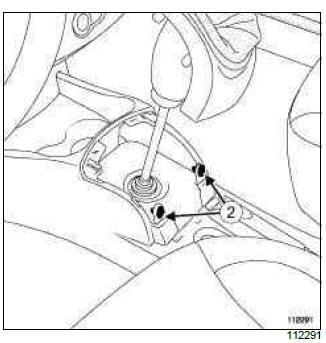

- Remove the bolts (2).
- Push the seats forward as far as possible.

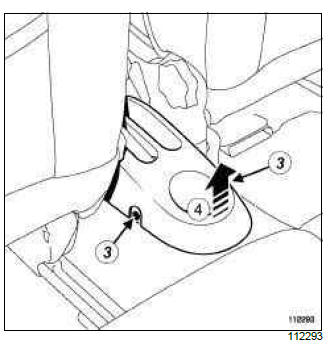

- Remove the bolts (3).
- Take out the centre console (4).
III - REFITTING OPERATION FOR PART
CONCERNED
- Refit:
- the centre console,
- the bolts (3) and (2).
IV - FINAL OPERATION.
- Clip on
- the gear lever trim,

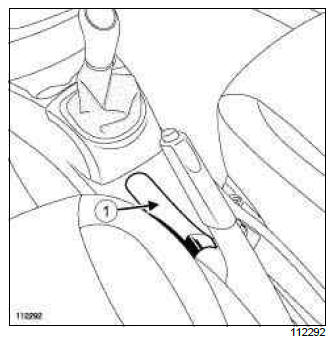

- the trim (1).
Glovebox: Removal - Refitting
REMOVAL
I - REMOVAL PREPARATION OPERATION
SCHOOL VEHICLE
- Remove the driving school electric control unit (see
Driving school repeater electrical control unit:
Removal - Refitting) (MR 392, 84A, Control - Signals).

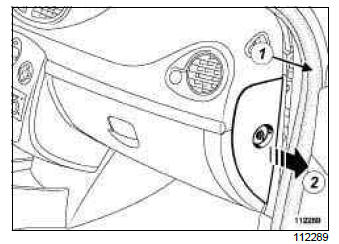

- Partially remove seal (1).

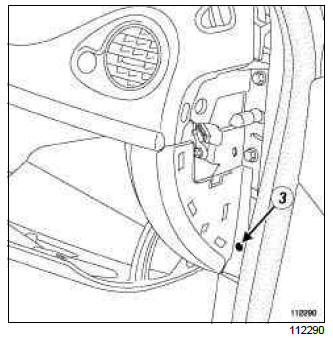

- Unclip the side panel (2).
- Disconnect the connector.


II - OPERATION FOR REMOVAL OF PART
CONCERNED

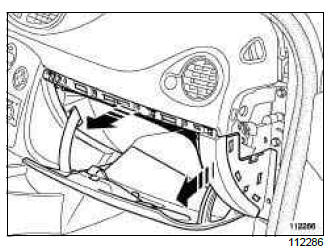

- Take out the glovebox.

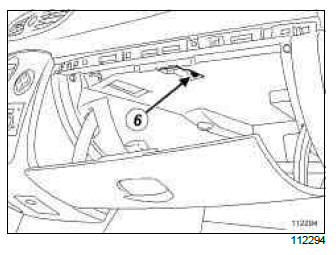

- Disconnect the connector.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED

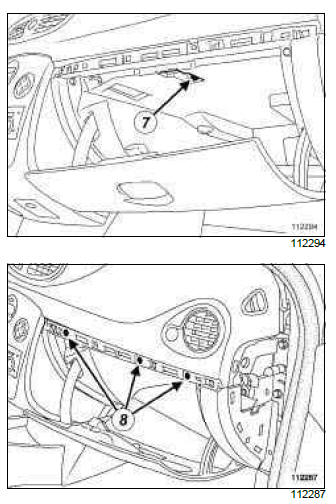

- Refit the bolts (7) and (8).
II - FINAL OPERATION.

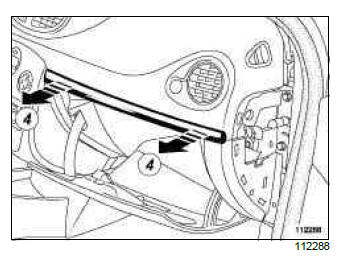

- Clip the trim piece in place.

- Refit:

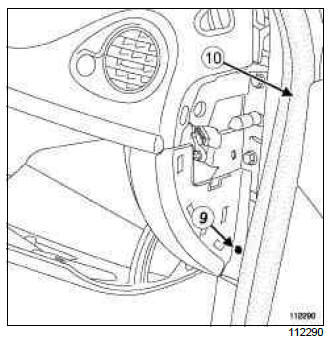

- the bolt (9),
- the side panel,
- the seal (10).
SCHOOL VEHICLE
- Refit the driving school electric control unit (see
Driving school repeater electrical control unit:
Removal - Refitting) (MR 392, 84A, Control - Signals).
