Renault Clio: Centre front panel: Removal - Refitting
Renault Clio III (2005-2013) Service Manual / Mechanisms And Accessories / Interior Equipment / Centre front panel: Removal - Refitting
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Remove:
- the centre console (see 57A, Interior equipment, Centre console: Removal - Refitting, 57A- 14),
- the radio and/or the navigation system (see Radio: Removal - Refitting) (MR 392, 86A, Radio) or (see Radio navigation: Removal - Refitting) (MR 392, 83C, On-Board Telematics System).

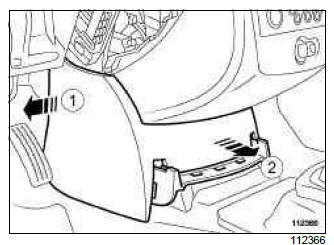

- Unclip the lower trim (1) and (2).
II - OPERATION FOR REMOVAL OF PART CONCERNED

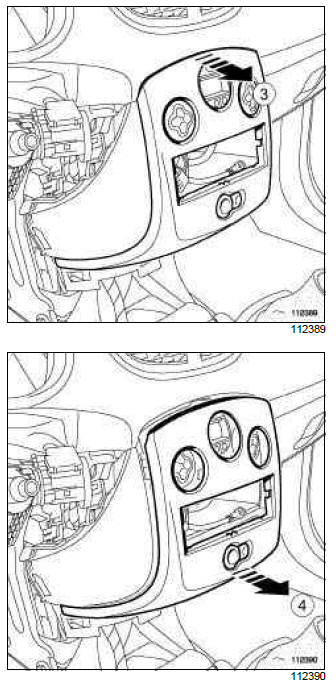

- Unclip the centre front panel (3) and (4).
- Disconnect the connectors.
REFITTING
I - REFITTING OPERATION FOR PART CONCERNED
- Connect the connectors.
- Clip in the centre front panel.
II - FINAL OPERATION.
- Refit:
- the lower trim,
- the radio and/or the navigation system (see Radio: Removal - Refitting) (MR 392, 86A, Radio) or (see Radio navigation: Removal - Refitting) (MR 392, 83C, On-Board Telematics System),
- the centre console (see 57A, Interior equipment, Centre console: Removal - Refitting, 57A- 14).
