Renault Clio: Front side door sliding window: Removal - Refitting
Note:
If the window is broken, replace the sealing film
(see Door sealing film: Removal - Refitting) (MR
393, 65A, Door sealing).
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Remove:
- the door trim (see Front side door trim: Removal
- Refitting) (MR 393,72A, Side opening element
trim),
- the interior weatherstrip.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

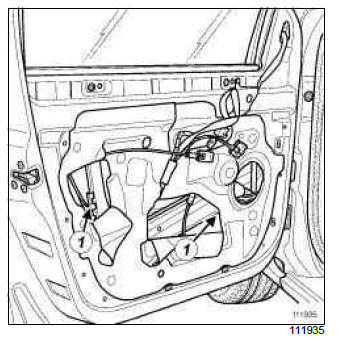

- Open the window lift mechanism access according
to the marking on the sealing film.

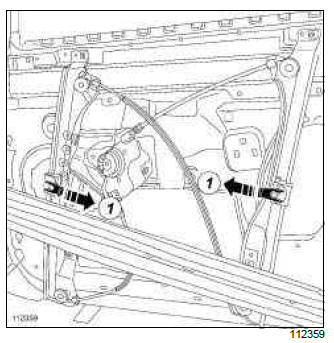

- Lower the window in order to access the clips (1) on
the sliding window.
- Remove the clips from the sliding window (1).

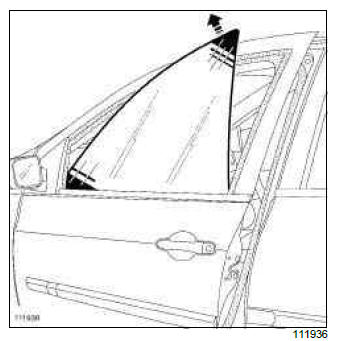

- Remove the front side sliding door window.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
- Refit:
- the sliding window,
- the sliding window clips.
- Carry out a function test.
II - FINAL OPERATION.
- Close the access flaps or replace (if the window is
broken) the sealing film (see Door sealing film: Removal
- Refitting) (MR 393, 65A, Door sealing).
- Refit:
- the interior weatherstrip,
- the door trim (see Front side door trim: Removal
- Refitting) (MR 393,72A, Side opening element
trim).
Rear side door sliding window: Removal - Refitting
B85 or K85
Note:
If the window is broken, replace the sealing film
(see Door sealing film: Removal - Refitting) (MR
393, 65A, Door sealing).
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Remove the rear door trim (see Rear side door
trim: Removal - Refitting) (MR 393, 72A, Side
opening element trim).

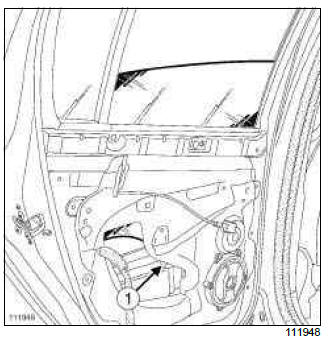

- Open the access flap at the window lift mechanism
according to the marking on the sealing film.

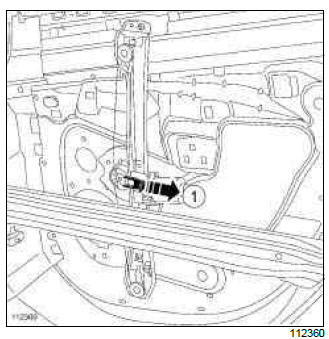

- Lower the window to access the sliding window clip (1).
- Remove the interior weatherstrip.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
- Remove the sliding window clip (1).

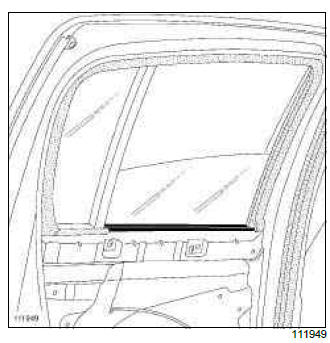

- Fit the window at the bottom of the door box section.

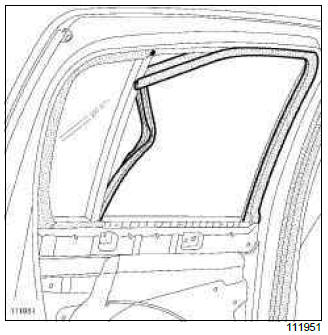

- Remove the rear side door glass run channel (see
Rear side door window run channel: Removal -
Refitting) (MR 393, 66A, Window sealing).

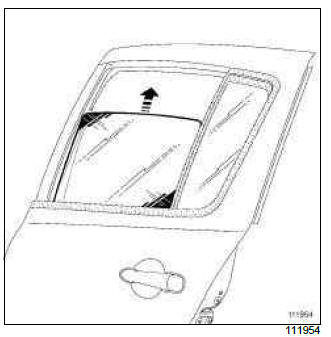

- Remove the rear side door's sliding window.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
- Fit:
- the rear side door's sliding window at the bottom of
the door box section,
- the rear side door glass run channel (see Rear
side door window run channel: Removal - Refitting)
(MR 393, 66A, Window sealing), take care
not to damage the outer weatherstrip,
- the sliding window on the window winder mechanism.
- the sliding window clip.
- Carry out a function test.
II - FINAL OPERATION.
- Close the access flaps or replace (if the window is
broken) the sealing film (see Door sealing film: Removal
- Refitting) (MR 393, 65A, Door sealing).
- Refit:
- the interior weatherstrip,
- the rear door trim (see Rear side door trim: Removal
- Refitting) (MR 393, 72A, Side opening element
trim).
