Renault Clio: Locking, unlocking the opening elements

Renault Clio IV (2014-2019) Owners Manual / Getting to know your vehicle / Locking, unlocking the opening elements

Locking/Unlocking the doors from the outside

This is done using the RENAULT Card; see the “RENAULT Card” information in Section 1.

In certain cases, the RENAULT card may not work:

It is then possible:

Using the key integrated in the RENAULT card

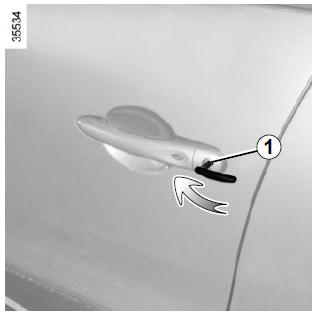

Renault Clio. Using the key integrated in the RENAULT card

Insert key 1 into the lock in the driver’s door and lock or unlock

Locking the doors manually

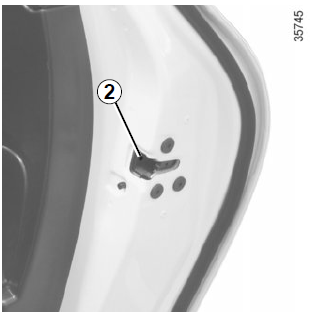

Renault Clio. Locking the doors manually

Turn screw 2 with the door open (using the end of the key) and close the door.

This means that the doors are then locked from the outside.

The doors may then only be opened from the inside or by using the key in the front left-hand door.

Interior locking/unlocking door control

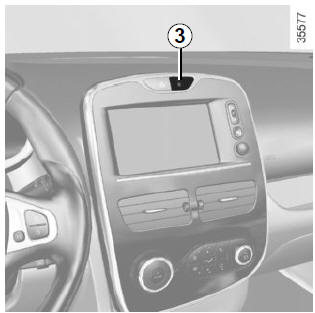

Renault Clio. Interior locking/unlocking door control

Switch 3 controls the doors, boot and, depending on the vehicle, the fuel filler flap simultaneously.

If a door or the tailgate is open or not closed properly, the doors and tailgate lock/unlock quickly.

If you need to transport objects with the boot open, the other opening elements can still be locked: with the engine stopped, press switch 3 for more than five seconds to lock the other opening elements.

Locking the doors without the RENAULT card

For example, in the event of a discharged battery or the RENAULT card temporarily not working, etc.

With the engine switched off and an opening element (door or boot) open, press and hold switch 3 for more than five seconds.

When the door is closed, all the doors and the tailgate will be locked.

Unlocking the vehicle from the outside is only possible with the RENAULT card in the vehicle's access zone or using the key integrated in the RENAULT card.

After locking/unlocking the vehicle using the buttons on the RENAULT card, "hands-free" locking and unlocking is deactivated.

To reactivate the “hands-free” mode: restart the vehicle.

Door and tailgate status indicator

With the ignition on, the warning light integrated in switch 3 informs you of the locking status of the opening elements:

When you lock the doors, the indicator light remains lit and then goes out.

Never leave your vehicle with the RENAULT card inside.

Driver’s responsibility If you decide to keep the doors locked when you are driving, remember that it may be more difficult for those assisting you to gain access to the passenger compartment in the event of an emergency.
