Cruise control - speed limiter: List and location of components
CRUISE CONTROL
I - LIST OF COMPONENTS
- Switch
- Steering wheel switch
- Brake switch
- Clutch switch
II - LOCATION OF COMPONENTS

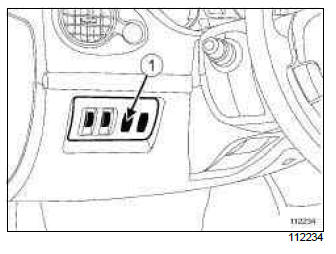

1 - Switch

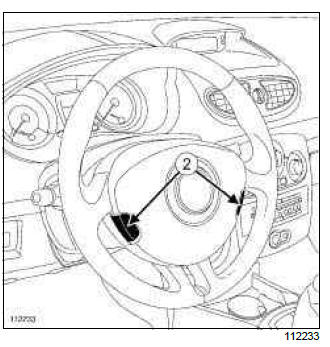

2 - Steering wheel switch

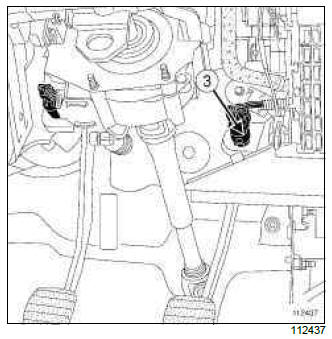

3 - Brake switch

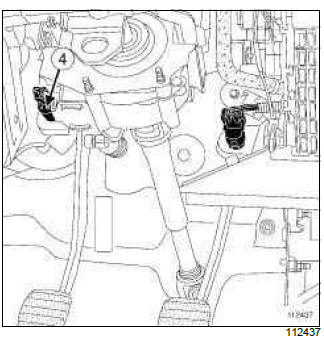

4 - Clutch switch
Switch: Removal - Refitting
CRUISE CONTROL
REMOVAL
I - REMOVAL PREPARATION OPERATION

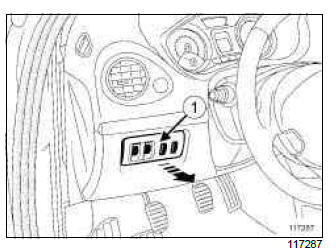

- Unclip the switch panel (1) using the (Car. 1363).
- Disconnect the connectors.
II - OPERATION FOR REMOVAL OF PART CONCERNED

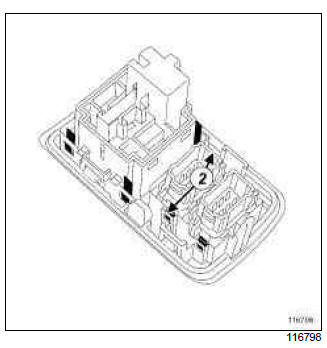

- Remove the switch by pressing on the clips (2).
REFITTING
I - REFITTING OPERATION FOR PART CONCERNED
- Refit the switch on the switch panel.
- Connect the connectors.
II - FINAL OPERATION.
- Clip the switch panel onto the lower cover.
