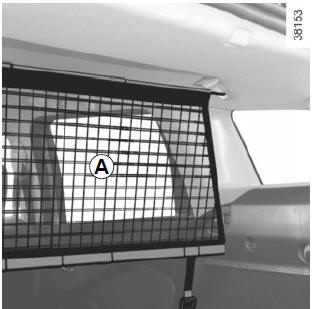

Renault Clio: Luggage net
Luggage net A
![Renault Clio. Luggage net](images/books/1978/4/index.65.jpg)
On equipped vehicles, this can be used
when transporting animals or luggage,
to separate them from the passenger
section.
It can be positioned:
- behind the front seats;
- behind the rear bench seat.
The luggage net is designed
to retain a maximum
weight of 10 kg.
Risk of injury |

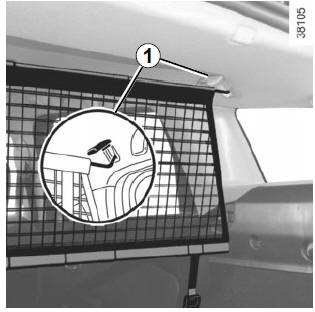

Fitting the luggage net behind the front seats
![Renault Clio. Fitting the luggage net behind the front seats](images/books/1978/4/index.66.jpg)
Inside the vehicle on each side:
- lift the cover 1 to access the upper
mounting ring of the net;
- fix the net strap hook onto the ring;
Do not install the luggage
net in this position when a
passenger is occupying a
rear seat |
![Renault Clio. Fitting the luggage net behind the front seats](images/books/1978/4/index.67.jpg)

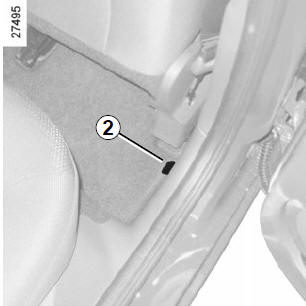

- to access the lower net ring 2 the
first time you use it, please contact
an authorised dealer;
- once you have accessed the lower
ring attachment, attach the hook of
the net strap to the ring 2;
- adjust the net strap so that it is taut.

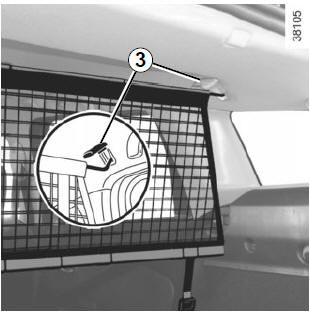

Fitting the luggage net behind the rear bench seat
![Renault Clio. Fitting the luggage net behind the rear bench seat](images/books/1978/4/index.68.jpg)
Inside the vehicle on each side:
- lift the cover 3 to access the upper
mounting ring for the net;
- fix the net strap hook onto the ring;
![Renault Clio. Fitting the luggage net behind the rear bench seat](images/books/1978/4/index.69.jpg)

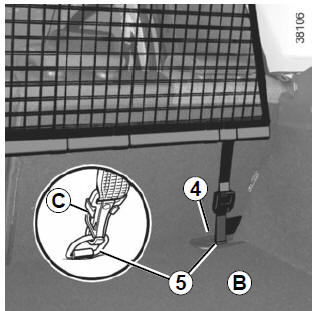

- in the boot, it is essential to attach
the hook of the lower mounting strap
of the net to the anchoring hook 5
identified by the marking 7 (if fitted
to a mobile floor B, open flap 4 to
access the anchoring hook 5);
- adjust the net strap C so that it is
taut.

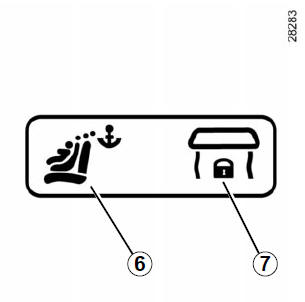

Marking
![Renault Clio. Marking](images/books/1978/4/index.70.jpg)
A marking on the boot floor indicates
the location of the seat rings ISOFIX 6
and luggage net 7.
A marking on the mobile floor indicates
the location of the access flaps for the
seat strap ISOFIX 6 and the luggage
net 7.
The luggage net must not
be used to restrain or hold
objects.
Risk of injury.
4 |
