Renault Clio: Heating resistor relays: Removal - Refitting
LEFT-HAND DRIVE
REMOVAL
I - REMOVAL PREPARATION OPERATION
![Renault Clio. Heating resistor relays: Removal - Refitting](images/books/2116/renault_clio_heating_resistor_relays_removal_refitting_3651.jpg)

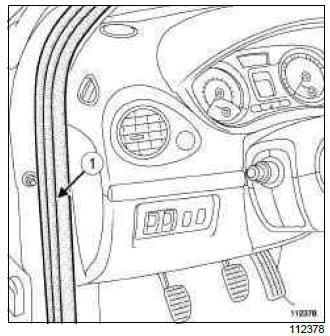

- Partially remove seal (1).
![Renault Clio. Heating resistor relays: Removal - Refitting](images/books/2116/renault_clio_heating_resistor_relays_removal_refitting_3652.jpg)

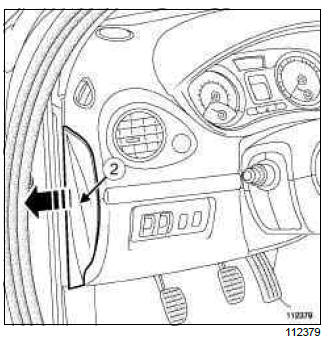

- Remove the side panel (2).
![Renault Clio. Heating resistor relays: Removal - Refitting](images/books/2116/renault_clio_heating_resistor_relays_removal_refitting_3653.jpg)

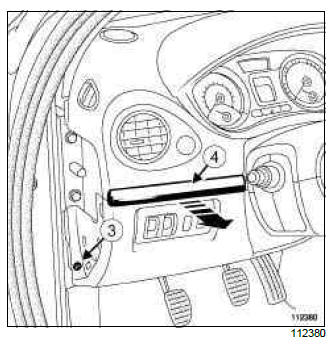

- Remove the bolt (3) from the base of the dashboard.
- Unclip the trim piece (4) from the driver's side dashboard
lower cover.
![Renault Clio. Heating resistor relays: Removal - Refitting](images/books/2116/renault_clio_heating_resistor_relays_removal_refitting_3654.jpg)

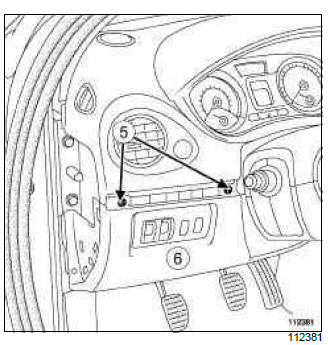

- Remove the bolts (5) from the driver's side dashboard
lower cover.
- Take out the driver's side dashboard lower cover (6).
- Disconnect the connectors from the driver's side
dashboard lower cover (depending on the equipment
level).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Heating resistor relays: Removal - Refitting](images/books/2116/renault_clio_heating_resistor_relays_removal_refitting_3655.jpg)

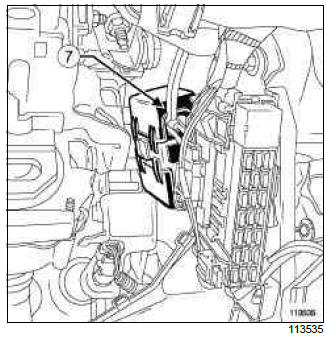

- Remove:
- the heating resistor relay box cover (7),
- the heater resistor relays.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
![Renault Clio. Heating resistor relays: Removal - Refitting](images/books/2116/renault_clio_heating_resistor_relays_removal_refitting_3656.jpg)

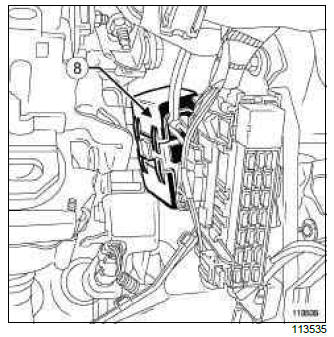

- Refit:
- heater resistor relays,
- the heating resistor relay box cover (8).
II - FINAL OPERATION
- Connect the connectors to the driver's side dashboard
lower cover.
- Position the driver's side dashboard lower cover.
- Refit:
- the bolts from the driver's side dashboard lower
cover,
- the bolts to the base of the dashboard.
- Clip the trim piece onto the driver's side dashboard
lower cover.
- Refit:
- the side panel,
- the seal.
RIGHT-HAND DRIVE
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Remove the glovebox (see Glovebox: Removal -
Refitting) (MR 393, 57A, Interior equipment).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Heating resistor relays: Removal - Refitting](images/books/2116/renault_clio_heating_resistor_relays_removal_refitting_3657.jpg)

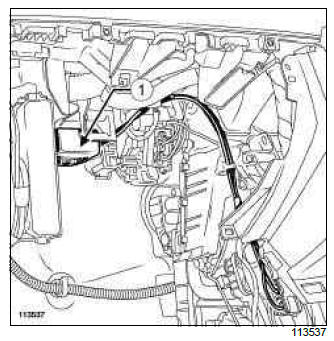

- Unclip the heater resistor relay box from the dashboard
cross member
- Remove:
- the heating resistor relay box cover (1),
- the heater resistor relays.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
![Renault Clio. Heating resistor relays: Removal - Refitting](images/books/2116/renault_clio_heating_resistor_relays_removal_refitting_3658.jpg)

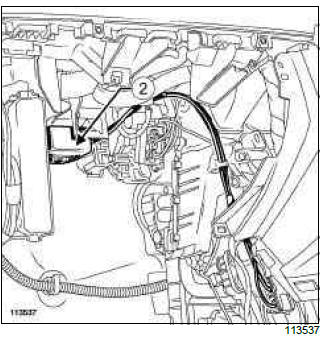

- Refit:
- heater resistor relays,
- the heating resistor relay box cover (2).
- Clip the heater resistor relay box on the dashboard
cross member
II - FINAL OPERATION.
- Refit the glovebox (see Glovebox: Removal - Refitting)
(MR 393, 57A, Interior equipment).
