Renault Clio: Rear air distribution duct: Removal - Refitting

REMOVAL
I - REMOVAL PREPARATION OPERATION
- Lock the airbag computer using the Diagnostic tool
(see Fault finding - Replacement of components)
(MR 394, 88C, Airbags and pretensioners).
- Disconnect the battery (see Battery: Removal - Refitting)
(MR 392, 80A, Battery).
- Remove the centre console (see Centre console:
Removal - Refitting) (MR 393, 57A, Interior equipment).

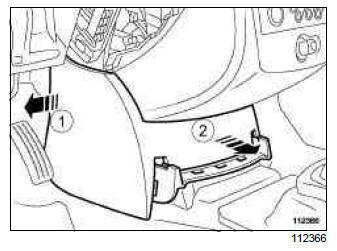

- Unclip the trim at the base of the dashboard at (1) and (2).
1 - Rear left-hand air distribution duct
- Remove the driver's seat (see Complete front seat:
Removal - Refitting) (MR 393, 75A, Front seat
frames and runners).
- Partially pull to one side the carpet underneath the
driver's seat.
2 - Rear right-hand air distribution duct
- Remove the front passenger seat (see Complete
front seat: Removal - Refitting) (MR 393, 75A,
Front seat frames and runners).
- Partially move the carpet under the front passenger
seat to one side.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
1 - Rear left-hand air distribution duct

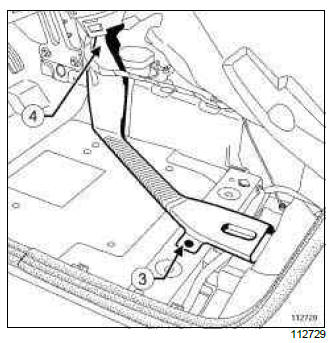

- Remove the clip (3) from the rear left-hand air distribution
duct.
- Lift away the rear left-hand air distribution duct at (4).
- Remove the rear left-hand air distribution duct.
2 - Rear right-hand air distribution duct

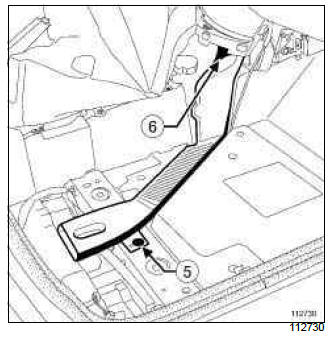

- Remove the clip (5) from the rear right-hand air distribution
duct.
- Lift away the rear right-hand air distribution duct at (6).
- Remove the rear right-hand air distribution duct.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
1 - Rear left-hand air distribution duct

- Refit:
- the rear left-hand air distribution duct,

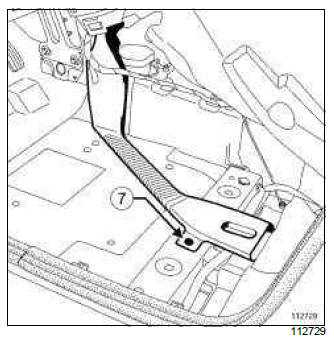

- the rear left-hand air distribution duct clip (7).
2 - Rear right-hand air distribution duct

- Refit:
- the rear right-hand air distribution duct,

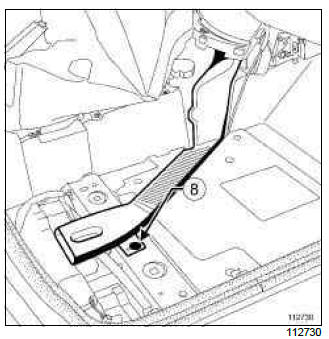

- the rear right-hand air distribution duct clip (8).
II - FINAL OPERATION.
1 - Rear left-hand air distribution duct
- Position the carpet underneath the driver's seat.
- Refit the driver's seat (see Complete front seat:
Removal - Refitting) (MR 393, 75A, Front seat
frames and runners).
2 - Rear right-hand air distribution duct
- Fit the carpet under the front passenger seat.
- Refit the front passenger seat (see Complete front
seat: Removal - Refitting) (MR 393, 75A, Front
seat frames and runners).
- Clip on the dashboard lower trim.
- Refit the centre console (see Centre console: Removal
- Refitting) (MR 393, 57A, Interior equipment).
- Connect the battery (see Battery: Removal - Refitting)
(MR 392, 80A, Battery).
- Unlock the airbag computer using the Diagnostic
tool (see Fault finding - Replacement of components)
(MR 394, 88C, Airbags and pretensioners).
