Renault Clio: Rear light bulb: Removal - Refitting

Renault Clio III (2005-2013) Service Manual / Electrical Equipment / Rear Lighting / Rear light bulb: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Remove the rear light on the wing (see 81A, Rear lighting, Rear wing light: Removal - Refitting, 81A-5).

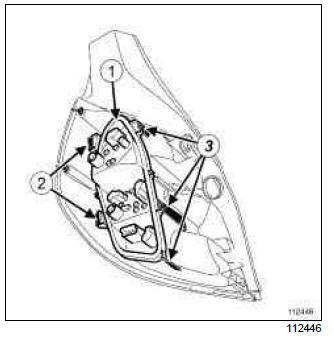

B85 or C85 or S85, and DOCUMENTATION PHASE 1

• Unclip the bulb holder plate (1) by pressing clips (2) and (3).

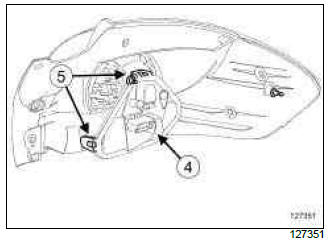

K85, and DOCUMENTATION PHASE 1

• Unclip the bulb holder plate by pressing clips (4) and (5).

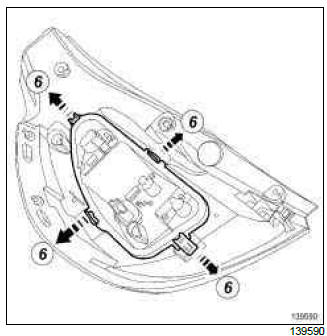

B85 or C85 or S85, and DOCUMENTATION PHASE 2

• Unclip the bulb holder plate by pressing on the clips (6).

• Remove the bulb holder plate.

II - OPERATION FOR REMOVAL OF PART CONCERNED

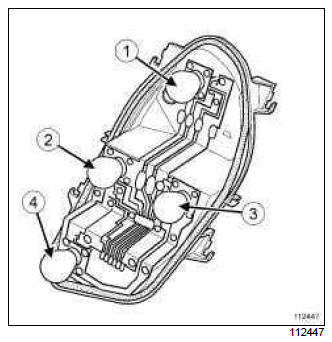

B85 or C85 or S85, and DOCUMENTATION PHASE 1

1. Brake light and side light bulb
2. Reversing light bulb
3. Direction indicator bulb
4. Rear fog light bulb

• Remove the bulbs from the bulb holders.

Note: The layout of bulbs is the same for both rear lights.

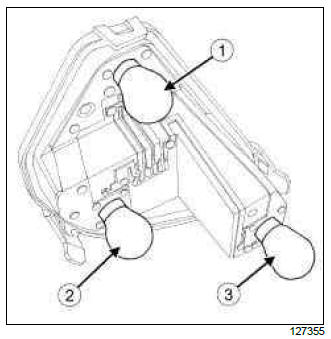

K85, and DOCUMENTATION PHASE 1

1. Brake light and side light bulb
2. Direction indicator bulb
3. Reversing light bulb

• Remove the bulbs from the bulb holders.

Note: The layout of bulbs is the same for both rear lights.

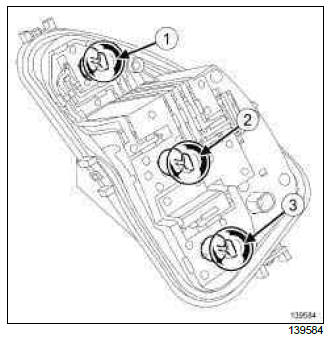

B85 or C85 or S85, and DOCUMENTATION PHASE 2

1. Brake light and side light bulb
2. Reversing light bulb
3. Direction indicator bulb

• Remove the bulbs from the bulb holders.

Note: The layout of bulbs is the same for both rear lights.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

Note: When replacing a bulb, only use approved bulbs.

• Refit the bulbs on the bulb holder plate.

II - FINAL OPERATION

• Clip the bulb holder plate onto the rear light.
• Refit the rear light on the wing.
