Renault Clio: Rear fog lights: Removal - Refitting
![Renault Clio. Rear fog lights: Removal - Refitting](images/books/2116/renault_clio_rear_fog_lights_removal_refitting_3971.jpg)
REMOVAL
OPERATION FOR REMOVAL OF PART
CONCERNED
K85, and DOCUMENTATION PHASE 1
![Renault Clio. Rear fog lights: Removal - Refitting](images/books/2116/renault_clio_rear_fog_lights_removal_refitting_3972.jpg)

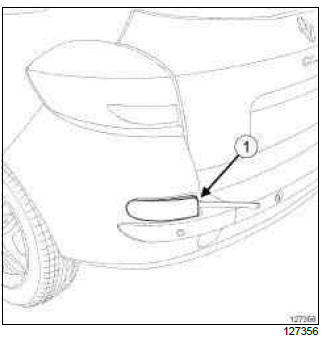

- Move the rear fog light using the tool (Car. 1363) as a lever at (1).
B85 or C85 or S85, and DOCUMENTATION
PHASE 2
![Renault Clio. Rear fog lights: Removal - Refitting](images/books/2116/renault_clio_rear_fog_lights_removal_refitting_3973.jpg)

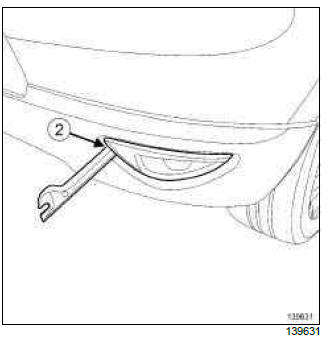

- Move the rear fog light using the tool (Car. 1363) as a lever at (2).
- Disconnect the rear fog light connector.
- Remove the rear fog light.
REFITTING
I - REFITTING PREPARATION OPERATION
K85, and DOCUMENTATION PHASE 1
![Renault Clio. Rear fog lights: Removal - Refitting](images/books/2116/renault_clio_rear_fog_lights_removal_refitting_3974.jpg)
- If the indicator light bulb needs replacing, remove:
- the bulb holder (3) by turning it forty-five degrees
counter-clockwise,
- the bulb from the bulb holder.
B85 or C85 or S85, and DOCUMENTATION
PHASE 2
![Renault Clio. Rear fog lights: Removal - Refitting](images/books/2116/renault_clio_rear_fog_lights_removal_refitting_3975.jpg)

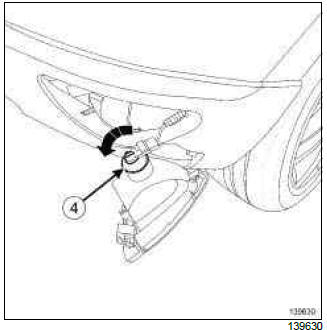

- If the indicator light bulb needs replacing, remove:
- the bulb holder (4) by turning it forty-five degrees
counter-clockwise,
- the bulb from the bulb holder.
- When replacing a bulb, use an approved bulb.
II - REFITTING OPERATION FOR PART
CONCERNED
- Refit:
- the bulb on the bulb holder,
- the bulb holder by turning it forty-five degrees
clockwise.
- Connect the rear fog light connector.
- Clip the fog light onto the rear bumper.
Number plate light: Removal - Refitting
REMOVAL
OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Number plate light: Removal - Refitting](images/books/2116/renault_clio_rear_fog_lights_removal_refitting_3976.jpg)

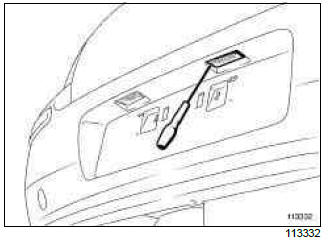

- Remove the licence plate light using a flat-blade
screwdriver.
- Disconnect the connector.
![Renault Clio. Number plate light: Removal - Refitting](images/books/2116/renault_clio_rear_fog_lights_removal_refitting_3977.jpg)

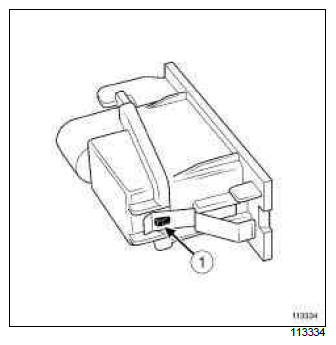

- Unclip the light at (1) to gain access to the bulb.
REFITTING
REFITTING OPERATION FOR PART CONCERNED
- When replacing a bulb, use an approved bulb.
![Renault Clio. Number plate light: Removal - Refitting](images/books/2116/renault_clio_rear_fog_lights_removal_refitting_3978.jpg)

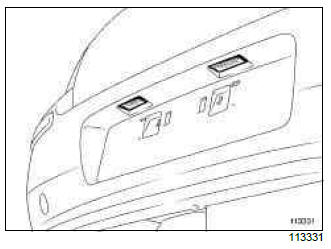

- Connect the connector.
- Refit the light.
