Renault Clio: Pressure sensor: Removal - Refitting
DP0
![Renault Clio. Pressure sensor: Removal - Refitting](images/books/2116/renault_clio_pressure_sensor_removal_refitting_2753.jpg)
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on the two-post lift (see 02A,
Lifting equipment, Vehicle: Towing and lifting).
- Disconnect the battery (see 80A, Battery, Battery:
Removal - Refitting).
- Remove:
- the front left-hand wheel (see 35A, Wheels and tyres,
Wheel: Removal - Refitting),
- the front left-hand wheel arch liner (see MR Bodywork,
55A, Exterior protection, Wheel arch liner:
Removal - Refitting),
- the engine undertray.
- Remove:
- the battery tray (see 80, Battery, Battery tray: Removal
- Refitting),
- the air filter unit (see 12A, Fuel mixture, Air filter
unit: Removal - Refitting).
![Renault Clio. Pressure sensor: Removal - Refitting](images/books/2116/renault_clio_pressure_sensor_removal_refitting_2754.jpg)

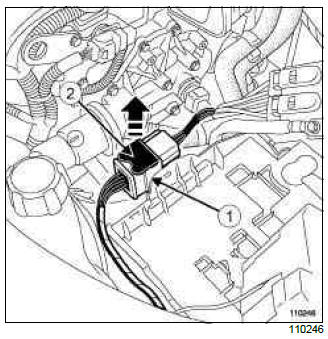

- Disconnect the modular connector (1) by pulling the sliding (2).
![Renault Clio. Pressure sensor: Removal - Refitting](images/books/2116/renault_clio_pressure_sensor_removal_refitting_2755.jpg)

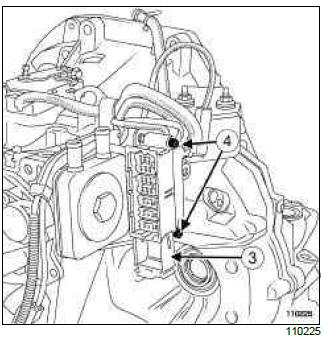

- Disconnect the gearbox connector from the mounting plate by pulling the
slide (3).
- Remove the gearbox connector mounting bolts (4)
from the plate.
![Renault Clio. Pressure sensor: Removal - Refitting](images/books/2116/renault_clio_pressure_sensor_removal_refitting_2756.jpg)

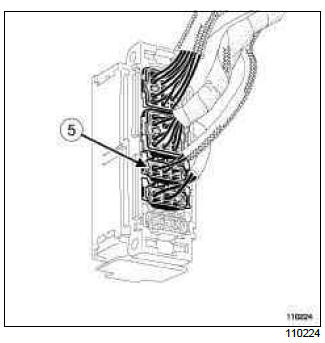

- Remove the green connector (3-track) (5) from the
gearbox connector on the mounting plate.
- Release the pressure sensor wiring harness from
the automatic transmission wiring duct.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Pressure sensor: Removal - Refitting](images/books/2116/renault_clio_pressure_sensor_removal_refitting_2757.jpg)

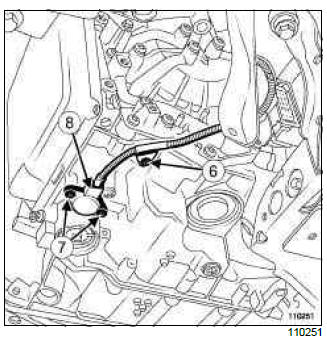

- Remove:
- the wiring harness mounting bolt (6),
- the pressure sensor mounting bolts (7),
- the pressure sensor (8).
WARNING
Protect the connector by sliding it into a waterproof
plastic bag.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
- Refit:
- the pressure sensor,
- the pressure sensor mounting bolts,
- the wiring harness mounting bolt.

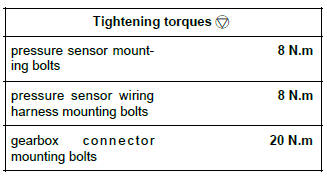

- Tighten to torque:
- the pressure sensor mounting bolts (8 N.m),
- the pressure sensor wiring harness mounting
bolts (8 N.m).
- Connect the pressure sensor harness from the automatic
transmission wiring duct.
II - FINAL OPERATION
- Refit the gearbox connector mounting plate mounting
bolts.
- Torque tighten the gearbox connector mounting
bolts (20 N.m).
- Connect the gearbox connector on the mounting
plate by pulling out the slide.
- Refit:
- the air filter unit (see 12A, Fuel mixture, Air filter
unit: Removal - Refitting),
- the battery protective base (see 80A, Battery, Battery
tray: Removal - Refitting),
- Connect the modular connector by reinserting the
slide.
- Refit the battery shield (see 80A, Battery, Battery
tray: Removal - Refitting).
- Refit:
- the front left-hand wheel arch liner (see 55A,
Bodywork, Exterior protection, Wheel arch liner:
Removal - Refitting),
- the engine undertray,
- the front left-hand wheel (see 35A, Wheels and tyres,
Wheel: Removal - Refitting).
- Connect the battery (see 80A, Battery, Battery: Removal
- Refitting).
- Check the gearbox oil level (see 23A, Gearbox oil:
Draining - Filling).
