Renault Clio: Wheel trims - wheel

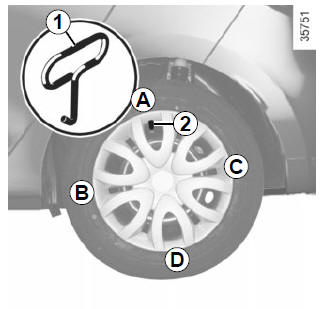

Remove the wheel trim using hubcap tool 1 (located in the tool kit) by engaging the hook in the opening near valve 2.
To refit it, align it with valve 2. Push the retaining hooks in fully, starting with side A near the valve, followed by B and C, finishing at D opposite the valve.
| Do not leave the tools unsecured inside the vehicle as they may come loose under braking. After use, check that all the tools are correctly clipped into the tool kit, then position it correctly in its housing: risk of injury. |
