Renault Clio: Audible and visual signals
Renault Clio IV (2014-2019) Owners Manual / Getting to know your vehicle / Audible and visual signals
Horn

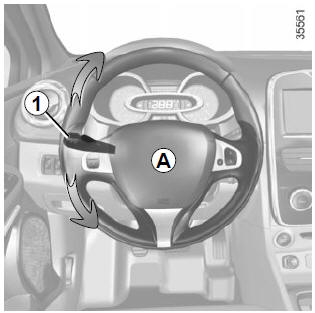

Press steering wheel boss A.
Headlight flasher
Pull stalk 1 towards you to flash the headlights.
Direction indicators
Move stalk 1 parallel to the steering wheel and in the direction you are going to turn it.
One-touch mode
When driving, it is possible that the steering wheel may not be turned sufficiently to return the stalk automatically to its starting position.
In this case, move the stick 1 to halfway, then release it: the stalk returns to its original point and the indicator light flashes three times
Hazard warning lights

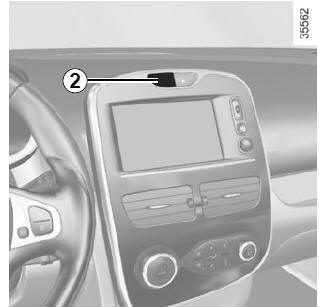

Press switch 2.
This switch activates all four direction indicators and the side indicator lights simultaneously. It must only be used in an emergency to warn drivers of other vehicles that you have had to stop in an area where stopping is prohibited or unexpected, or that you are obliged to drive under special conditions.
Depending on the vehicle, the hazard warning lights may come on automatically under heavy deceleration.
You can switch them off by pressing switch 2 once.
