Renault Clio: Automatic gearbox: Identification
Renault Clio III (2005-2013) Service Manual / Transmission / Automatic Gearbox / Automatic gearbox: Identification
DP0

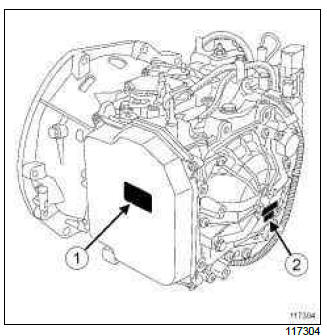

The automatic transmission series number can be found in two places: on a label on the hydraulic distributor cover (1) and etched onto the outer casing (2) on the wheel side.
