Renault Clio: Brake compensator: Removal - Refitting
WITHOUT ANTI-LOCK BRAKING SYSTEM
![Renault Clio. Brake compensator](images/books/2116/renault_clio_brake_compensator_removal_refitting_3355.jpg)
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 392, 02A, Lifting equipment).
- Fit the tool pedal press in order to limit the outflow
of the brake fluid.
WARNING
Prepare for the flow of fluid, and protect the surrounding
components.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Brake compensator](images/books/2116/renault_clio_brake_compensator_removal_refitting_3356.jpg)

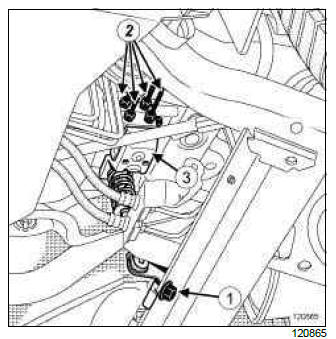

- Remove the bolt (1) of the brake limiter rod on the
rear axle.
- Mark the position of the brake pipes (2) at the brake limiter (3).
- Disconnect the brake pipes (2) from the brake limiter (3).
![Renault Clio. Brake compensator](images/books/2116/renault_clio_brake_compensator_removal_refitting_3357.jpg)

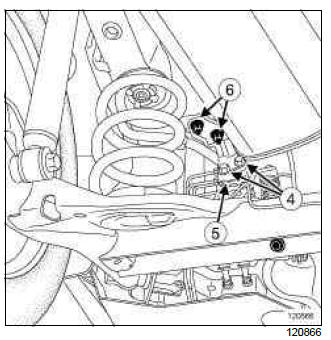

- Remove:
- the bolts (4) of the brake limiter (5),
- the brake limiter (5).
- Undo, but do not remove, the bolts (6) of the brake
limiter retaining bracket.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
- Refit:
- the brake limiter,
- the brake limiter bolts.

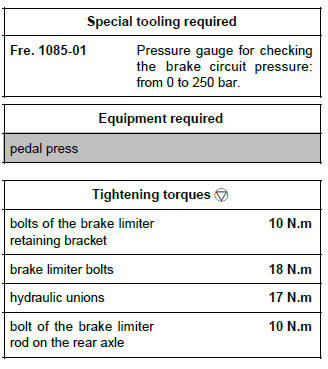

- Tighten to torque:
- the bolts of the brake limiter retaining bracket
(10 N.m),
- the brake limiter bolts (18 N.m).
- Connect the brake pipes on the brake limiter as
marked at the time of the removal.
- Torque tighten the hydraulic unions (17 N.m).
- Refit the bolt of the brake limiter rod on the rear axle.
- Torque tighten the bolt of the brake limiter rod on
the rear axle (10 N.m).
II - FINAL OPERATION.
- Remove the pedal press.
- Bleed the brake circuit using the tool (Fre. 1085-01)
(see 30A, General information, Braking circuit:
Bleed, 30A-4).
