Before removing the clutch, check:

Before refitting the clutch, check:

WARNING

To prevent the clutch from juddering or slipping, do not grease the output shaft or the clutch plate hub.

During refitting:

Check the direction of the clutch plate.

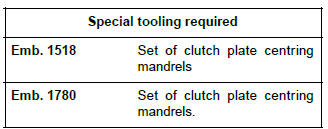

Centre the clutch plate using the (Emb. 1518) or (Emb.1780).

Gradually torque tighten the clutch pressure plate bolts.

After refitting, check:

Clutch: Specifications

D4F, and 740 or 742 or 764

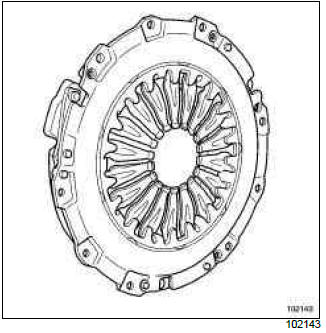

Pressure plate

Renault Clio. Clutch: Specifications

Pressure plate part no: 180 CPOE 3300

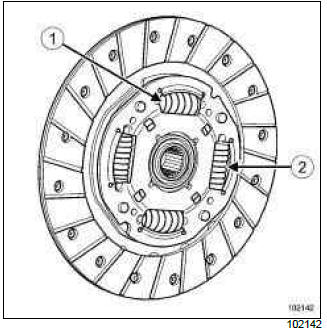

Drive plate

Renault Clio. Clutch: Specifications

Plate external diameter: 181.5 mm
Plate thickness: 6.7 mm
Number of splines: 26

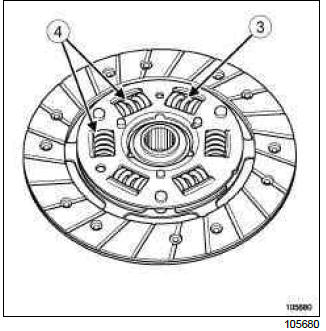

Colour of springs (3) : Grey
Colour of springs (4) : Black

D4F, and 784 or 786

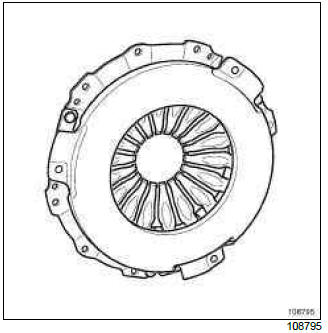

Pressure plate

Renault Clio. Clutch: Specifications

Pressure plate part no.: 200 CPOE 3900

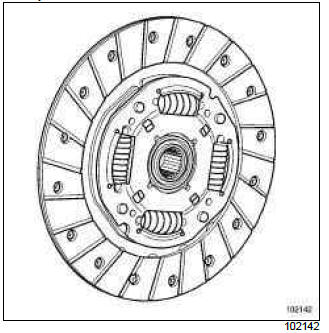

Drive plate

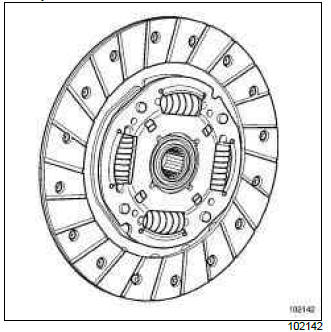

Renault Clio. Clutch: Specifications

Plate external diameter: 200 mm
Plate thickness: 7 mm
Number of splines: 26

F4R or K4J or K4M

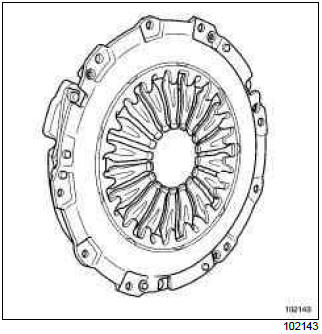

Pressure plate

Renault Clio. Clutch: Specifications

Pressure plate part no: 200 CPOEH 3900

Drive plate

Renault Clio. Clutch: Specifications

Plate external diameter: 200 mm
Plate thickness: 6.9 mm
Number of splines: 26
Colour of springs: Grey

K9K

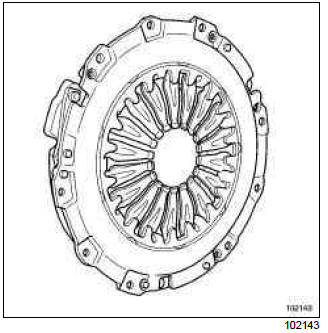

Pressure plate

Renault Clio. Clutch: Specifications

Pressure plate part no: 215 CPoVK 4400

Drive plate

Renault Clio. Clutch: Specifications

Plate outer diameter: 215 mm
Plate thickness: 6.9 mm
Number of splines: 26
Colour of springs (1) : Red and Black
Colour of springs (2) : Grey

M4R, and TL4

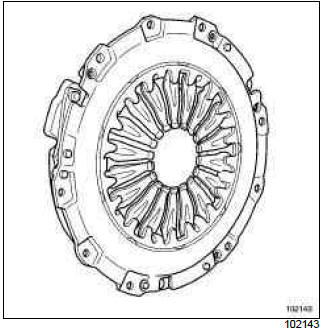

Pressure plate

Renault Clio. Clutch: Specifications

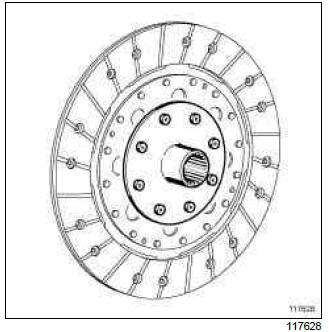

Drive plate

Renault Clio. Clutch: Specifications

Plate outer diameter: 215 mm
Plate thickness: 6.7 mm
Number of splines: 26
