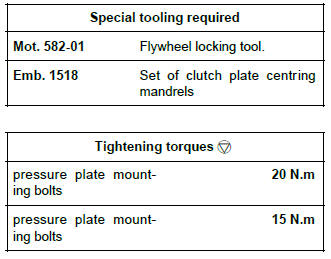

Renault Clio: Pressure plate - Disc: Removal - Refitting
D4F or K4J or K4M or K9K, and 750 or 752 or 760 or 762 or 766 or 768, and
JH3 or JR5
![Renault Clio. Pressure plate - Disc: Removal - Refitting](images/books/2116/renault_clio_pressure_plate_disc_removal_refitting_2444.jpg)
REMOVAL
- Remove the gearbox (see 21A, Manual gearbox,
Manual gearbox: Removal - Refitting, 21A-
12).
![Renault Clio. Pressure plate - Disc: Removal - Refitting](images/books/2116/renault_clio_pressure_plate_disc_removal_refitting_2445.jpg)

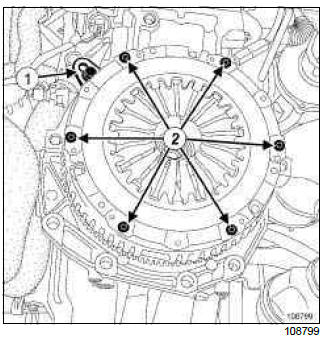

- Lock the engine using the (Mot. 582-01) (1).
- Remove the pressure plate mounting bolts (2).
- Remove the friction plate.
- Replace any faulty parts.
REFITTING
![Renault Clio. Pressure plate - Disc: Removal - Refitting](images/books/2116/renault_clio_pressure_plate_disc_removal_refitting_2446.jpg)
WARNING
- Degrease the flywheel friction face.
- Clean the clutch shaft splines.
- Refit the assembly without lubricant.
- Position the clutch plate.

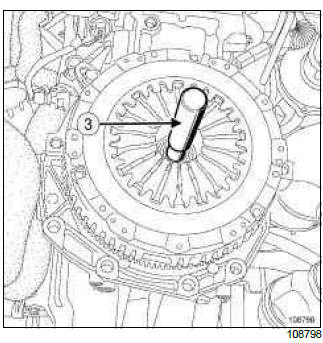

- Centre the clutch plate using the (Emb. 1518) (3).
- Screw into place gradually in a radial pattern.
D4F or K4J or K4M
- Torque tighten:
- pressure plate mounting bolts (20 N.m),
K9K, and 750 or 752 or 760 or 762 or 766 or 7
- Torque tighten:
- pressure plate mounting bolts (15 N.m),
- Remove the tool (Mot. 582-01).
- Refit the gearbox (see 21A, Manual gearbox,
Manual gearbox: Removal - Refitting, 21A-
12).
F4R, and TL4

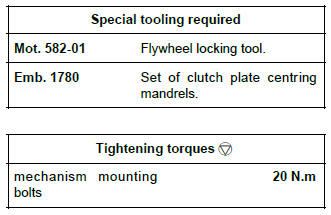

![Renault Clio. Pressure plate - Disc: Removal - Refitting](images/books/2116/renault_clio_pressure_plate_disc_removal_refitting_2447.jpg)
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 392, 02A, Lifting equipment).
- Disconnect the battery (see ) (MR 392, 80A, Battery).
- Remove the gearbox (see 21A, Manual gearbox,
Manual gearbox: Removal - Refitting, 21A- 12).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Pressure plate - Disc: Removal - Refitting](images/books/2116/renault_clio_pressure_plate_disc_removal_refitting_2448.jpg)

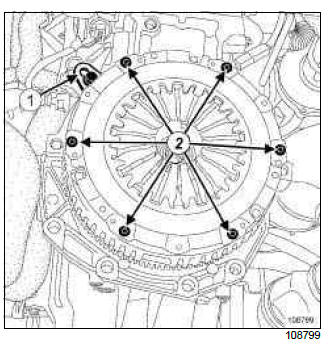

- Lock the engine using the (Mot. 582-01) (1).
- Remove the pressure plate mounting bolts (2).
- Remove the pressure plate and the friction plate.
REFITTING
I - REFITTING PREPARATION OPERATION
- Degrease the flywheel friction face.
- Clean the clutch shaft splines.
II - REFITTING OPERATION FOR PART
CONCERNED
![Renault Clio. Pressure plate - Disc: Removal - Refitting](images/books/2116/renault_clio_pressure_plate_disc_removal_refitting_2449.jpg)

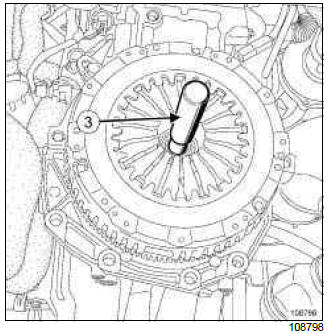

- Position the clutch plate.
- Centre the clutch plate using the (Emb. 1780) (3).
- Fit the pressure plate.
- Gradually tighten the clutch pressure plate mounting
bolts radially.
- Torque tighten the mechanism mounting bolts (20
N.m).
III - FINAL OPERATION
- Remove the (Mot. 582-01) and (Emb. 1780).
- Refit the gearbox (see 21A, Manual gearbox, Manual
gearbox: Removal - Refitting, 21A-12).
- Connect the battery (see ) (MR 392, 80A, Battery).

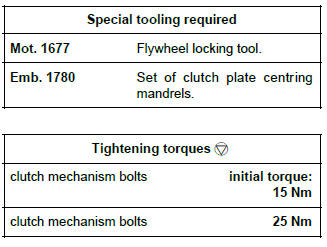

M4R, and TL4
![Renault Clio. Pressure plate - Disc: Removal - Refitting](images/books/2116/renault_clio_pressure_plate_disc_removal_refitting_2450.jpg)
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 392, 02A, Lifting equipment).
- Disconnect the battery (see ) (MR 392, 80A, Battery).
- Remove the gearbox (see 21A, Manual gearbox,
Manual gearbox: Removal - Refitting, 21A- 12).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Pressure plate - Disc: Removal - Refitting](images/books/2116/renault_clio_pressure_plate_disc_removal_refitting_2451.jpg)

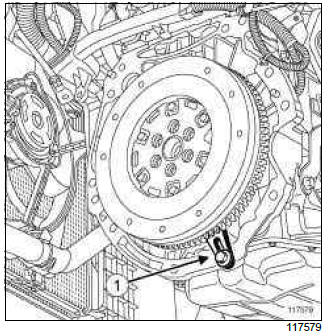

- Lock the engine using tool (Mot. 1677) (1).
![Renault Clio. Pressure plate - Disc: Removal - Refitting](images/books/2116/renault_clio_pressure_plate_disc_removal_refitting_2452.jpg)

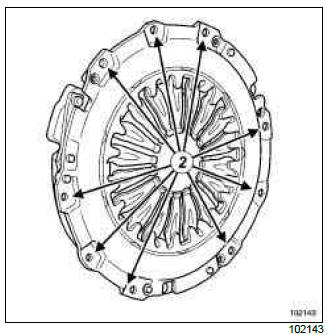

- Slide the bolts (2) out of the mechanism.
- Remove the mechanism.
![Renault Clio. Pressure plate - Disc: Removal - Refitting](images/books/2116/renault_clio_pressure_plate_disc_removal_refitting_2453.jpg)

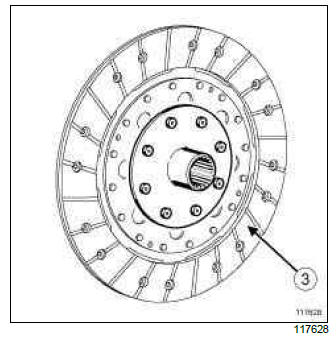

- Remove the clutch plate (3).
REFITTING
I - REFITTING PREPARATION OPERATION
- Degrease the flywheel friction face.
- Clean the clutch shaft splines.
II - REFITTING OPERATION FOR PART
CONCERNED
![Renault Clio. Pressure plate - Disc: Removal - Refitting](images/books/2116/renault_clio_pressure_plate_disc_removal_refitting_2454.jpg)

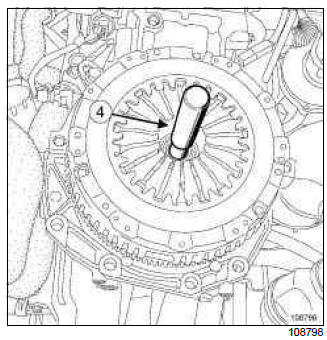

- Position the clutch driven plate.
- Centre the clutch plate using tool (Emb. 1780) (4).
![Renault Clio. Pressure plate - Disc: Removal - Refitting](images/books/2116/renault_clio_pressure_plate_disc_removal_refitting_2455.jpg)

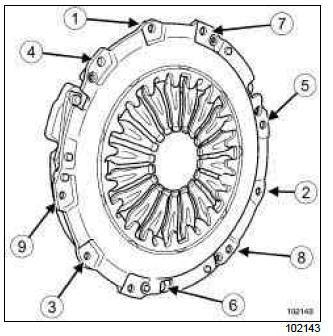

- Pretighten to torque and in order the clutch mechanism
bolts (initial torque: 15 Nm).
- Torque tighten the clutch mechanism bolts (25
Nm).
![Renault Clio. Pressure plate - Disc: Removal - Refitting](images/books/2116/renault_clio_pressure_plate_disc_removal_refitting_2456.jpg)

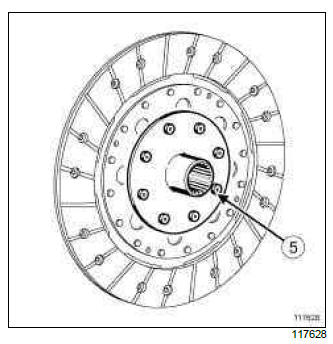

Note:
Position the clutch plate with the section (5)
against the flywheel.
III - FINAL OPERATION
- Remove the (Mot. 1677) and (Emb. 1780).
- Refit the gearbox (see 21A, Manual gearbox, Manual
gearbox: Removal - Refitting, 21A-12).
- Connect the battery (see ) (MR 392, 80A, Battery).

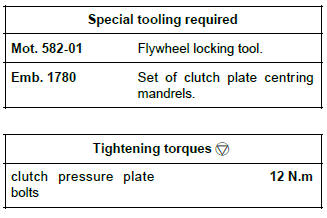

K9K, and TL4
![Renault Clio. Pressure plate - Disc: Removal - Refitting](images/books/2116/renault_clio_pressure_plate_disc_removal_refitting_2457.jpg)
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Remove the gearbox (see 21A, Manual gearbox,
Manual gearbox: Removal - Refitting, 21A- 12).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Pressure plate - Disc: Removal - Refitting](images/books/2116/renault_clio_pressure_plate_disc_removal_refitting_2458.jpg)

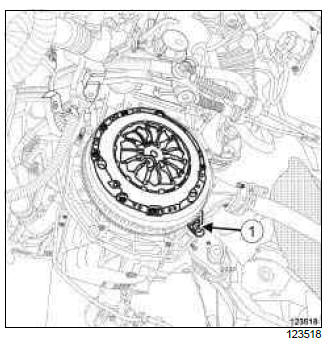

- Lock the engine using the (1) (Mot. 582-01).
![Renault Clio. Pressure plate - Disc: Removal - Refitting](images/books/2116/renault_clio_pressure_plate_disc_removal_refitting_2459.jpg)

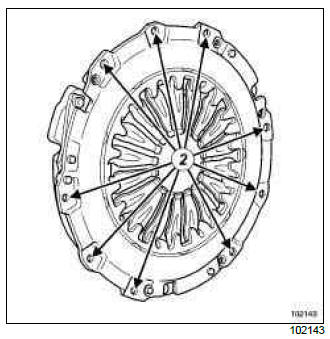

- Slide the bolts (2) out of the mechanism.
- Remove the mechanism.
![Renault Clio. Pressure plate - Disc: Removal - Refitting](images/books/2116/renault_clio_pressure_plate_disc_removal_refitting_2460.jpg)

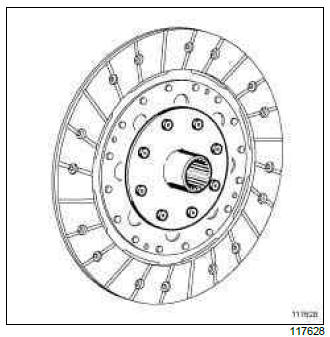

REFITTING
I - REFITTING PREPARATION OPERATION
- Degrease the flywheel friction face.
- Clean the clutch shaft splines.
II - REFITTING OPERATION FOR PART
CONCERNED
![Renault Clio. Pressure plate - Disc: Removal - Refitting](images/books/2116/renault_clio_pressure_plate_disc_removal_refitting_2461.jpg)

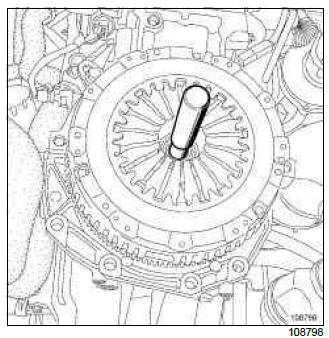

- Position the clutch plate.
- Centre the clutch plate using the (Emb. 1780).
![Renault Clio. Pressure plate - Disc: Removal - Refitting](images/books/2116/renault_clio_pressure_plate_disc_removal_refitting_2462.jpg)

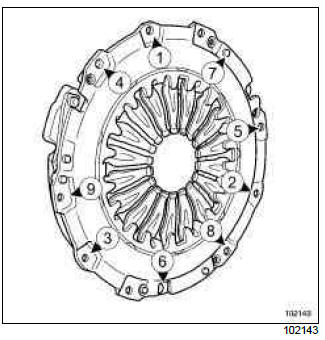

- Tighten to torque and in order the clutch pressure
plate bolts (12 N.m).
![Renault Clio. Pressure plate - Disc: Removal - Refitting](images/books/2116/renault_clio_pressure_plate_disc_removal_refitting_2463.jpg)

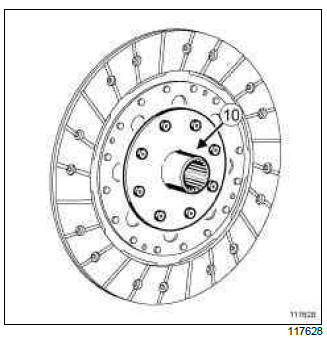

- Position the clutch plate with the section (10) against
the flywheel.
III - FINAL OPERATION
- Remove the (Mot. 582-01) then the (Emb. 1780).
- Refit the gearbox (see 21A, Manual gearbox, Manual
gearbox: Removal - Refitting, 21A-12).
