Renault Clio: Drive plate: Removal - Refitting
Renault Clio III (2005-2013) Service Manual / Engine And Peripherals / Engine And Cylinder Block Assembly / Drive plate: Removal -
Refitting
K4M, and DP0

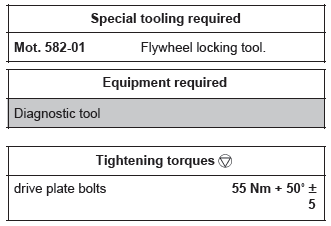

REMOVAL
I - REMOVAL PREPARATION OPERATION
- Remove the gearbox (see Automatic gearbox: Removal - Refitting).
II - OPERATION FOR REMOVAL OF PART CONCERNED

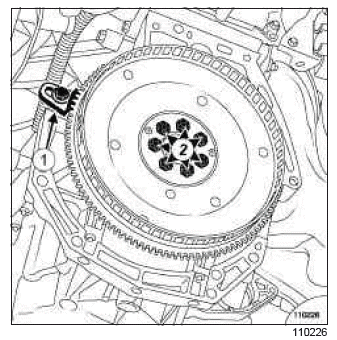

- Set up the (Mot. 582-01) (2).
- Remove:
- the bolts (2),
- the drive plate,
- tool (Mot. 582-01).
REFITTING
I - REFITTING PREPARATIONS OPERATION
- Check that the drive plate is not damaged (run-out tolerance of 0.2 mm on the outer diameter).
II - REFITTING OPERATION FOR PART CONCERNED
- Fit the drive plate, ensuring it is correctly positioned in relation to the centring pins.
- Apply LOCTITE FRENBLOC to the bolt threads.
- Tighten the bolts on the drive plate.
- Torque and angle tighten the drive plate bolts (55
Nm + 50
