Renault Clio: Expansion valve - compressor connecting pipe: Removal - Refitting

Renault Clio III (2005-2013) Service Manual / Air Conditioning / Air Conditioning / Expansion valve - compressor connecting pipe: Removal - Refitting

D4F or K4J or K4M, and AIR CONDITIONING or CLIMATE CONTROL

Renault Clio. Expansion valve - compressor connecting pipe: Removal - Refitting

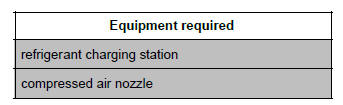

IMPORTANT

To avoid all risk of damage to the systems, apply the safety and cleanliness instructions and operation recommendations before carrying out any repair:

REMOVAL

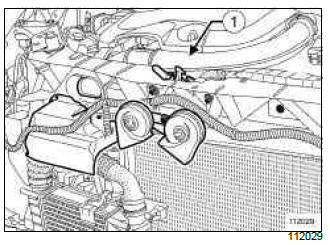

I - REMOVAL PREPARATION OPERATION

Renault Clio. Expansion valve - compressor connecting pipe: Removal - Refitting

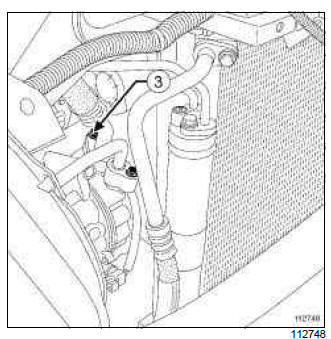

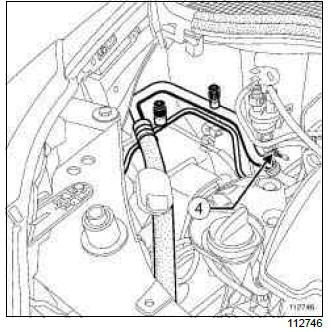

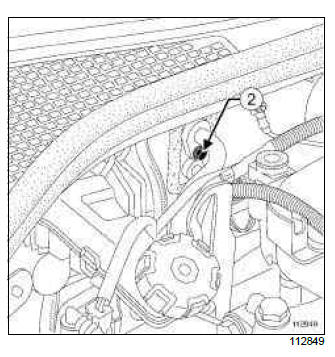

II - OPERATION FOR REMOVAL OF PART CONCERNED

Renault Clio. Expansion valve - compressor connecting pipe: Removal - Refitting

WARNING

In order to avoid any refrigerant leaks, do not damage (deform, twist, etc.) the pipe.

WARNING

To prevent moisture from entering the system, place plugs on the cold loop components which are open to the air.

Note: Use blanking plugs for the fuel circuits with part no. 77 01 208 229 or 77 01 476 857 to plug any openings exposed to the open air. They must be clean. Do not use any which have already been used to plug a fuel circuit.

Renault Clio. Expansion valve - compressor connecting pipe: Removal - Refitting

WARNING

In order to avoid any refrigerant leaks, do not damage (deform, twist, etc.) the pipe.

WARNING

To prevent moisture from entering the system, place plugs on the cold loop components which are open to the air.

Note: Use blanking plugs for the fuel circuits with part no. 77 01 208 229 or 77 01 476 857 to plug any openings exposed to the open air. They must be clean. Do not use any which have already been used to plug a fuel circuit.

Renault Clio. Expansion valve - compressor connecting pipe: Removal - Refitting

REFITTING

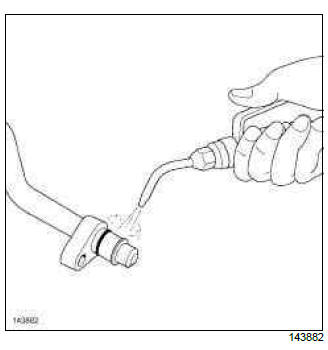

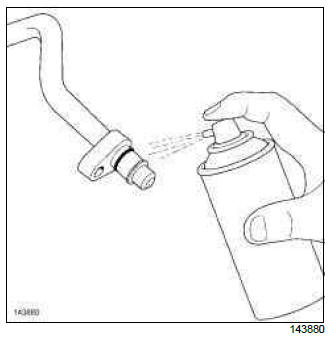

I - REFITTING PREPARATION OPERATION

WARNING

Do not remove the blanking plugs from each component until the last moment.

Also, do not remove the components from their packaging until they are to be fitted to the vehicle.

Renault Clio. Expansion valve - compressor connecting pipe: Removal - Refitting

Renault Clio. Expansion valve - compressor connecting pipe: Removal - Refitting

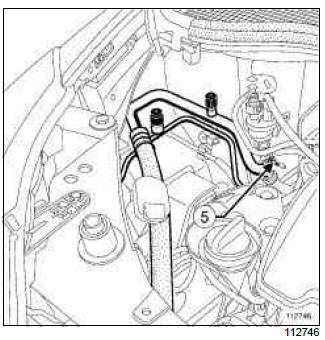

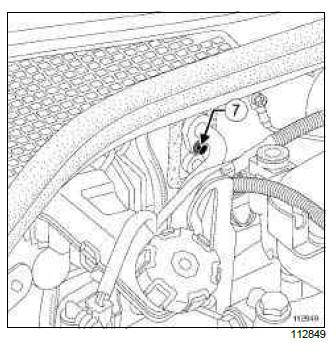

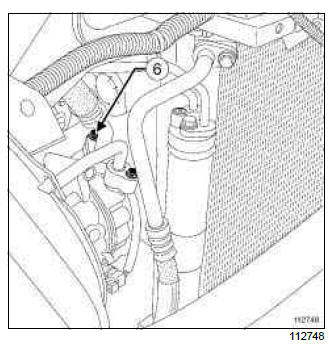

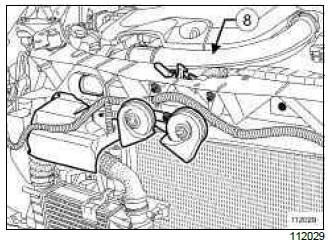

II - REFITTING OPERATION FOR PART CONCERNED

Renault Clio. Expansion valve - compressor connecting pipe: Removal - Refitting

Renault Clio. Expansion valve - compressor connecting pipe: Removal - Refitting

Renault Clio. Expansion valve - compressor connecting pipe: Removal - Refitting

III - FINAL OPERATION

Renault Clio. Expansion valve - compressor connecting pipe: Removal - Refitting

Note: A summary table gives the quantities of refrigerant in the system according to the engine type (see 62A, Air conditioning, Air conditioning: Parts and consumables for the repair, 62A-2).
