Renault Clio: F4R

Renault Clio. Engine wiring

IMPORTANT

Consult the safety and cleanliness advice and operation recommendations before carrying out any repair (see 88A, Wiring harness, Wiring: Precautions for the repair, 88A-5).

WARNING

To prevent damage to the wiring harness when refitting, observe the original routing.

REMOVAL

I - REMOVAL PREPARATION OPERATION

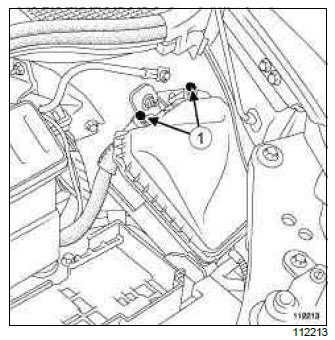

Renault Clio. Engine wiring

II - OPERATION FOR REMOVAL OF PART CONCERNED

WARNING

To prevent any risk of noise, premature wear, short circuits, etc. after the refitting operation, mark the wiring routing and how to connect the connectors.

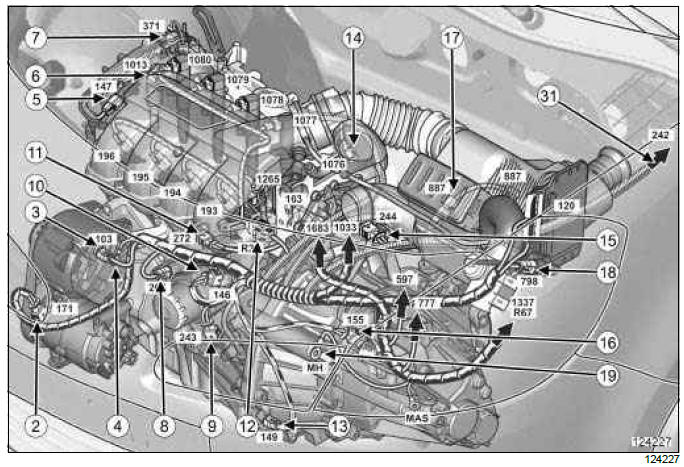

Renault Clio. Engine wiring

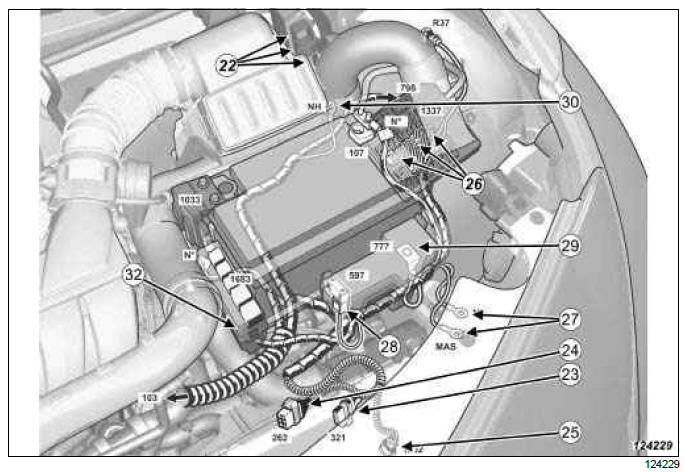

Renault Clio. Engine wiring

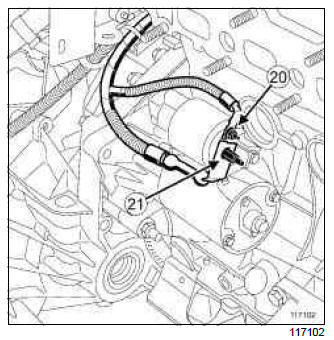

Renault Clio. Engine wiring

WARNING

To prevent any damage during the removal operation, check that the wiring is free from its mountings (retaining clip, plastic clip, adhesive tape, connector, etc.).

REFITTING

I - REFITTING PREPARATION OPERATION

II - REFITTING OPERATION FOR PART CONCERNED

III - FINAL OPERATION.
