Renault Clio: Front half unit: Description

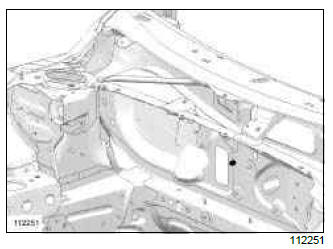

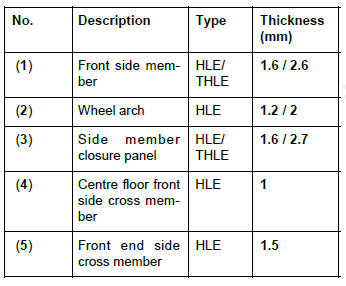

Left-hand side

Renault Clio. Front half unit: Description

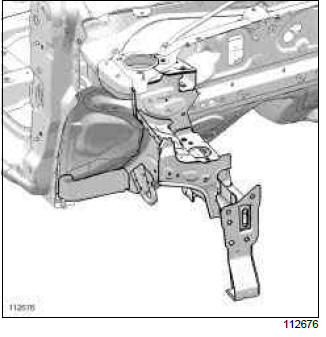

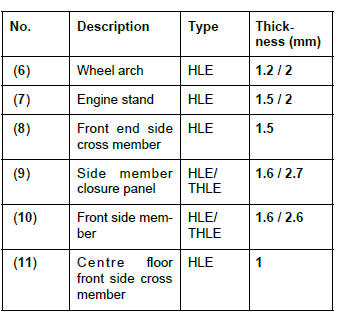

Right-hand side

Renault Clio. Front half unit: Description

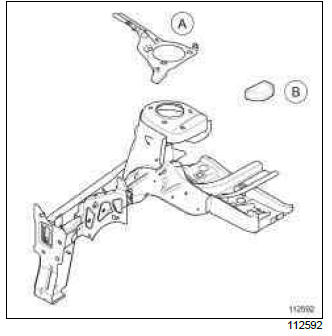

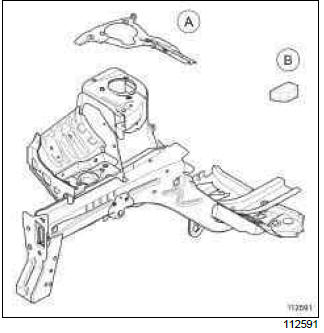

To replace this part, order the heater bulkhead reinforcement (A) and the side member expanding insert (B).

There is only one way of replacing this part:

IMPORTANT

The straightening bench must be used.

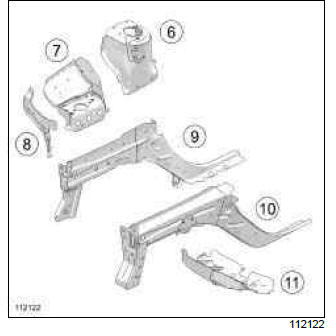

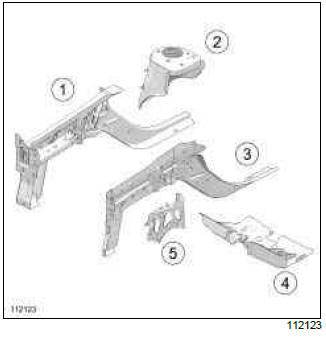

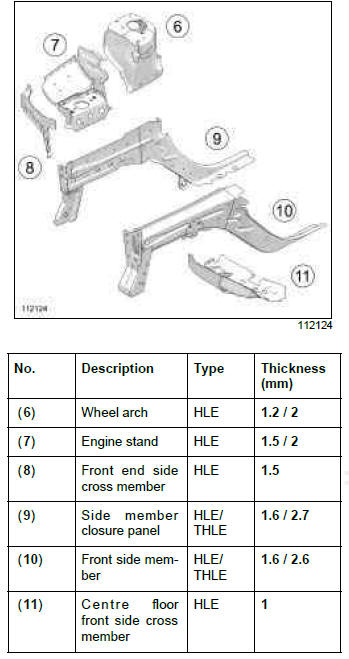

I - COMPOSITION OF THE SPARE PART

Left side

Renault Clio. Front half unit: Description

Renault Clio. Front half unit: Description

Right-hand side, low torque

Renault Clio. Front half unit: Description

Renault Clio. Front half unit: Description

Right-hand side, high torque

Renault Clio. Front half unit: Description

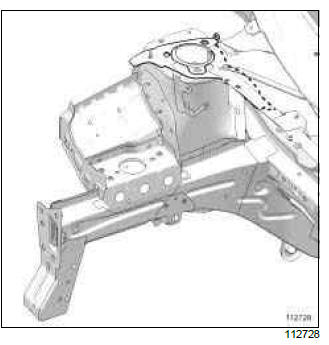

II - PART FITTED

IMPORTANT

For welded connections in three thicknesses, the spot welds on the part replaced should be made in the same place as for the original joint to retain its mechanical properties.

WARNING

If the spot welds cannot be made as they were originally using an electrical spot welding machine, they should be replaced with plug welds after holes have been drilled in the first panel.

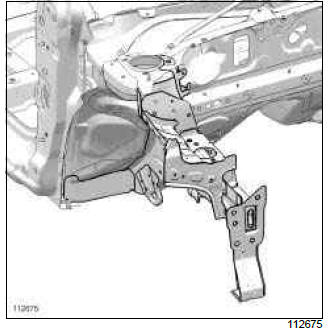

Front half unit, low torque

Renault Clio. Front half unit: Description

Front half unit, high torque

Renault Clio. Front half unit: Description

Renault Clio. Front half unit: Description

Note: The heater bulkhead reinforcement is available separately (see Parts Catalogue).

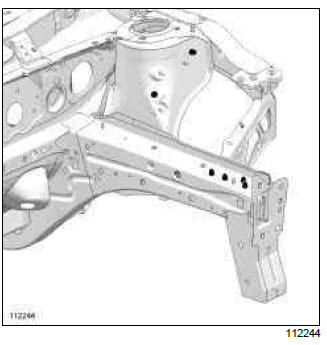

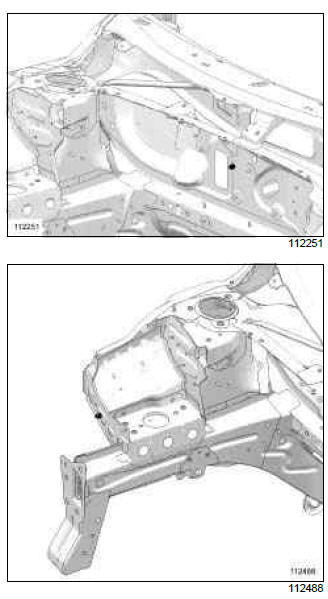

III - POSITIONING OF LOCAL ELECTRICAL EARTHS

Renault Clio. Front half unit: Description

Renault Clio. Front half unit: Description

IMPORTANT

To avoid damaging the vehicle's electric and electronic components, the battery and the earths of any wiring harness near the weld area must be disconnected.

The earth of the welding machine must be placed as close as possible to the weld area.

Subframe rear mounting: General description

IMPORTANT

Use a repair bench to ensure the positioning of the points and the geometry of the axle assemblies.

Note: The information contained in the following describes the general repair procedure for all vehicles having the same design for this part.

Before reading this general information, check that there are no special notes associated with this vehicle.

These special notes will be specified if applicable in other parts of this subsection dealing with the part.

Note: For a detailed description of a particular connection, see MR 400.

DESIGN OF THE STRUCTURAL COMPONENT

Renault Clio. Subframe rear mounting: General description

Front towing eye: General description

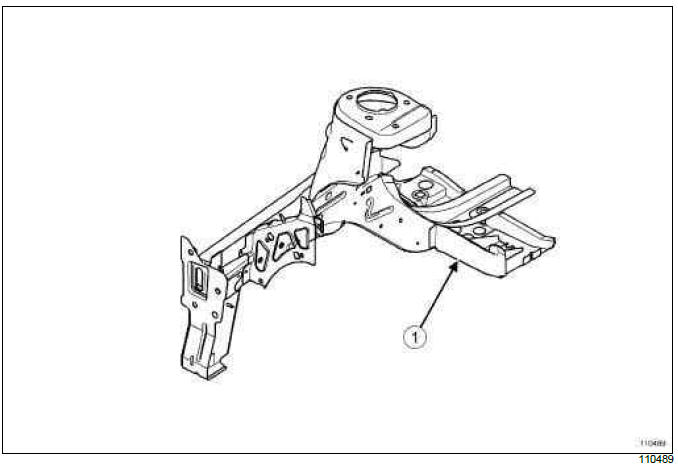

The front sub-frame rear mounting (1) is welded to the front half unit.

Note: The information contained in the following describes the general repair procedure for all vehicles having the same design for this part.

Before reading this general information, check that there are no special notes associated with this vehicle.

These special notes will be specified if applicable in other parts of this subsection dealing with the part.

Note: For a detailed description of a particular connection, see MR 400.

DESIGN OF THE STRUCTURAL COMPONENT

Renault Clio. Front towing eye: General description

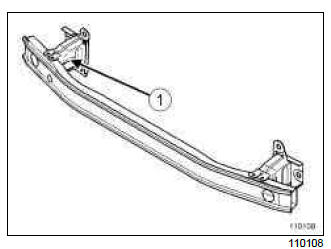

This part is welded to the right hand unit (1) of the frontal impact cross member and therefore cannot be replaced.

Replace the cross member unit if the thread is damaged.

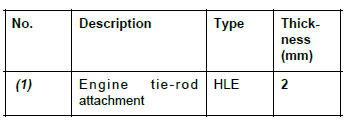

Engine tie-rod attachment: Description

Renault Clio. Engine tie-rod attachment: Description

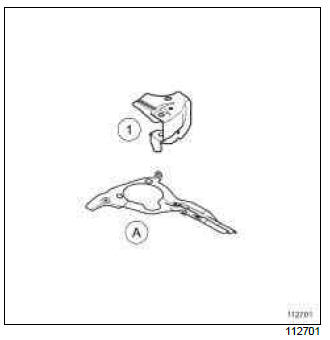

To replace this part, order the heater bulkhead reinforcement (A).

There is only one way of replacing this part:

I - COMPOSITION OF THE SPARE PART

Part supplied on its own.

Renault Clio. Engine tie-rod attachment: Description

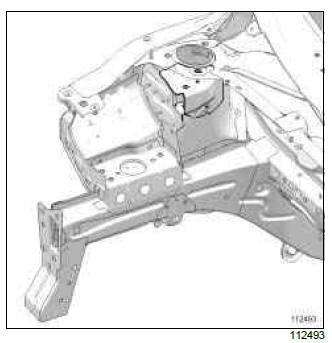

II - PART FITTED

IMPORTANT

For welded connections in three thicknesses, the spot welds on the part replaced should be made in the same place as for the original joint to retain its mechanical properties.

Renault Clio. Engine tie-rod attachment: Description

WARNING

If the spot welds cannot be made as they were originally using an electrical spot welding machine, they should be replaced with plug welds after holes have been drilled in the first panel.

III - POSITIONING OF LOCAL ELECTRICAL EARTHS

WARNING

Renault Clio. Engine tie-rod attachment: Description
