Renault Clio: Front left-hand wiring: Connector access
I - LOCATION OF CONNECTORS
![Renault Clio. Front left-hand wiring](images/books/2116/renault_clio_front_left_hand_wiring_connector_access_4374.jpg)

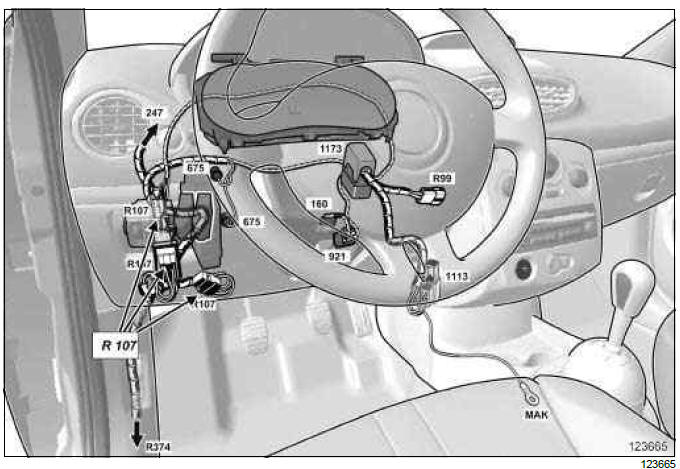

- Connection R 107 (front left-hand wiring/dashboard
wiring connection) composed of two to four connectors
depending on equipment.
![Renault Clio. Front left-hand wiring](images/books/2116/renault_clio_front_left_hand_wiring_connector_access_4375.jpg)

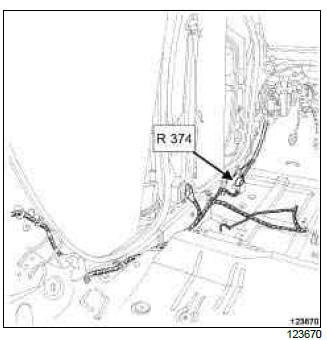

- R 374 connector (front left-hand wiring/rear left-hand
wiring connection).
![Renault Clio. Front left-hand wiring](images/books/2116/renault_clio_front_left_hand_wiring_connector_access_4376.jpg)

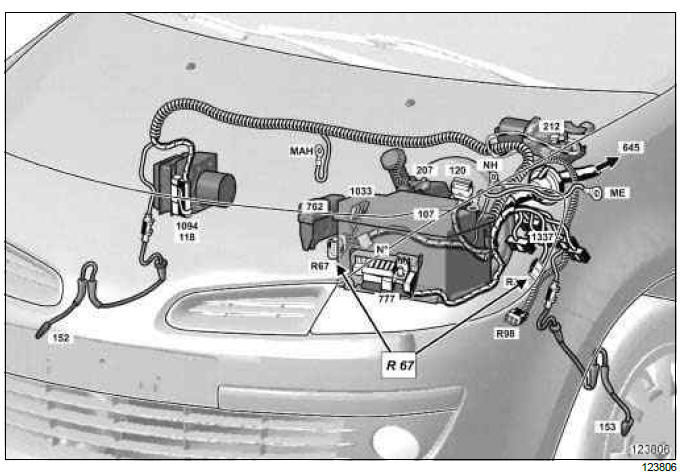

- Connection R 67 (front left-hand wiring/engine wiring
harness connection) composed of two to three
connectors depending on equipment.
![Renault Clio. Front left-hand wiring](images/books/2116/renault_clio_front_left_hand_wiring_connector_access_4377.jpg)

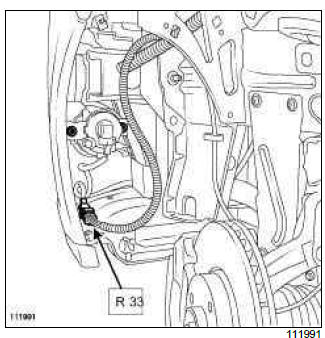

- R 33 connector (front left-hand wiring/front bumper
wiring connection).
II - ACCESS TO CONNECTORS
IMPORTANT
Consult the safety and cleanliness advice and
operation recommendations before carrying out
any repair (see 88A, Wiring harness, Wiring:
Precautions for the repair, 88A-5).
WARNING
To prevent damaging the connectors, consult the
disconnection procedure (see Connector: Disconnection
and reconnection) (Technical Note
6015A, 88A, Wiring).
- Switch off the ignition.
- Disconnect the battery (see 80A, Battery, Battery:
Removal - Refitting, 80A-1).
1 - Access to the R 107 connectors
LEFT-HAND DRIVE
![Renault Clio. Front left-hand wiring](images/books/2116/renault_clio_front_left_hand_wiring_connector_access_4378.jpg)

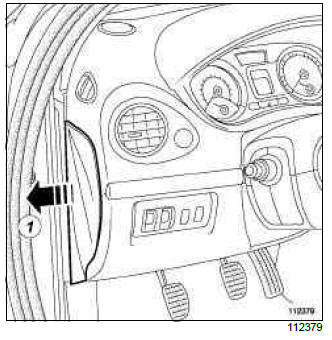

- Remove the dashboard side face (1).
![Renault Clio. Front left-hand wiring](images/books/2116/renault_clio_front_left_hand_wiring_connector_access_4379.jpg)

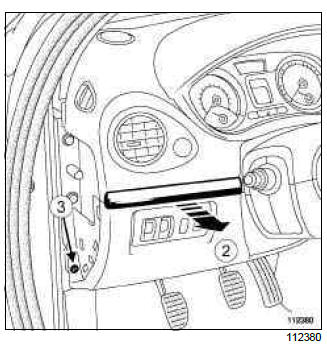

- Remove:
- the dashboard trim piece (2),
- the dashboard lower trim bolt (3).
![Renault Clio. Front left-hand wiring](images/books/2116/renault_clio_front_left_hand_wiring_connector_access_4380.jpg)

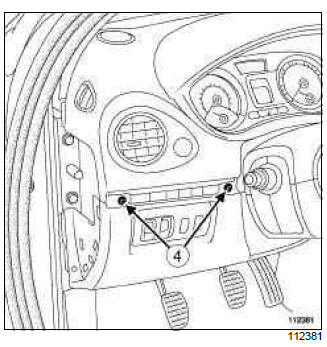

- Remove:
- the dashboard lower trim bolt (4).
- the dashboard lower trim.
![Renault Clio. Front left-hand wiring](images/books/2116/renault_clio_front_left_hand_wiring_connector_access_4381.jpg)

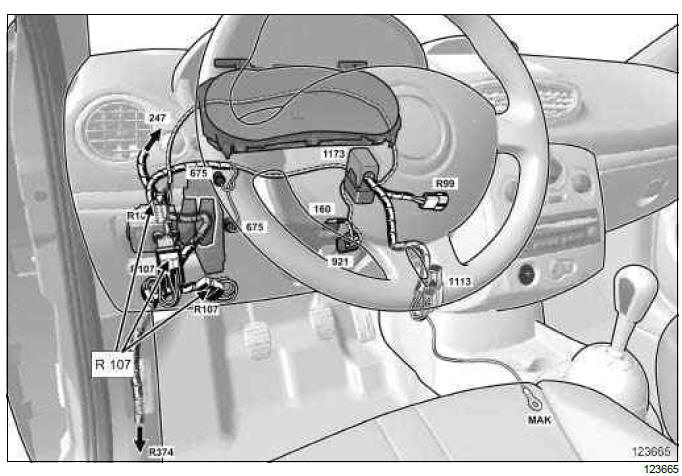

- Disconnect the connectors from connection R 107.
RIGHT-HAND DRIVE
- Remove the glovebox (see Glovebox: Removal -
Refitting) (MR 393, 57A, Interior equipment).
![Renault Clio. Front left-hand wiring](images/books/2116/renault_clio_front_left_hand_wiring_connector_access_4382.jpg)

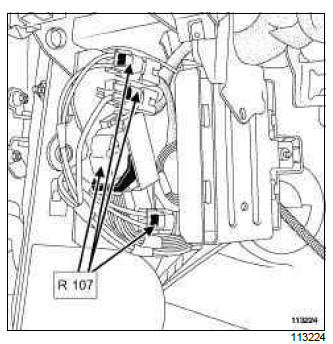

- Disconnect the connectors from connection R 107.
2 - Access to the R 374 connector
- Remove the front left-hand door sill lining (see Front
door sill lining: Removal - Refitting) (MR 393,
71A, Body internal trim).
![Renault Clio. Front left-hand wiring](images/books/2116/renault_clio_front_left_hand_wiring_connector_access_4383.jpg)

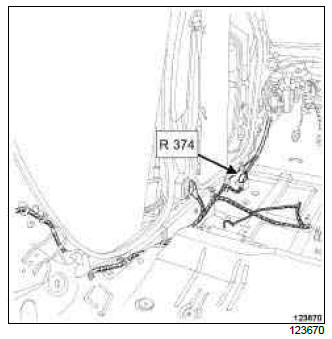

- Disconnect the R 374 connector.
3 - Access to the R 67 connector
![Renault Clio. Front left-hand wiring](images/books/2116/renault_clio_front_left_hand_wiring_connector_access_4384.jpg)

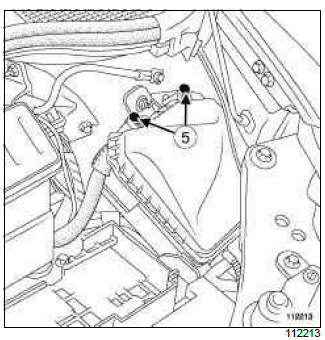

- Remove:
- the bolts (5) from the Protection and Switching Unit
cover,
- the Protection and Switching Unit cover.
![Renault Clio. Front left-hand wiring](images/books/2116/renault_clio_front_left_hand_wiring_connector_access_4385.jpg)

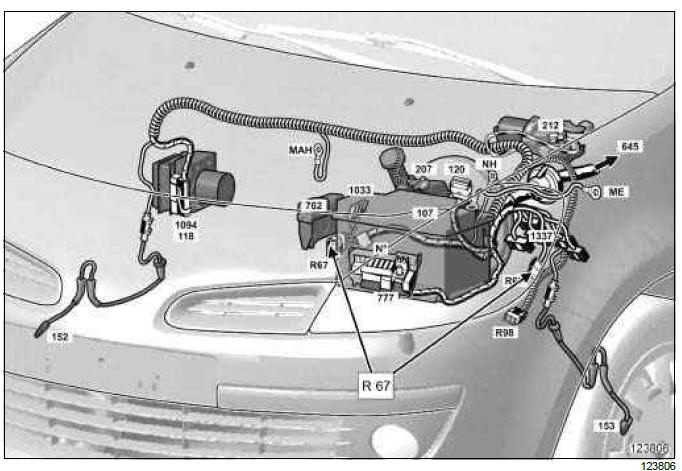

- Disconnect the connectors from connection R 67.
4 - Access to the R 33 connector
- Remove the front section of the front left-hand wheel
arch liner (see Front wheel arch liner: Removal -
Refitting) (MR 393, 55A, Exterior protection).
![Renault Clio. Front left-hand wiring](images/books/2116/renault_clio_front_left_hand_wiring_connector_access_4386.jpg)

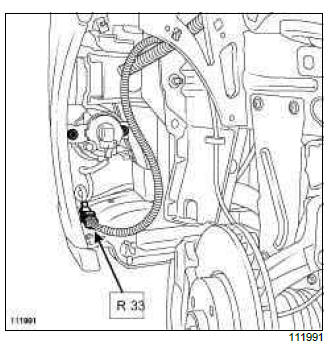

- Disconnect the R 33 connector.
