Renault Clio: Fuel circuit: Operating diagram
Renault Clio III (2005-2013) Service Manual / Engine And Peripherals / Fuel Supply / Fuel circuit: Operating diagram
D4F or F4R or K4J or K4M

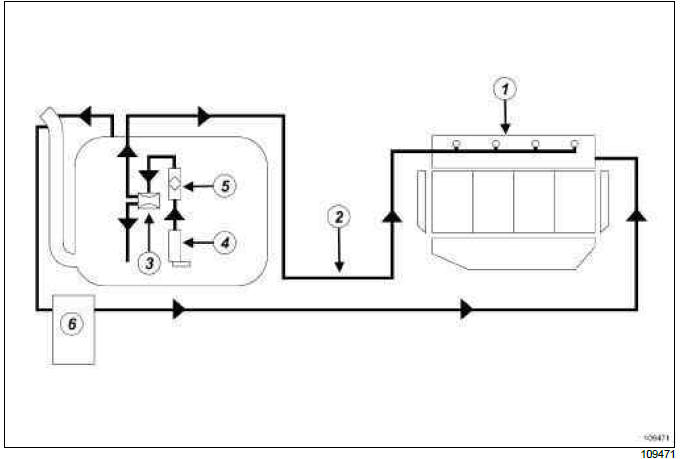

Operating diagram of the petrol supply circuit ( " pump - sender - fuel filter " assembly).
The fuel system does not have a return.
The fuel pressure does not vary with engine load.
The circuit comprises:
- a rail (1) without a return pipe union and without a supply pressure regulator,
- a single pipe (2) coming from the tank,
- a " pump - sender - fuel filter " petrol supply assembly fitted with a pressure regulator (3), pump (4) and fuel filter (5) (all located in the tank),
- a fuel vapour recirculation tank (6).
Petrol supply circuit: Operating diagram
M4R

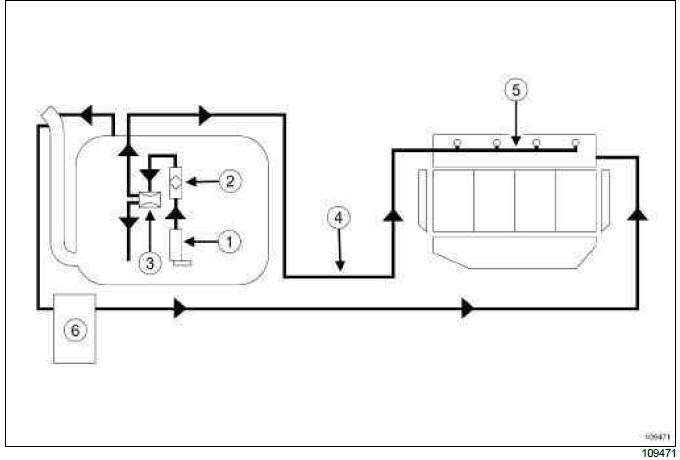

Operating diagram of the petrol supply circuit
The fuel supply circuit does not have a return.
The fuel pressure does not vary with engine load.
The circuit comprises:
- a " pump-sender-filter " fuel supply assembly located in the tank; it is equipped with the pump (1), the filter (2) and the pressure regulator (3),
- a single pipe (4) coming from the tank,
- a rail (5) with no return pipe and no pressure regulator,
- a petrol vapour recirculation reservoir (6) connected to the inlet manifold by a pipe and a solenoid valve.
