Renault Clio: Interior lighting
Renault Clio IV (2014-2019) Owners Manual / Your comfort / Interior lighting
Courtesy light
Press switch 2 for:
- permanent lighting;
- intermittent lighting, which comes on when a door is opened. It only switches off after a time delay and when the doors concerned have been closed correctly;
- lighting switches off immediately.

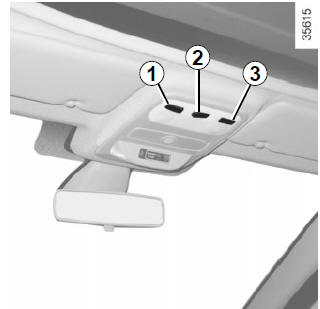

Map reading lights
Press switch 1 for the driver, 3 for the front passenger.

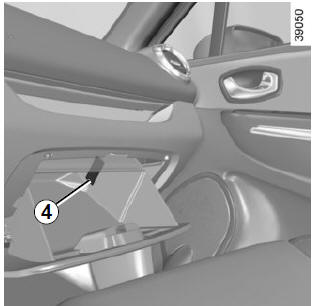

Glovebox light 4
Light 4 comes on when the cover is opened.

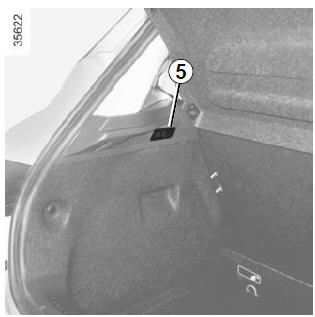

Boot light 5
Light 5 comes on when the boot is opened.
| Unlocking and opening the doors or tailgate switches on the timed courtesy lights and lights. |
