Renault Clio: Passenger compartment storage space and fittings

Renault Clio IV (2014-2019) Owners Manual / Your comfort / Passenger compartment storage space and fittings

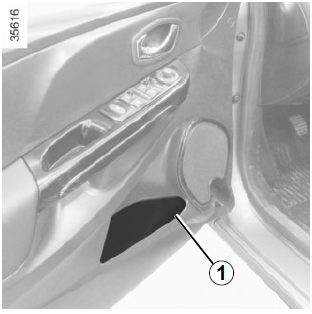

Front door storage pockets 1

Renault Clio. Front door storage pockets


They can hold a 1.5 litre bottle.

Nothing should be placed on the floor area in front of the driver as such objects may slide under the pedal during braking manoeuvres, thus obstructing its use.

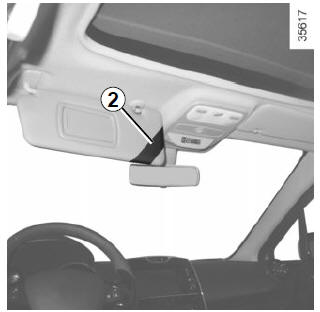

Sun visor storage 2

Renault Clio. Sun visor storage


This can be used for storing motorway tickets, cards, etc.

Ensure that no hard, heavy or pointed objects are placed in the “open” storage compartments in such a way that they may fall onto passengers during sudden turning, braking or in the event of an accident.

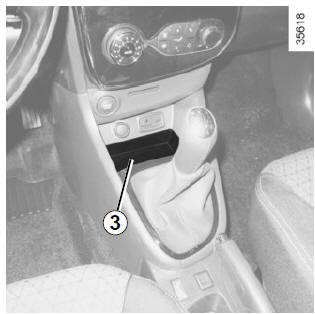

Centre console storage compartment 3

Renault Clio. Centre console storage compartment

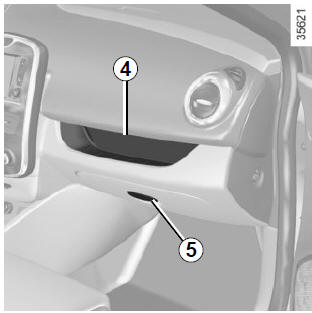

Passenger storage compartment 4

Renault Clio. Passenger storage compartment


Passenger storage compartment 5

Pull handle 5 to open it.

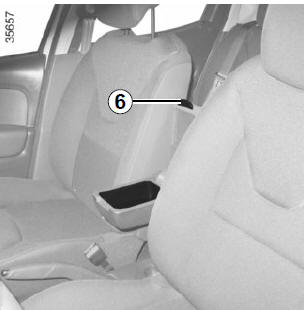

Armrest storage compartment

Renault Clio. Armrest storage compartment


With the armrest in its lowered position, press button 6 and lift armrest cover.

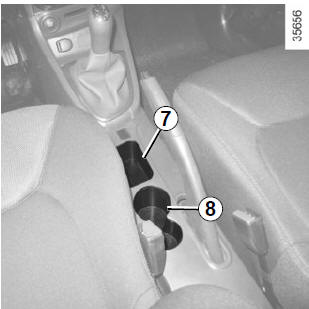

Storage compartment 7

Renault Clio. Storage compartment


Cup holders 8

This can be used for storing a mobile ashtray, cup holder, etc.

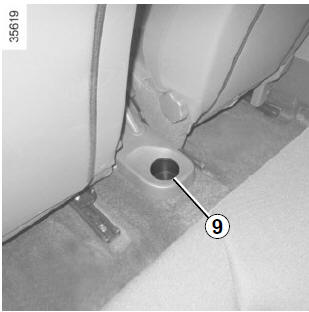

Rear centre console storage compartment 9

Renault Clio. Rear centre console storage compartment


This can be used for storing a mobile ashtray, cup holder, etc.

When turning corners, accelerating or braking, ensure that the receptacle being held by the cup holder is not dislodged.

There is a risk of injury if hot liquid escapes.

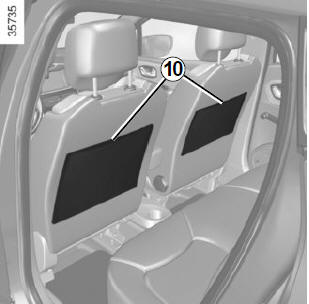

Front seat storage pockets 10

Renault Clio. Front seat storage pockets

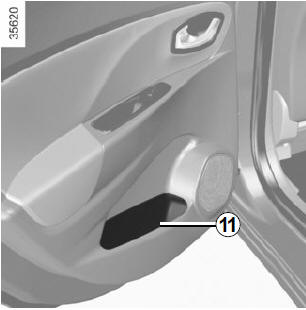

Rear door storage compartment 11

Renault Clio. Rear door storage compartment


Ensure that no hard, heavy or pointed objects are placed in the “open” storage compartments in such a way that they may fall onto passengers during sudden turning, braking or in the event of an accident.

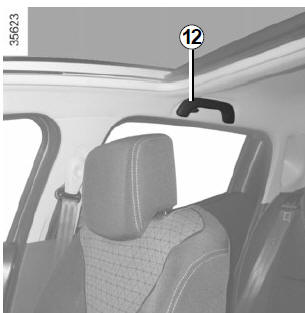

Grab handle 12

Renault Clio. Grab handle


This offers support and can be held when the vehicle is being driven. Do not use it for getting into or out of the vehicle.
