Renault Clio: Rear bench seat: functions

Position for use

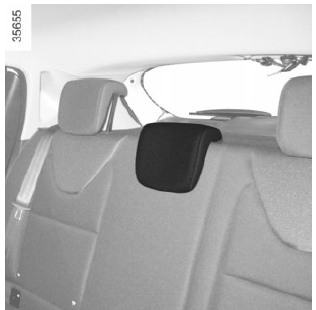

Renault Clio. Position for use


Raise the headrest as far as possible to use it in the high position. Check that it is correctly locked.

Storage position

Press button A and lower the headrest completely.

When the headrest is set at the lowest position, this is for storage only. It should not be in this position when a seat is occupied.

To raise the headrest

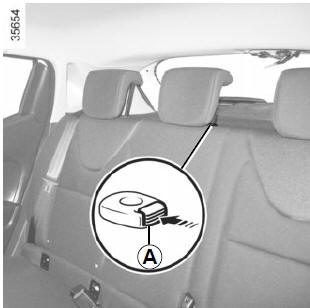

Renault Clio. To raise the headrest


Raise the headrest as far as it will go, then press button A and remove the headrest.

To refit the headrest

Enter the rods in their housing and push down the headrest until it locks to use it in the high position. Check that it is correctly locked.

Renault Clio. To refit the headrest


The headrest is a safety component; check that it is fitted and in the correct position.

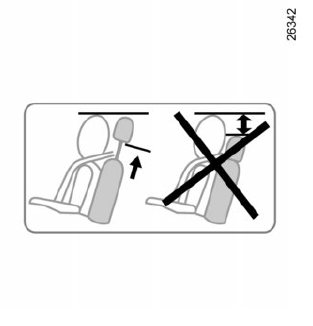

The top of the headrest should be as close as possible to the top of the head.

To fold down the seatback

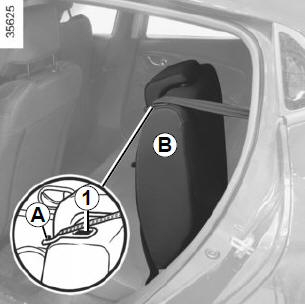

Renault Clio. To fold down the seatback


Ensure that the front seats are far enough forward.

Lower the headrests fully.

Place the seat belts in their guides A.

Press button 1 and lower the seatback B.

Before moving the seatback, put the seat belt in belt guide A to avoid damaging it

To replace the seatback, proceed in the reverse order to removal.

Refit the seatback and click it back into place.

For safety reasons, carry out any adjustments when the vehicle is not being driven.

The configuration of the two-seat bench with the small seatback B pulled down, does not allow the central seat to be used as it would be impossible to buckle the seat belt (belt buckles inaccessible).

When moving the rear seats, ensure that nothing obstructs the anchorage points (passenger’s arm or leg, a pet, gravel, cloth, toys, etc.).

When refitting the seatback, make sure it is correctly locked in place.

If seat covers are fitted, make sure these do not prevent the seatback latch from locking in.

Make sure that the seat belts are positioned correctly.

Reposition the headrests.
