Renault Clio: Lateral acceleration and yaw sensor: Removal - Refitting
Renault Clio III (2005-2013) Service Manual / Chassis / Anti-lock Braking System / Lateral acceleration and yaw sensor: Removal - Refitting
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Disconnect the battery (see Battery: Removal - Refitting) (MR 392, 80A, Battery).
- Remove the centre console (see Centre console: Removal - Refitting) (MR 393, 57A, Interior equipment).
II - OPERATION FOR REMOVAL OF PART CONCERNED
- Cut the carpet using a sharp tool.

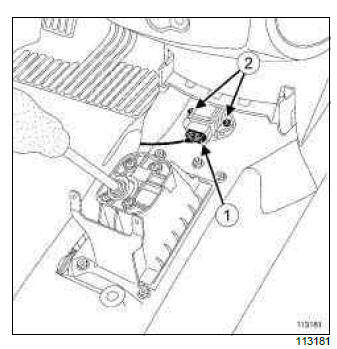

- Disconnect the connector (1).
- Remove:
- the mounting bolts (2) from the lateral acceleration and yaw sensor,
- the sensor.
REFITTING
I - REFITTING PREPARATIONS OPERATION
WARNING

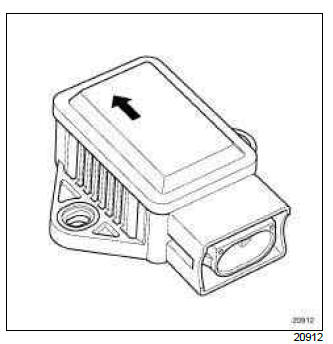

The sensor must be fitted facing the vehicle's direction of travel (as shown by the arrow).
Be sure to replace any sensor which has sustained an impact.
II - REFITTING OPERATION FOR PART CONCERNED
- Refit:
- the sensor,
- yaw speed and transverse acceleration sensor mounting bolts.
- Connect the connector.

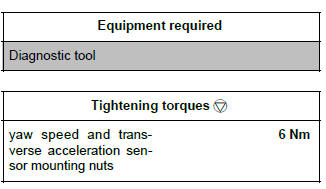

- Torque tighten the yaw speed and transverse acceleration sensor mounting nuts (6 Nm).

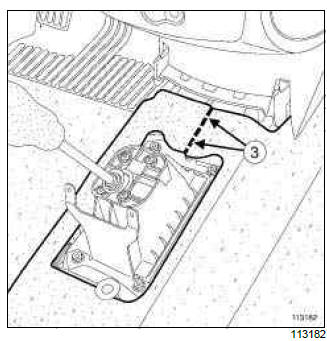

- Fit the carpet at (3) with PIG'S SNOUT CLIPS (Part no. 77 01 047 751).
III - FINAL OPERATION.
- Refit the centre console (see Centre console: Removal - Refitting) (MR 393, 57A, Interior equipment).
- Connect the battery (see Battery: Removal - Refitting) (MR 392, 80A, Battery).
IMPORTANT
Be sure to confirm the repair with a road test and a check using the Diagnostic tool.
