Renault Clio: Lifting eyes: Removal -
Refitting
IDENTIFICATION
Parts description

- timing end lifting eye
- timing end lifting eye mounting
bolt
- gearbox side lifting eye
- gearbox side lifting eye mounting
bolt

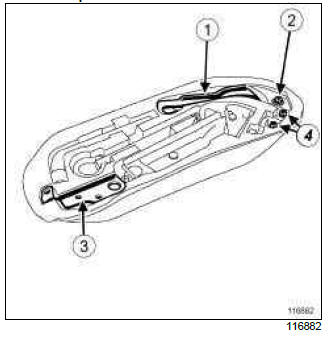

- The lifting eyes and their mounting bolts are in the
tool tray under the carpet in the bottom of the luggage
compartment.
Note:
The lifting eyes fitted must be removed and put
back in the vehicle once the operation is completed.
REMOVAL - REFITTING
I - FITTING THE TIMING END LIFTING EYE

- Obtain the timing end lifting eye and its mounting
bolt.

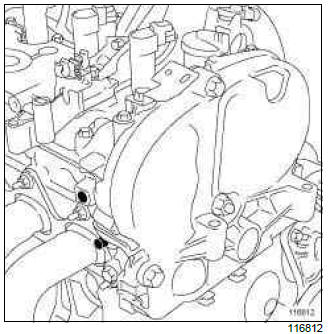

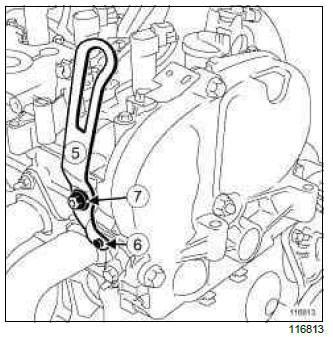

- Position the lifting eye (5) in the cylinder head centring device (6).
- Tighten the lifting eye mounting bolt (7).
II - REMOVING THE TIMING END LIFTING EYE
- Remove:
- the timing end lifting eye mounting bolt,
- the lifting eye on the timing end.
- Put the lifting eye and mounting bolt back in the tool
tray.
III - FITTING THE GEARBOX SIDE LIFTING EYE.

- Obtain the lifting eye and its mounting bolt.

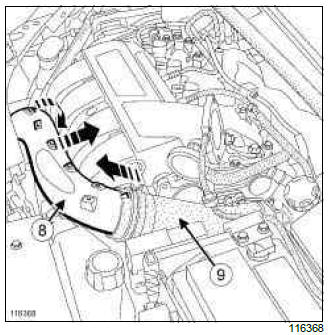

- Remove the air inlet duct (8) :
- by unclipping it from the front end panel,
- by rotating it and disconnecting it.
- Disconnect the duct (9) :
- air resonator side,
- air filter unit side.

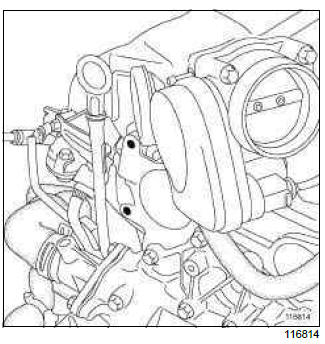

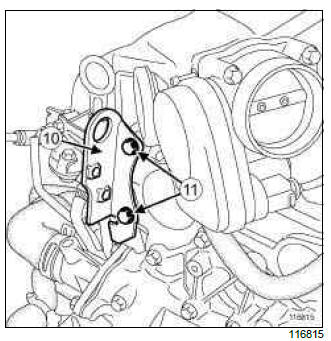

- Fit the timing end lifting eye (10).
- Tighten the timing end lifting eye mounting bolts (11).
IV - REMOVING THE GEARBOX SIDE LIFTING EYE
- Remove:
- the gearbox side lifting eye mounting bolts,
- the gearbox side lifting eye.
- Put the lifting eye and mounting bolts back in the tool
tray.
