Renault Clio: Tyre pressure: Identification
![Renault Clio. Tyre pressure: Identification](images/books/2116/renault_clio_tyre_pressure_identification_3134.jpg)
I - INFLATION
WARNING
If checking the tyre pressure when hot, increase the
recommended pressure by 0.2 to 0.3 bar.

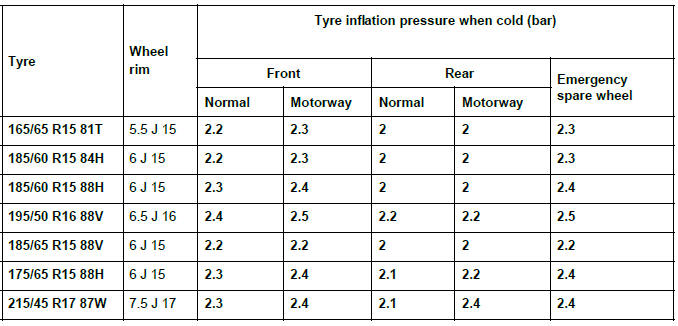

B85 or C85 or S85
![Renault Clio. Tyre pressure: Identification](images/books/2116/renault_clio_tyre_pressure_identification_3135.jpg)
The pressure values given are recommendations when
cold.

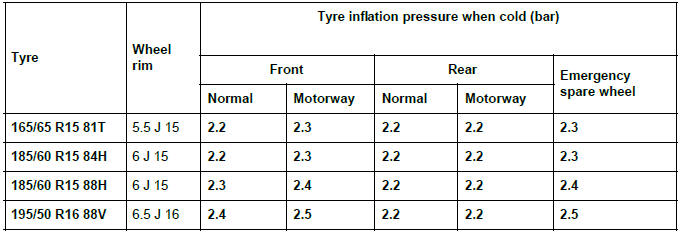

K85
![Renault Clio. Tyre pressure: Identification](images/books/2116/renault_clio_tyre_pressure_identification_3136.jpg)
II - CONFORMITY CHECK AND ADJUSTMENT
If the tyre size is changed, calibrate the electric power-assisted
steering computer using the Diagnostic tool
(see MR 394 Fault finding, 36B, Electric power-assisted
steering, Replacement of components).
Wheel rim offset:
- steel wheel rim: 43 mm,
- alloy wheel rims: 50 mm.
For information on fitting chains, see " Driver's handbook ".

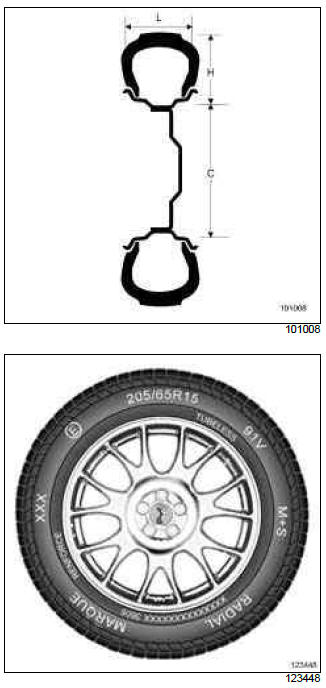

Tyres: Identification

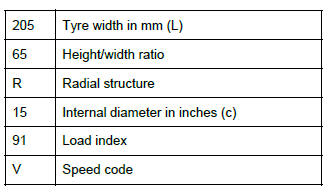

Example of a tyre identification mark: 205/65 R 15 91
V.
![Renault Clio. Tyres: Identification](images/books/2116/renault_clio_tyre_pressure_identification_3137.jpg)
![Renault Clio. Tyres: Identification](images/books/2116/renault_clio_tyre_pressure_identification_3138.jpg)

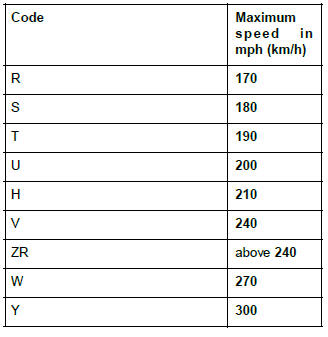

Speed code table:
![Renault Clio. Tyres: Identification](images/books/2116/renault_clio_tyre_pressure_identification_3139.jpg)
