Renault Clio: Manual gear control: Adjustment
Renault Clio III (2005-2013) Service Manual / Chassis / Mechanical Component Controls / Manual gear control: Adjustment
TL4
ADJUSTMENT
ADJUSTMENT OF SELECTION CABLE DURING A REMOVAL OPERATION
1 - Passenger compartment
- Shift the selector lever to third gear.

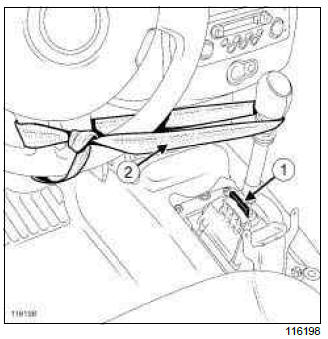

- Fit a shim (1) (6 mm between the locking ring and reverse gear interlock on the selector lever.
- Use a strap (2) to immobilise the lever against the shim in third gear position.
2 - Engine compartment
- Position the gear lever on the gearbox in "third gear engaged" position.

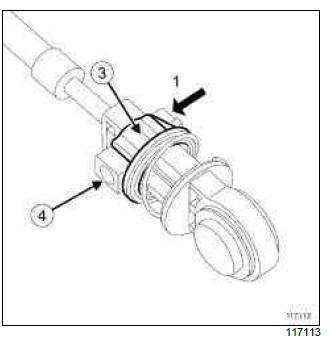

- Unlock the selector cable adjustment clip by compressing
the lock ring (3) and push the orange clip
(4) upwards
(1). - Adjust the length of the cable accordingly and fit it onto the gear selection lever ball joint.

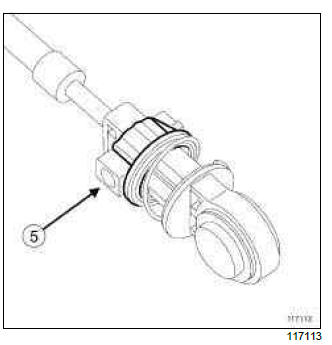

- Lock the cable by pressing on the orange clip (5).
- Check that gear selection is correct.
